Quick Details
-
Brand Name:
-
DingTai
-
Fork Length:
-
1220-1520mm
-
Fork Width:
-
550mm 685mm, 550mm 685mm
-
Overall Dimensions:
-
1600mm*685mm*1450mm, 550mm*1500mm*770mm
-
Weight (KG):
-
3 kg
-
Product Name:
-
1.5 Ton Hand mini electric lifter stacker forklift
-
Key words:
-
large battery full electric stacker
-
Model:
-
DF and BF
-
Color:
-
Yellow as your order
-
Brand:
-
DingTai
-
Loading Capacity:
-
3000kg
-
Fork Size:
-
customizable
-
wheel:
-
Nylon or PU
Quick Details
-
Min. Lifting Height:
-
90mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DingTai
-
Fork Length:
-
1220-1520mm
-
Fork Width:
-
550mm 685mm, 550mm 685mm
-
Overall Dimensions:
-
1600mm*685mm*1450mm, 550mm*1500mm*770mm
-
Weight (KG):
-
3 kg
-
Product Name:
-
1.5 Ton Hand mini electric lifter stacker forklift
-
Key words:
-
large battery full electric stacker
-
Model:
-
DF and BF
-
Color:
-
Yellow as your order
-
Brand:
-
DingTai
-
Loading Capacity:
-
3000kg
-
Fork Size:
-
customizable
-
wheel:
-
Nylon or PU

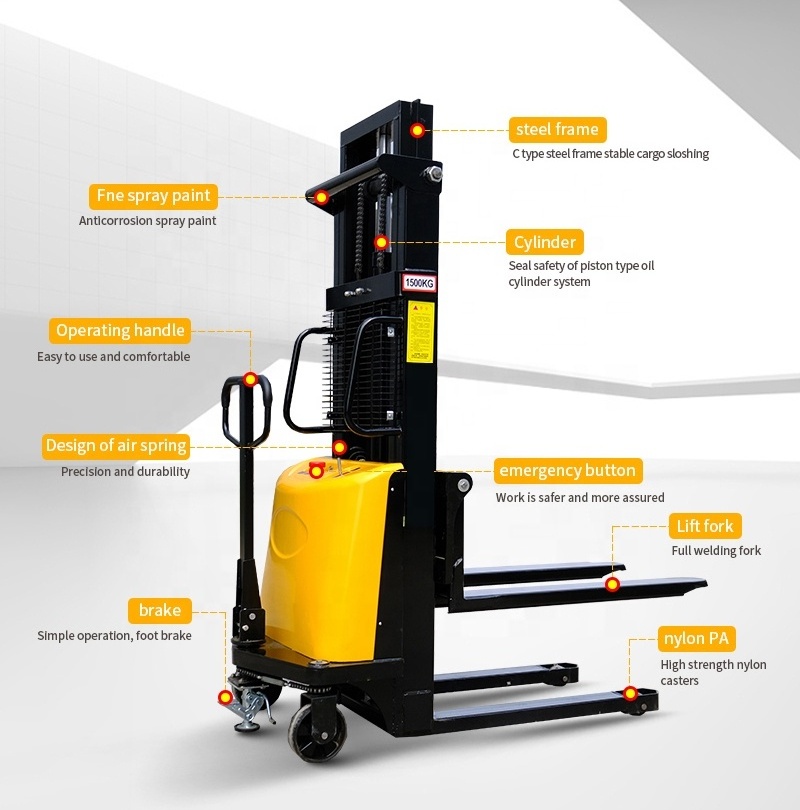

Portable Electric Forklift 1.5 Ton Hand mini electric lifter stacker forklift
Details Images
|
Model Number
|
Unit
|
CTD-10
|
CTD-15
|
CTD-20
|
||
|
Capacity
|
kg
|
1000
|
1500
|
2000
|
||
|
Load Center (C)
|
mm
|
450
|
|
|
||
|
Lifting height（H2）
|
mm
|
1600/2000/2500/3000/3500
|
|
|
||
|
Mast lowered height (H)
|
mm
|
2080/1680/1880/2080/2280
|
|
|
||
|
Min Fork Height (H1)
|
mm
|
90
|
|
|
||
|
Fork Length (L1)
|
mm
|
1000
|
|
|
||
|
Fork width
|
mm
|
160
|
|
|
||
|
Overall length (L)
|
mm
|
1580
|
|
|
||
|
Fork adjustbale width (E)
|
mm
|
680
|
|
|
||
|
Overall Width (B)
|
mm
|
800
|
|
|
||
|
Min. Turning Radius(Wa)
|
mm
|
1400
|
|
|
||
|
Steering wheel
|
mm
|
180*50
|
|
|
||
|
Bearing Wheel
|
mm
|
80*60
|
|
|
||
|
Whell Base (Y)
|
mm
|
1185
|
|
|
||
|
Lifting Motor
|
v/kw
|
12/1.6
|
|
|
||
|
Battery
|
v/Ah
|
12/120
|
|
|
||
|
Lifting speed,no load/full load
|
mm/s
|
130/80
|
|
|
||
|
Lowering speed
|
/
|
Manual
|
|
|
||
