The punch group is composed of highly sensitive sensor, powerful hydraulic press force, strong die cut by slow-speed wire and
accompany lubrication route.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V 3phases Or as request
-
Power:
-
11.5-14.5kw
-
Dimension(L*W*H):
-
About 4.5m*0.8m*1.3m
-
Weight:
-
4000 kg
-
Dimple hole:
-
yes
-
Chamfer cut:
-
yes
-
Web notch:
-
yes
-
Lip cut:
-
yes
-
Service hole:
-
yes
-
Swage:
-
yes
-
Shearing:
-
yes
-
Flange cut:
-
option
-
Triple holes:
-
option
-
Grouting hole:
-
option
Quick Details
-
Production Capacity:
-
300-900m/h
-
Place of Origin:
-
Guangdong China
-
Brand Name:
-
FrameMac
-
Voltage:
-
380V 3phases Or as request
-
Power:
-
11.5-14.5kw
-
Dimension(L*W*H):
-
About 4.5m*0.8m*1.3m
-
Weight:
-
4000 kg
-
Dimple hole:
-
yes
-
Chamfer cut:
-
yes
-
Web notch:
-
yes
-
Lip cut:
-
yes
-
Service hole:
-
yes
-
Swage:
-
yes
-
Shearing:
-
yes
-
Flange cut:
-
option
-
Triple holes:
-
option
-
Grouting hole:
-
option
Product Overview

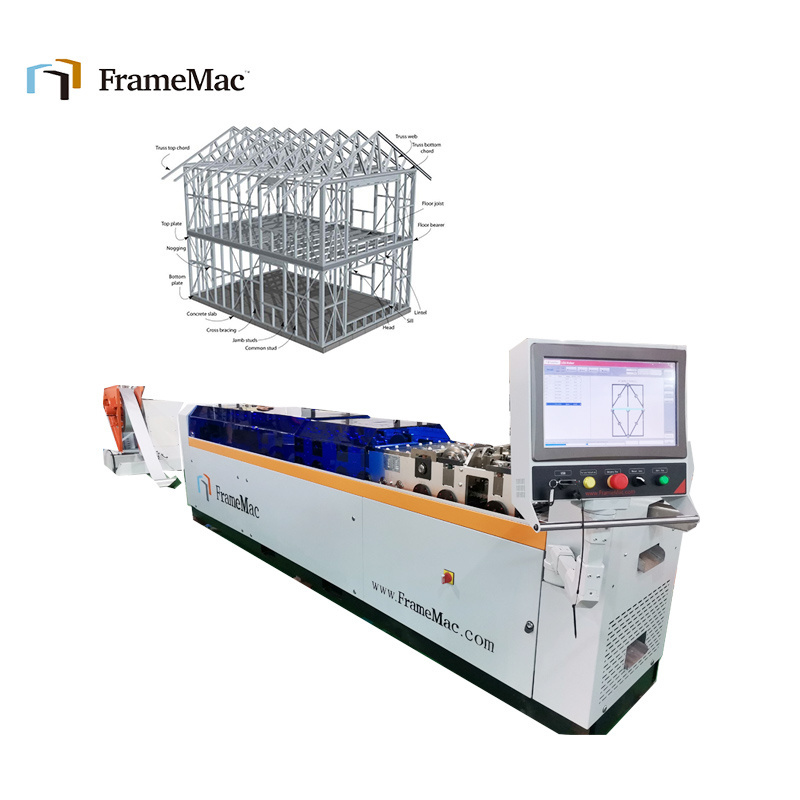

Light Steel Framing Machine
Light Steel Framing Machine
produces c channel stud and tracks for light gauge steel framing building, by recognizing output files of BIM design software.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
0
|
Nc file
|
CSV/XML or other
|
|
1
|
Web
|
150mm /6inch
|
|
2
|
Thickness
|
0.7-1.2mm
|
|
3
|
Production speed
|
600m/s
|
|
4
|
Accuracy
|
0.5mm
|
|
5
|
Total Power
|
11.5kw
|
|
6
|
Inkjet printer
|
2 sides
|
|
7
|
Decoiler
|
2 tons
|
|
8
|
Machine weight
|
3800kg
|
FEATURES AT A GLANCE
Smart punching
Roll forming part
The roller stations gap can be auto adjusted for steel strips in different thickness, precisely aligned on steady bench , safely
shell shield.
shell shield.
Inkjet printer
The printer with a smart chip, automatically print the code on both side of steel frame ,same as detailing drawings, which should
be referred to installed. This shorten precious time of both production and installation offsite or onsite.
be referred to installed. This shorten precious time of both production and installation offsite or onsite.
Industrial computer
This industrial computer is installed with Lilux system, which can prevent from Microsoft virus. Its communication type is
EtherCAT. The most core value is instantly step BIM file to manufacturing proceed.
EtherCAT. The most core value is instantly step BIM file to manufacturing proceed.
COMPACT DIMENSIONS
Occupying space of only 10m x 1.5m , this production line can complete uncoiling , hole punching , code printing, auto cutting-off with CNC control.
