Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Rajeyn
-
Type:
-
Infrared Sensor
-
Power Supply:
-
DC 4.3~6.4V
-
Static power:
-
≤0.15mw(≤25uA)
-
Max output current:
-
800mA
-
Shock resistance:
-
Hit or beat is not allowed
-
Feature:
-
Custom
Quick Details
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Sensor faucet, sensor flush
-
Design Style:
-
Modern
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Rajeyn
-
Type:
-
Infrared Sensor
-
Power Supply:
-
DC 4.3~6.4V
-
Static power:
-
≤0.15mw(≤25uA)
-
Max output current:
-
800mA
-
Shock resistance:
-
Hit or beat is not allowed
-
Feature:
-
Custom

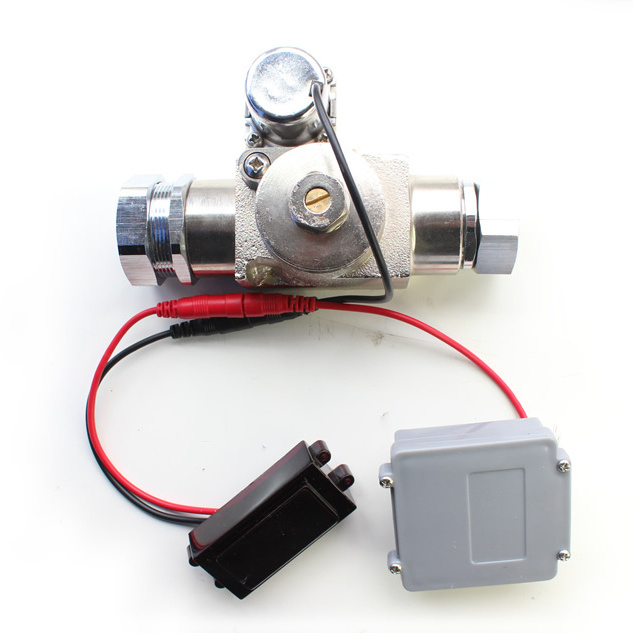

Auto Toilet Flush Proximity Distance IR sensor
| Type | Infrared Sensor Set |
| Power supply | DC 4.3~6.4V |
| Static power | ≤0.15mw(≤25uA) |
| Default sensor range | 280mm (faucet) |
| 760mm (urinal) | |
| 650mm (toilet) | |
| Sensor range | 180mm-380mm (faucet) |
| 400mm-800mm (urinal) | |
| 400mm-800mm (toilet) | |
| Sensor range error | ±10% of the rated sensor range |
| Max output current | 800mA |
| Output pulse width | 35ms |
| Low voltage alarm | Working voltage≤4.4±0.2, sensor alarm |
| Security stop | 60s |
| Shock resistance | Hit or beat is not allowed |
| Sensor life circle | 500,000 circles |
| National Patent | ZL2007200068368 |
| Warranty | One Year |
Product Feature
1) There are four different working modes in one PCB/Sensor, including sensor faucet, sensor urinal, sensor toilet and sensor shower, which can be automatically switched by a remote controller.
2) Adjustable sensor distance and flush duration by remote controllers.
3) Low power consumption.4AA alkaline batteries life circle is about 60,000, lasting about 1.5 years.
4) Glue potting with strong moistureproof function.
5) High anti-interference and anti-vibration performance.
6) We have more than 50 different sensor eyes and different wires for selection.
