Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ cad
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CS
-
Marking Head Brand:
-
sino galvo
-
Weight (KG):
-
120 KG
-
Marking Area:
-
110X110mm 150X150mm 175X175mm 200X200mm 300X300mm
-
Wave length of laser:
-
1064nm
-
Laser sources:
-
Fiber module
-
Laser Head:
-
Scanning head
-
Minimal character:
-
0.01mm
-
Marking speed:
-
≤7000mm/s
-
Repeated accuracy:
-
0.0025mm
-
Cooling ways:
-
Force-air Cooling
-
Power supply:
-
AC220V/ 50Hz/2kVA
-
MOQ:
-
1 Set
-
After Warranty Service:
-
Video technical support
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZ cad
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CS
-
Marking Head Brand:
-
sino galvo
-
Weight (KG):
-
120 KG
-
Marking Area:
-
110X110mm 150X150mm 175X175mm 200X200mm 300X300mm
-
Wave length of laser:
-
1064nm
-
Laser sources:
-
Fiber module
-
Laser Head:
-
Scanning head
-
Minimal character:
-
0.01mm
-
Marking speed:
-
≤7000mm/s
-
Repeated accuracy:
-
0.0025mm
-
Cooling ways:
-
Force-air Cooling
-
Power supply:
-
AC220V/ 50Hz/2kVA
-
MOQ:
-
1 Set
-
After Warranty Service:
-
Video technical support
Products Description
Machine Desciption

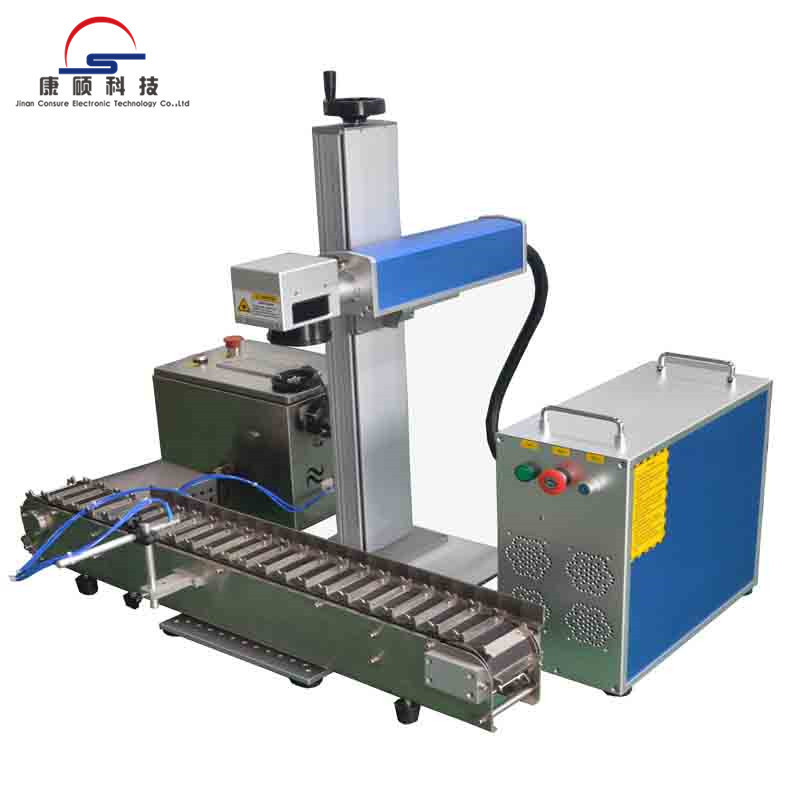

Fiber laser marking machine designed to easy-move equipment, air-cooling, compact machine, Perfect output beam quality, high reliability, no consumables, maintenance-free. Long life Working. Import Germany IPG fiber laser, the international latest, most reliable structure, small size, power consumption is small, no high-voltage without large water-cooled system. Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high, high-speed, without distortion.
Main Feature
1.The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2.Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3.Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4.Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
Technical Parameters
|
Type specification
|
CS-FD20 CS-FD30 CS-FD50
|
|
Wave length of laser
|
1064nm
|
|
Laser repetition frequency
|
20kHz~100kHz
|
|
Laser power
|
20W 30W 50W
|
|
Marking scope
|
70*70mm 110*110 mm 150*150mm 175*175mm 200*200mm 250*250mm 300*300mm optional
|
|
Laser sources
|
Fiber module
|
|
Laser Head
|
Scanning head
|
|
The minimum focus facula diameter
|
20μm
|
|
Minimal character
|
0.01mm
|
|
Marking speed
|
≤7000mm/s
|
|
Repeated accuracy
|
0.0025mm
|
|
Cooling ways
|
Force-air Cooling
|
|
Power supply
|
220V/ 50Hz/2kVA
|
|
Process Material
|
All kinds of metal and part of Non-metal Materials
|
|
Support format
|
PLT, BMP, DXF, JPG, TIF, AI etc
|
|
Package
|
Standard Crate for export
|
|
Package Size and Gross Weight
|
92CM L X 52CM W X 86CM H 70KG
|
Machine configurations
Controller card
Brand Name: Beijing JCZ
Support Rotary
Software: Ez cad
Support: Windows system
WinXP Win7 Win8 Win10
Galvo Scanner
Brand Name: Beijing Sino Galvo
Model: SG2206 high speed scanner
Field Lens
Brand Name: Nanjing Wave Length
Mode:SG-1064-112-163G
Working Area: 110X110mm
Laser Source
Brand Name: Wuhan Raycus
Model: 20QB 30QB 50QB
Laser Power: 20W 30W 50W
Optional Brand: Max./JPT
Germany IPG
Power Supply
15V Power Supply for scanner
5V Power Supply for Mainboard
24V Power Supply for laser source
Extra Red Pointer
It can support customer adjust focus distance.
Machine laser source has one red dot, and this extra red dot, when 2 red dots are coninside, that is the correct focus distance.
Tool Box
Foot Switch
Protect Goggles
U disk with software
Spanner
Keys
Screws
Ruler
Power Cable
Machine Optional Parts
Rotary clamp
Diameter: 80mm
Rotary clamp for ring
Diameter: 50mm
2D Working Table
It can be moved left and right,
Front and back.
Smoke Purifier
Smoke purifier is mainly used for the purification of smoke and dust produced in marking, cutting, and other processes as well as the recovery of rare metals and precious materials
Flat rotate table for marking pen
It can be put 24 pcs pens.
Cutting Fixture
It is used for fixing metal sheet when cutting. It will be choosed by 50w 100w big power machine.
The wheel rotary clamp
It is suitable for 5-120mm diamater cylinder.
It can bear within 20Kg cylinder.
Industry Application
Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, Medical Instruments etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, Gold Silver Brass Jewelry etc.
Automobile Parts: Pistons&Rings, Gears, Shafts, Bearings, Clutch, Lights.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Marking Materials
Fiber laser marking machine could work perfectly for most metal materials. Such as Gold Silver Brass Jewelry, Aluminium, Stainless Steel, Iron Copperetc. And some plastic materials, such as ABS.
Especially
50w and 100w laser marking machine could cut small gold silver brass jewelry within 1mm.
Sample Show
