Quick Details
-
Brand:
-
SMICO
-
Packaging:
-
carton
-
Description:
-
Push-in spring type terminal
-
SMICO ID:
-
PT2.5-3-G
-
Pitch:
-
5.2mm
-
Number of levels:
-
1
-
Number of connections:
-
3P
-
Connection method:
-
In line spring wiring
-
Protection Level:
-
IP20
-
Work temperature:
-
-40~+105℃
-
Rated Current:
-
24A
-
Rated Voltage:
-
800V
-
Pollution degree:
-
3
Quick Details
-
Type:
-
Push-in spring type
-
Model Number:
-
PT2.5-3-G
-
Place of Origin:
-
Zhejiang, China
-
Brand:
-
SMICO
-
Packaging:
-
carton
-
Description:
-
Push-in spring type terminal
-
SMICO ID:
-
PT2.5-3-G
-
Pitch:
-
5.2mm
-
Number of levels:
-
1
-
Number of connections:
-
3P
-
Connection method:
-
In line spring wiring
-
Protection Level:
-
IP20
-
Work temperature:
-
-40~+105℃
-
Rated Current:
-
24A
-
Rated Voltage:
-
800V
-
Pollution degree:
-
3
Product Description
Use steps
Set 1: Prepare the wires to be connected
Set 2: Directly insert the cable, no tools required
Set 3: Screwdriver into the orange button
Set 4: Unplug the wire, the wire withdrawal is complete
Set 2: Directly insert the cable, no tools required
Set 3: Screwdriver into the orange button
Set 4: Unplug the wire, the wire withdrawal is complete
About DIN Rail Terminal Blocks
DIN Rail terminal blocks are used to protect electrical systems against overcurrent and short-circuiting. They clip on to a DIN rail, which is a standard-size metal rail on to which terminals are mounted in a control cabinet. You can find out more in our complete guide to DIN rail terminal blocks.DIN rail terminals are made from plastic, as this insulates the electrical current running through the terminal. Fused DIN rail terminals often have a hinged section containing the fuse, which can be opened up to stop the flow of electricity. Some are fitted with an LED blown fuse indicator to let you know when the fuse needs changing. Fused DIN rail terminals come with different fuse size inserts and may be colour coded to indicate the current rating. Non-fused work the same, just without the fuse protection.Fused DIN rail terminals are widely used in industry and offer more protection from overcurrent than non-fused DIN rail terminals.They are usually used to protect sensors and relays.both fused and non-fused can be used for applications such Energy managementPower suppliesLighting controllersTelecommunicationsBuilding：managementsystemsIndustrial and civil electrical installationsHeating and air conditioning controls.
PT Series DIN Rail Feed-through Terminal Blocks - SMICO

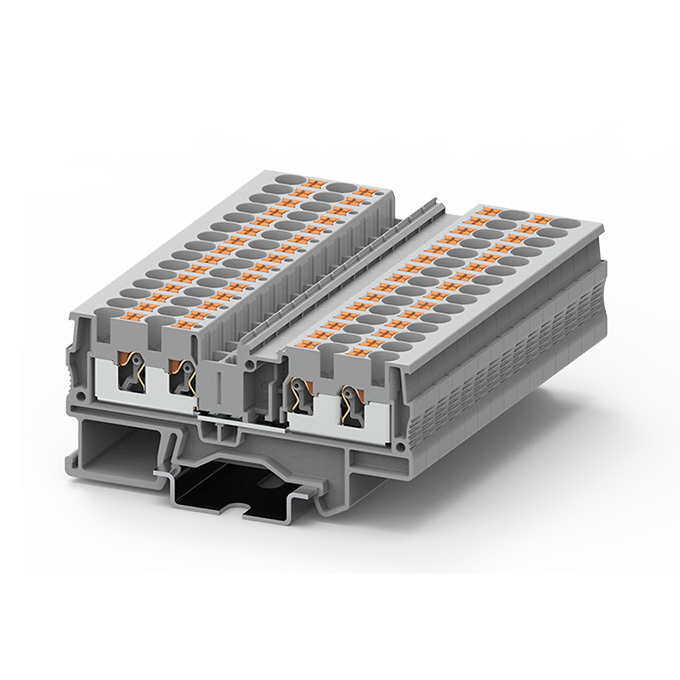

The PT series for DIN Rail terminal blocks from SMICO Contact are feed-through blocks that feature an effortless push-in connection. With a compact width of just 8.2mm and front connections, you'll easily be able to wire this block in confined spaces. Thanks to the push-in connection, no tools are needed to install wires for a secure and reliable connection. Mounting is simple and this terminal block is designed to be mounted onto DIN rails that are of sizes NS 35/7.5 and NS 35/15. The PT series comes in a grey colour and accepts wire sizes from AWG 20 - 8.Housing material is made from a strong yet durable polyamide. Contains are Cu (Copper) alloy. Finally, the PT series only contain one level of connections.
PT push-in connection terminal blocks have been developed for direct conductor connection. This means that solid conductors or conductors with ferrules can be inserted directly into the terminal block without tools. The special spring profile enables the easy insertion of conductors with ferrules from 0.25 mm2. The contact spring is opened automatically when the conductor is pushed in and thereby provides the required pressure force against the current bar. Both for releasing conductors and connecting small cross sections from 0.14 mm2, the spring is opened by means of the actuation lever – easily and without direct contact with live parts. The actuation lever can be operated with all standard screwdrivers.
Products Description
|
Technical Data
|
|
|
|
SMICO ID
|
PT2.5-3-G
|
|
|
Material
|
PA66
|
|
|
Pitch
|
5.2mm
|
|
|
Number of levels
|
1
|
|
|
Number of connections
|
3P
|
|
|
Connection method
|
Push in spring type terminal
|
|
|
Protection Level
|
IP20
|
|
|
Work temperature
|
-40~+105℃
|
|
|
Rated Current
|
24A
|
|
|
Rated Voltage
|
800V
|
|
|
Overvoltage category
|
Ⅲ
|
|
|
Pollution degree
|
3
|
|
|
Rated impulse voltage
|
8KV
|
|
|
Conductor cross section solid
|
0.2-4mm²
|
|
|
Conductor cross section flexible
|
0.2-2.5mm²
|
|
|
Conductor cross section flexible,with furrule
|
0.2-2.5mm²
|
|
|
Stripping length
|
8-10mm
|
|
|
Rated cross section
|
26-12AWG
|
|
|
Brand
|
SMICO
|
|
Product packaging
