Quick Details
-
Brand Name:
-
Kingtech/ Elsun
-
Product Name:
-

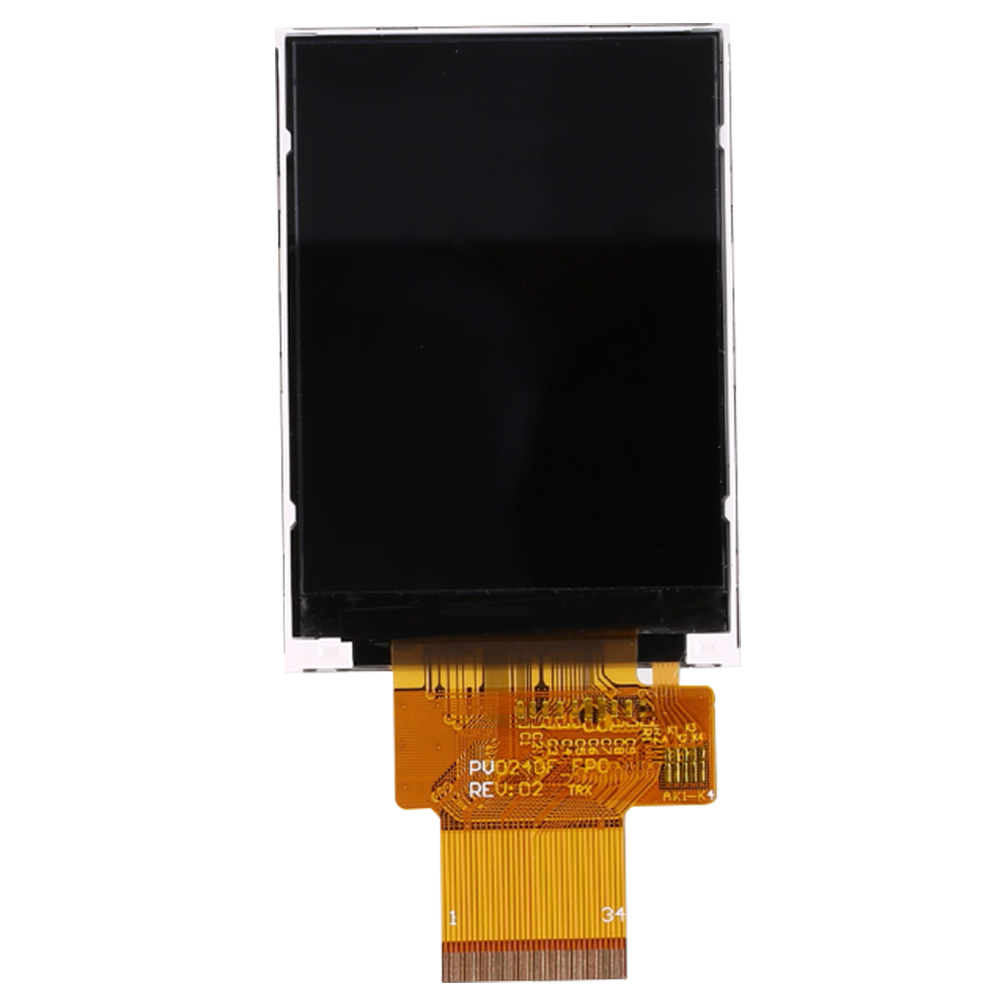

2.4" ili9341T27p05 320*240 stn lcd display capacitive touch screen
-
Production capability:
-
800K/M
-
Interface:
-
16-bits MPU
-
Resolution:
-
240*320
-
Display type:
-
TFT IPS display
-
Viewing Angle:
-
Free viewing angle
-
Business Type:
-
OEM and ODM manufacturer
-
Warranty:
-
12 Months
-
Experience:
-
Professional LCD module supplier since 2003
-
Latest product:
-
wearable device display
Quick Details
-
Display Size:
-
2.4
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
PV0241F2CZ0_V00
-
Brand Name:
-
Kingtech/ Elsun
-
Product Name:
-
2.4" ili9341T27p05 320*240 stn lcd display capacitive touch screen
-
Production capability:
-
800K/M
-
Interface:
-
16-bits MPU
-
Resolution:
-
240*320
-
Display type:
-
TFT IPS display
-
Viewing Angle:
-
Free viewing angle
-
Business Type:
-
OEM and ODM manufacturer
-
Warranty:
-
12 Months
-
Experience:
-
Professional LCD module supplier since 2003
-
Latest product:
-
wearable device display
Super Surprise
Only one film Can change your screen display and image defects
First:The TVA film(
Improve viewing angle and CR ratio
)
Seamless Effect Adhesive
Product Description
Main Parameters
Item
|
2.4 inch with 240*320 resolution IPS display
|
Model No
|
PV0241F2CZ0
|
Resolution
|
240*320
|
Outline Dimension
|
42.72(H)*60.7(W)*2.21(T)
|
Active Area(mm)
|
36.72(H)*48.96(W)
|
Interface
|
16-bits MPU
|
Viewing Angle
|
ALL
|
Driving IC
|
ILI9341V
|
Display Mode
|
Transmissive/Normally black
|
Operating Temperature
|
-10°~60°
|
Storage Temperature
|
-20°~70°
|
Brightness
|
250nits and 700nits
|
More Customized Products
Size and Feature
|
Model No
|
Resolution
|
Interface
|
Brightness
|
Viewing angle
|
With /Without TP
|
1.39" OLED Round with Board
|
454*454
|
MIPI/SPI
|
350
|
All
|
With TP
|
|
2.0" Sunlight readable IPS
|
240*320
|
4SPI+16-bit RGB interface
|
1000
|
All
|
Without TP
|
|
2.4"
|
240*320
|
8,9,16,18-bits MPU / 6,16,18-bits RGB / 3,4
|
180
|
6 O'clock
|
With TP
|
|
2.4" Sunlight Readable IPS
|
240*320
|
16-bits MPU
|
200
|
All
|
With TP
|
|
2.8" IPS
|
240*320
|
i80-system 8/16/18-bit MCU interface
|
400
|
All
|
With TP
|
|
2.8" IPS
|
240*320
|
4-lines_8bit / 3-lines_9bit SPI
|
200
|
12 O'clock
|
With TP
|
|
3.2"
|
240*320
|
MPU 8 / 16 bit
|
160
|
6 O'clock
|
Without TP
|
|
3.34'' Round
|
320*320
|
MIPI
|
600
|
12 O'Clock
|
Without TP
|
|
3.4'' Round With Driver Board
|
800*800
|
MIPI 3 lane
|
350
|
All
|
With TP
|
|
3.5"
|
320*240
|
24BIT RGB+SPI
|
290
|
12 O'Clock
|
With TP
|
|
3.5" IPS
|
320*480
|
MPU 16-bit
|
230
|
All
|
With TP
|
|
3.5" Sunlight Readable IPS
|
320*480
|
16-Bit MCU
|
1000
|
All
|
With TP
|
|
3.5" Transflective Sunlight readable
|
480*640
|
3-wire SPI + RGB interface
|
120
|
All
|
Without TP
|
|
4.3"
|
480*272
|
24 BITS RGB
|
280
|
12 O'Clock
|
With TP
|
|
4.3" IPS
|
480*800
|
3-wire/4-wire SPI + RGB interface
|
300
|
All
|
With TP
|
|
4.3" Sunlight readable
|
480*272
|
24-Bit RGB 8-Bit RGB
|
800
|
12 O'clock
|
With TP
|
|
4.82'' Bar type
|
480*1120
|
MIPI DSI
|
280
|
All
|
With TP
|
|
5.0" OLED
|
1080*1920
|
MIPI-4 Lanes
|
380
|
All
|
With TP
|
|
5.0" Sunlight Readable With Driver Board
|
800*480
|
24-bit Parallel RGB
|
500
|
12 O'Clock
|
With TP
|
|
7.0" IPS
|
800*1280
|
MIPI-4 Lanes
|
500
|
All
|
Without TP
|
|
7.0" IPS With Driver Board
|
1024*600
|
TTL(RGB interface)
|
450
|
All
|
With TP
|
|
7.0" Sunlight readable With Driver Board
|
800*480
|
24-bit Parallel RGB Interface
|
400
|
12 O'Clock
|
With TP
|
|
7.0" Sunlight readable With Driver Board
|
800*480
|
24-bit Parallel RGB Interface
|
300
|
12 O'clock
|
With TP
|
|
7.0" Sunlight Readable With Driver Board
|
1024*600
|
LVDS
|
500
|
12 O'Clock
|
With TP
|
|
8.0" IPS
|
800*1280
|
MIPI 4 LANE
|
380
|
All
|
With TP
|
|
8.0" IPS
|
1200*1920
|
MIPI
|
500
|
All
|
With TP
|
|
10.1" IPS With Driver Board
|
1280*800
|
LVDS Interface
|
350
|
All
|
With TP
|
|
10.1" IPS
|
800*1280
|
MIPI VIDEO MODE
|
330
|
All
|
With TP
|
|
10.1" IPS
|
1200*1920
|
MIPI
|
500
|
All
|
With TP
|
|
10.1" IPS With Driver Board
|
1280*800
|
LVDS Interface
|
500
|
All
|
With TP
|
|
10.1" Sunlight Readable IPS
|
1280*800
|
LVDS Interface
|
1000
|
All
|
With TP
|
|
10.4'' Sunlight readable Bar Type With Driver Board
|
1024*100
|
TTL(RGB interface)
|
950
|
All
|
With TP
|
