Quick Details
-
Smart Control:
-
By Cellphone
-
MTBF:
-
10 Million Cycles
-
Speed:
-
0.9~6 sec. adjustable
-
Boom Length:
-
Max.6mtr
-
DC Servo Motor:
-
100% duty cycle
-
Boom Direction:
-
Exchangeable
-
Safety 1:
-
Auto-reversing on obstacle
-
Safety 2:
-
Swing-off
-
Boom Detecting:
-
Alarm against Swing-off
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
DASHOU
-
Communication:
-
TCP/IP RS485
-
Smart Control:
-
By Cellphone
-
MTBF:
-
10 Million Cycles
-
Speed:
-
0.9~6 sec. adjustable
-
Boom Length:
-
Max.6mtr
-
DC Servo Motor:
-
100% duty cycle
-
Boom Direction:
-
Exchangeable
-
Safety 1:
-
Auto-reversing on obstacle
-
Safety 2:
-
Swing-off
-
Boom Detecting:
-
Alarm against Swing-off

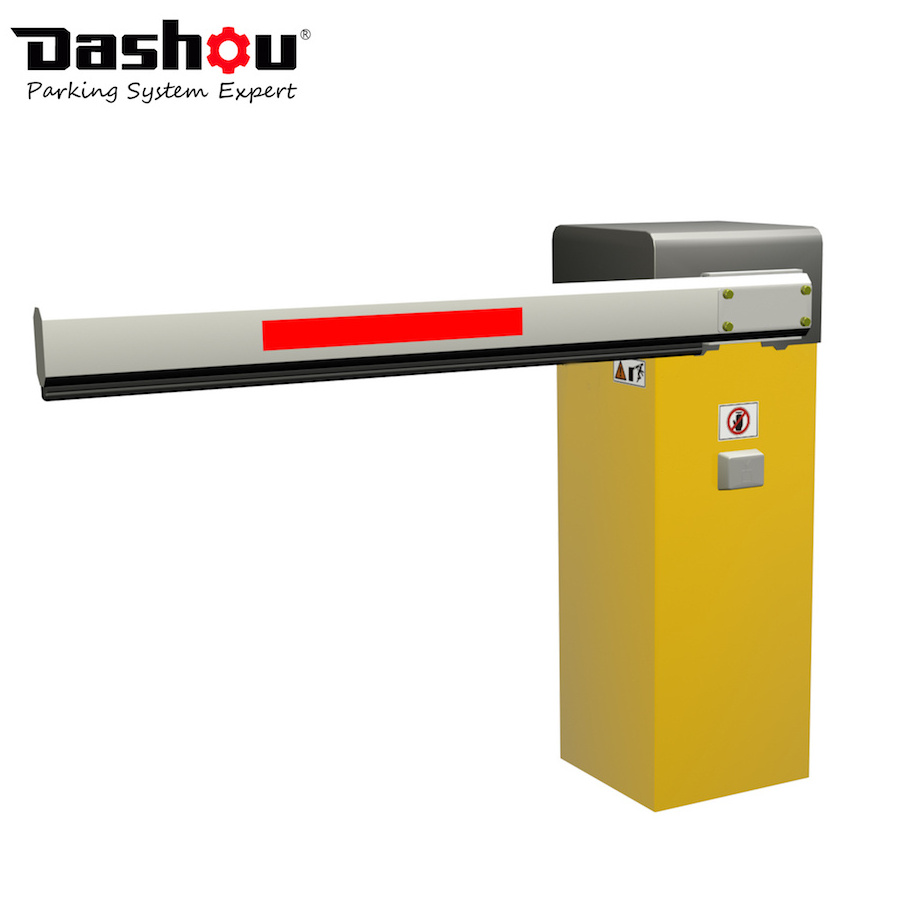

10 Million MTBF Automatic Parking Barrier Boom Gate
This Automatic Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as toll gate, shopping center, exhibition center, hospitals, airport etc.
Description
1) Open/close time: 0.9~6 sec. adjustable
2) Max. 6m straight arm with rubber bar
Max. 5m folding arm with rubber bar
Max. 4.5m fence arm with rubber bar
3) Inclusive of
arm
,
2 remoters
, and "
push button
" which opens/closes barrier
4) Exclusive of
LED light bar
,
boom bracket
and
anti-collision mechanism
: need to buy extrally
5) Optional housing color: yellow (default),orange, white, red and blue
6) Easily change different boom type (straight/crank/fence) without replacing any parts
7) Boom direction is exchangeable without replacing any parts
| Model No. | Open/Close Time | Max. Boom Length | Boom Type |
| PAB-BD-HSN | 0.9s | 3m |
Straight Boom with rubber bar (Octagonal or round) |
| PAB-BD-NSN | 2s | 4m |
Straight Boom with rubber bar (Octagonal) |
| 3s | 5m | ||
| 4s | 6m | ||
| PAB-BD-HCN | 1s | 3.5m |
Crank Boom with rubber bar (Octagonal or round) |
| PAB-BD-NCN | 2~3s | 4m |
Crank Boom with rubber bar (Octagonal) |
| 4~s | 5m | ||
| PAB-BD-HFN | 2.5~3s | 3m | Single Fence Boom |
| PAB-BD-NFN | 4~6s | 4.5m | |
| PAB-BD-NFN2 | 4~6s | 4 | Double Fence Boom |
Features
-
1. Quite smooth moving with Max. 6m boom
2. 0.9~6 sec. speed adjustable
3. Different types of boom is changed without replacing any parts
4. Variable frequency controller automatically detects and optimizes boom moving, ensures smooth moving without shake
5. Simplified design, easy installation and maintenance reduces your labor cost
6. Boom open up fully or close down in case of power failure
7. Alarm when boom swing-off (Optional)
8. Safety of Vehicle--- Anti-hit by Loop Detector (Optional)
9. Safety of Vehicle--- Anti-hit by IR photocell (Optional)
10. Safety of Vehicle--- Anti-hit by "Opening Priority"
11. Automatically lock boom when power off
12. Closing Priority
13. Automatically close in given time (Programmable)
14. Automatically close or open by loop detector (Optional)
15. Heavy-duty and simple-design housing
16. Anti-condensation in cold climate
17. Transparent plastic covers on control board
Specifications
| Open/close time | 0.9~6s adjustable |
| Octagonal Arm |
Max. 6mtr 45×100mm aluminum alloy octagonal boom
Max. 3m round boom with foam |
| Power Supply | AC 85~264V,50/60HZ |
| Motor | 50W DC24V brushless servo torque motor |
| Duty Cycle | 100% |
| MTBF | 10 Million Cycles |
| Controller | 80C51 MCU, 20MHz, PWM variable frequency servo controller board |
| Remote distance | 20~50mtr. |
| Communication Interface | RS-485 or TCP/IP RJ45 |
| Housing material | 2mm cold-roller sheet |
| Housing Painting | Powder coating, 10 years without rust,shedding and fading |
| IP level | IP 54 |
| Housing size | 950mm×320mm×329mm |
| Package size | 1100mm×480mm×430mm |
| G.W | 46 KG |
| Operating temperature | -40°c -75°c |
| Humidity | 10%-95% |
Contact us for Catalogue and pricelist of PAB-BD Beyond covers all models with different boom shape(straight/crank/fence), boom length( Max.6m) and open/close time (0.9~6 sec.). PAB-E Economic & PAB-E2 Economic barrier also be your economic choice.
Recommended Hot Sale Models
1. Warranty: 1 year
2. Certificates: CE
3. MOQ: 1 piece
4. OEM: Available
5. Lead time : 2~7 working days after deposite received
