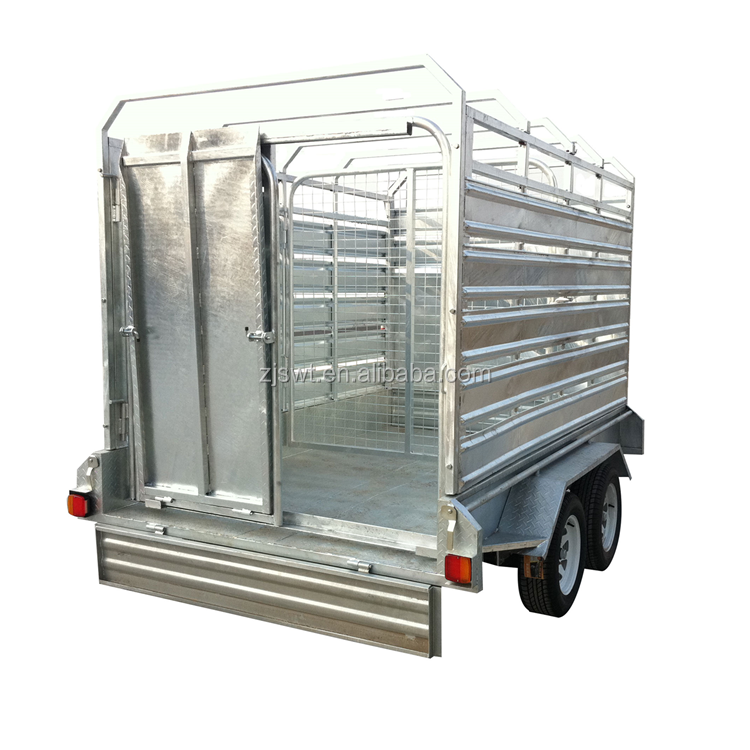

10*6 Galvanized caged tandem Trailer

Different Sizes for Cattle Crate Trailer

SIZE

MODEL NO

OVERALL SIZE

INNER BOX SIZE

SPRING

WHEEL

SURFACE TREATMENT

ATM

8x5Ft

SWT-CCT85

4150x2025x2600mm

2440x1525x300mm

7leafs

195R15C

Hot Dipped Gal

3500KGS

9x5Ft

SWT-CCT95

4410x2025x2600mm

2700x1525x300mm

7leafs

195R15C

Hot Dipped Gal

3500KGS

10x5Ft

SWT-CCT105

4760x2025x2600mm

3050x1525x300mm

7leafs

195R15C

Hot Dipped Gal

3500KGS

12x6Ft

SWT-CCT126

5370x2025x2600mm

3660x1830x300mm

7leafs

195R15C

Hot Dipped Gal

3500KGS

Description For 9x5 Cattle Crate Trailer

STANDARD PARTS

SPECIFICATION

Drawbar

100x50x5mm RHS. 1600mm long with 2x12mm safety chains (AS4177 stamp)

Chassis

70X50x4mm RHS (Not angle)

Floor & Side

2.5mm Checker plate, fully welded on the chassis

Axle

50x50mm Solid square bearing, 12’ electric brake on 4 wheels

Spring

60x8mmx7leafs rocker roller suspension (not 5leafs or 6leafs cheap and light spring)

Wheel

195R15C wheel with 15nch white paint rim

Jockey wheel

6inch top wind heavy duty jockey wheel. with E-mark and DOT certificate

Coupler

50mm AU standard coupling, 1 7/8 NZ standard coupling, EU standard coupling

Lights

LED Tail-Lights with 7pin plug and 7 core wiring. light with E-mark and DOT certificate

Surface Treatment

Hot dipped galvanized

CRATE DETAILS

Crate Panel

1.5mm steel plate

Crate Height

1800mm

Crate Open Way

3 way door system: Drop, Slide & Swing
