Quick Details
-
Type:
-
AC 220V
-
Maximum Measuring Voltage:
-
5V
-
Charging voltage/current:
-
1-5V 0.5-50A
-
Discharge voltage/current:
-
1-5V 0.5-50A
-
Voltage/Current accuracy:
-
0.2%±
-
Test mode:
-
Charging/Discharge/Cycle mode
-
Special functions:
-
Voltage Balancer
-
Power Supply:
-
220V
-
WEIGHT:
-
2.56KG
Quick Details
-
Brand Name:
-
YPSDZ
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
YPSDZ-0550
-
Type:
-
AC 220V
-
Maximum Measuring Voltage:
-
5V
-
Charging voltage/current:
-
1-5V 0.5-50A
-
Discharge voltage/current:
-
1-5V 0.5-50A
-
Voltage/Current accuracy:
-
0.2%±
-
Test mode:
-
Charging/Discharge/Cycle mode
-
Special functions:
-
Voltage Balancer
-
Power Supply:
-
220V
-
WEIGHT:
-
2.56KG
|

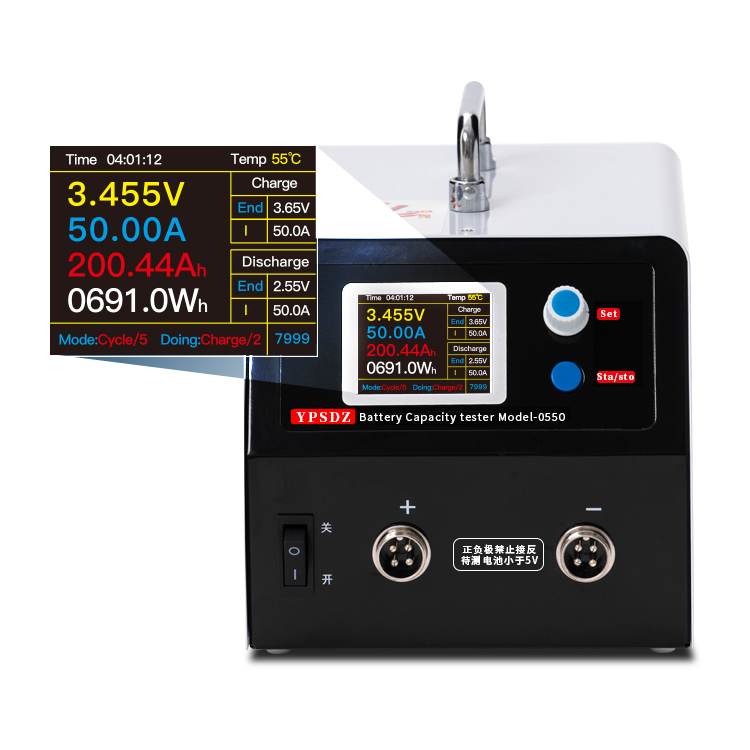

Model
|
YPSDZ-0550
|
YPSDZ-0550
|
|
|
|||
|
Applicable Scope
|
|
Suitable for all 0.3-5V 1-5999Ah battery cell
|
|
|
|||
|
Discharge Voltage
|
|
0.3-5V adjustable
|
|
|
|||
|
Discharge Current
|
|
0.3-50A adjustable
|
|
|
|||
|
Charge Voltage
|
|
0.3-5V adjustable
|
|
|
|||
|
Charge Current
|
|
0.3-50 adjustable
|
|
|
|||
|
Discharge method
|
|
Constant current discharge
|
|
|
|||
|
Work steps
|
|
Charging/discharging/settling/cycling
|
|
|
|||
|
Calibration formula
|
|
Local calibration&third-party sampling calibration
|
|
|
|||
|
Communication mode
|
|
USB Adapt/stand-alone
|
|
|
|||
|
Accuracy
|
|
Voltage±0.1% Current±0.1%
|
|
|
|||
|
Heat Dissipation
|
|
Cooling fans open at 40℃ and protected 85℃
|
|
|
|||
|
Power Supply
|
|
AC 200-240V 50/60HZ 110V
|
|
|
|||
|
Size
|
|
21.5*170*150mm
|
|
|
|||
|
Net Weight
|
|
2KG
|
|
|
|||
|
Notice
|
|
Do not test batteries exceeding 5V
|
|
|
|||
|
Protection function
|
|
Battery overvoltage/battery reverse connection/battery disconnection/high temperature alarm and protection inside the machine
|
|
|
|||
