- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
800
-
Voltage:
-
220V 50/60HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ECHO
-
Dimension(L*W*H):
-
4100 x1300 x1450mm
-
Product name:
-

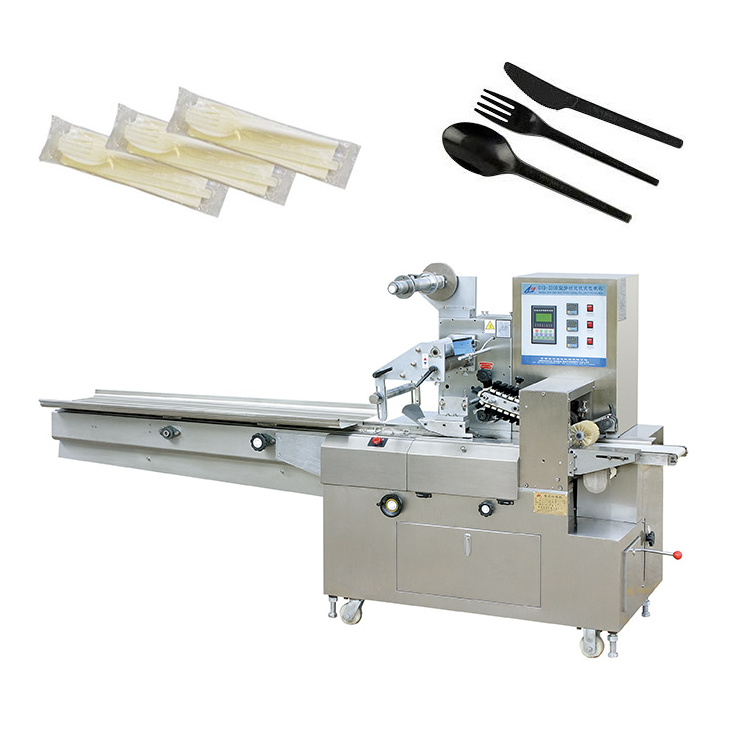

Automatic Pillow Packing Machine
-
Bag type:
-
Pillow Bag
-
Machine type:
-
Multi-function Packing Machine
-
Packing speed:
-
40-230bags/min
-
Film material:
-
Hot Seal Film
-
Payment Item:
-
30% down,70% balance before shipping
-
Factory:
-
yes
-
CNC:
-
yes
-
Customization:
-
yes
-
ACCURACY:
-
ERROR<1%
Quick Details
-
Function:
-
Wrapping, Labeling, COATING, Sealing
-
Packaging Type:
-
Film, Foil
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
800
-
Voltage:
-
220V 50/60HZ
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ECHO
-
Dimension(L*W*H):
-
4100 x1300 x1450mm
-
Product name:
-
Automatic Pillow Packing Machine
-
Bag type:
-
Pillow Bag
-
Machine type:
-
Multi-function Packing Machine
-
Packing speed:
-
40-230bags/min
-
Film material:
-
Hot Seal Film
-
Payment Item:
-
30% down,70% balance before shipping
-
Factory:
-
yes
-
CNC:
-
yes
-
Customization:
-
yes
-
ACCURACY:
-
ERROR<1%
Main Performance And Structure Features:
1.PLC Touch screen operation, easy to operate and understand
2.High speed, connectable to various feeder line
3.Double frequency converter controller / servo motor for choice
4.Language: A. Chinese B. English
We also supply other devices:
1.Date coding printer, 2.Air-filling device, 3.Punching device
4.Double frequency converter controller / servo motor for choice
Note: We can design and make machine according to the customers’special needs.
| Machine parameters | ||||||||
| Model |
ECHO -280 |
ECHO -300 |
ECHO -380 |
ECHO -420 |
ECHO -460 |
ECHO -580 |
ECHO -630 |
ECHO -660 |
|
Max.Width of film(mm) |
300 |
300 | 380 | 420 | 460 | 600 | 630 | 200 |
|
Max.Diameter of film(mm) |
350 |
350 |
300 |
300 |
300 |
300 |
350 |
390 |
|
Bag Length(mm) |
50-450 | 60-400 | 90-450 | 90-450 | 100-220 | 130-600 | 250-450 | 80-180 |
|
Bag Width(mm) |
25-110 | 35-100 | 40-140 | 40-140 | 40-100 | 80-200 | 10-60 | 15-30 |
| Products Height(mm) | max.50 | max.60 | max.60 | max.80 | max.80 | max.110 | 10-100 | 5-30 |
|
Packing Speed (bag/min) |
50-190
|
30-350
|
35-260
|
35-260
|
30-100
|
10-90
|
15-80
|
660 |
| Power |
220V 50/60HZ 3KW |
220V 50/60HZ 3KW |
220V 50/60HZ 3KW |
220V 50/60HZ 3KW |
220V 50/60HZ 3.3KW |
220V
50/60HZ 3KW |
220V
50/60HZ 4KW |
3P/380V 50Hz 7KW |
|
Machine Size(mm) (L*W*H) |
3200 x1050 x1450
|
4200 x850 x1550
|
3500 x1000 x1500 |
4200 x1000 x1550 |
3800 x3200 x1500 |
4100 x1300 x1450 |
4000 x1250 x1500 |
6000 ×1300 ×1600 |
| Machine Weight | 750kg | 900kg | 700kg | 950kg | 1200kg | 900kg | 950kg | 1.5T |
|
Application Product |
Food :
cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon cake, several sausage in a bag, noodles, beef jerky, egg roll, etc
Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers,etc. Hardwares : hinge, stainless steel pipe, bearings , screw, nuts and washer, etc Hotel Supplies : soap, disposable comb, Bath Cap, tooth paste and brush in one set. Stationary : pencil, eraser, notebook, paper card, adhensive tape,etc. Electric Products : battery, usb cable, earphone, user manual and accessories in one set. Medical : face mask, glove, gauze, capsule, disposable syringe. Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, pacifier & nipple, bottles, napkin, baby diaper, etc. |
|||||||
| Bag Type | pillow bag,pillow bag with hole punch,pillow with euro slot,gusseted bag,etc | |||||||
| Parts of Machine | ||||||||
| Parts | Touch Screen | PLC |
Servo Motor |
Cylinder |
proximity switch |
Photo Sensor |
Solid State Relay |
Temperature Controllor |
| Brand | SIEMENS | SIEMENS | PANASONIC | AIRTAC | TOSHIBA | SICK | SHENGLONG | OMRON |
| Oringin | Germany | Germany | Japan | China | Japan | Germany | China | Japan |
| The Parts Can Be Replaced As Your Need. | ||||||||
Details of Machine
2.according to the special requirements of customers, personalized customized products;
3. Train technicians for customers free of charge;
4. Free professional technical engineers to plan the site on site and design the best process and plan.
6. Assist the client in drafting the construction plan;
ECHO have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
2. Parts Replacement , Don’t worry about the parts damaged or not sold after the machine is sold.we have a field factory with hundreds of enployees to serve you.
3. Engineer Asssignment , Lifelong maintentance,If your equipment breaks down,we will arrange engineers to repair it.
4. Online Instruction , We open online services,as long as your equipment failure,our engineers will be the first time for a one-to-one trou-bleshooting.
5. Feedback Survey, The engineer is required to bring a questionnaire to fill in the satisfaction with the engineer and the use of the equipment.
