Quick Details
-
Walking Speed:
-
0-2.8km/h
-
Walking Way:
-
Hydraulic
-
Boom Form:
-
5(5 Automatic)
-
Crawler Belt:
-
Synthetic rubber
-
Climbing Capacity:
-
20°
-
Hydraulic oil tank capacity:
-
80L
-
Demensions:
-
2.85m*0.8m*1.45m
-
Ground pressure:
-
51kpa
Quick Details
-
Place of Origin:
-
Henan, China
-
Item:
-
mini Crawler crane spider crane
-
Hook up Speed:
-
2.5m/min(4)
-
Walking Speed:
-
0-2.8km/h
-
Walking Way:
-
Hydraulic
-
Boom Form:
-
5(5 Automatic)
-
Crawler Belt:
-
Synthetic rubber
-
Climbing Capacity:
-
20°
-
Hydraulic oil tank capacity:
-
80L
-
Demensions:
-
2.85m*0.8m*1.45m
-
Ground pressure:
-
51kpa
mini Crawler crane spider crane
Brief Introduction
Mini Spider Crane is mainly used for lifting heavy things under three dimensional environment
that loads beyond the normal capability of man and transporting them to other places. It is mini-sized,
flexible design, easy to operate and wireless remote control technique. It can rotates at 360 degree.
So it is the most suitable crane to work in narrow space. Mini Spider Crane has been adopted by
many
factories successfully and has been sold all over the world, it has good reputation. Mini Spider Crane
is suitable to work in the dock, warehouse, workshop etc.

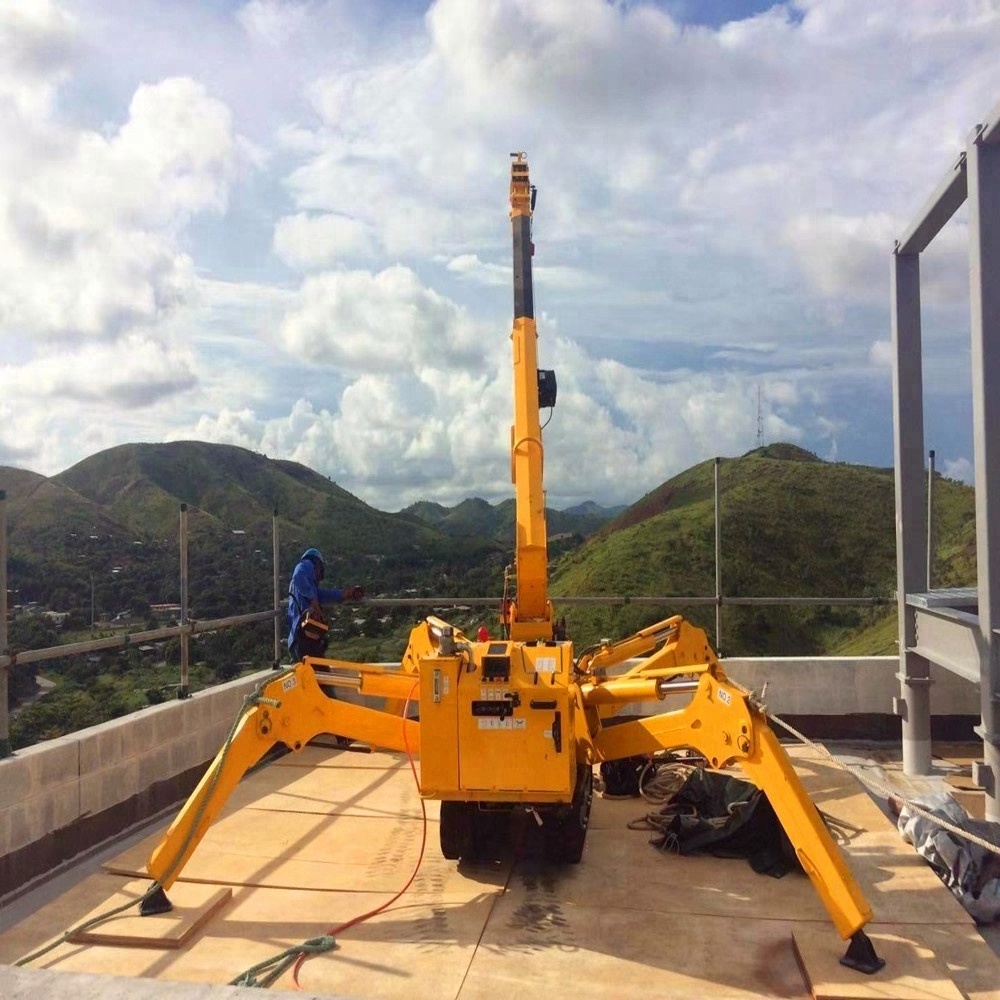

Picture Show
mini Crawler crane spider crane
|
Capacity |
2.95Tx1.3m |
|
|
Working Radius |
8.3m |
|
|
Ground Lifting Height |
9.2m |
|
|
Winch device |
Hook speed |
0-6.5m/min(4Times) |
|
|
Φ7.7mm×45m |
|
|
Telescopic System |
|
Full automatic 5 section |
|
|
8.92 m |
|
|
Up and downs |
Boom angle |
0°-75° |
|
Slew system |
Slew angle |
360°continuous/1.0rpm |
|
Outrigger |
|
Automatic for the 1 section,manual adjustment for 2,3 section. |
|
Maximum extended dimensions |
3900mm×3750mm |
|
|
Traction system |
|
Hydraulic motor driven |
|
Walking speed |
0-2.9km/ h 0-2km/h |
|
|
|
1010mm×200mm×2 |
|
|
|
20° |
|
|
Ground pressure |
51Kpa |
|
|
Hydraulic fuel tank capacity |
50L |
|
|
|
2900mmx800mmx1450mm |
|
|
|
2050Kg |
|
|
Safety Devices |
Air level,Moment limiter(Height limiter),Alarm Device,Emergency Stop Button |
|
|
|
Single hanging basket, Single fall hook,2-fall hook |
|
|
|
|
2TNV70-PYU |
|
|
570ml |
|
|
|
7.5KW |
|
|
|
|
|
|
|
|
|
|
|
11L |
|
|
|
-15°C~40°C |
|
|
|
12V 45Ah |
|
|
|
|
GX390 |
|
|
389.2ml |
|
|
|
6.6KW |
|
|
|
|
|
|
|
|
|
|
|
6L |
|
|
|
0°C~40°C |
|
|
|
12V 36Ah |
|
|
|
|
4KW(380V,50HZ) |
|
|
|
BOX1.1 |
|
|
100m |
|
|
|
IP-67 |
Electricals and other parts are packed by high quality plywood crates, Nude packed into container or as requirement.
