Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EAST Filtration
-
keyword:
-
filter cartridge
-
Filtering Area:
-
≥0.65㎡
-
Precision:
-
0.04,0.2, 0.45,0.65, 1, 5, 10,25,50,75,100um
-
Length:
-
20", 40" , 60"
-
Sealing Technique:
-
Thermal Bonding
-
Seal:
-
EPDM, Viton, Silicone, Teflon, etc
-
Connection:
-
Flat
-
Certification:
-
ISO9001,FDA,SGS,CE
-
Color and Size:
-
Customized
-
OEM:
-
Yes
Quick Details
-
Weight (KG):
-
0.5
-
Marketing Type:
-
Hot Product 2024
-
Core Components:
-
Filter element
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EAST Filtration
-
keyword:
-
filter cartridge
-
Filtering Area:
-
≥0.65㎡
-
Precision:
-
0.04,0.2, 0.45,0.65, 1, 5, 10,25,50,75,100um
-
Length:
-
20", 40" , 60"
-
Sealing Technique:
-
Thermal Bonding
-
Seal:
-
EPDM, Viton, Silicone, Teflon, etc
-
Connection:
-
Flat
-
Certification:
-
ISO9001,FDA,SGS,CE
-
Color and Size:
-
Customized
-
OEM:
-
Yes
Eco friendly pool filter cartridge
Description

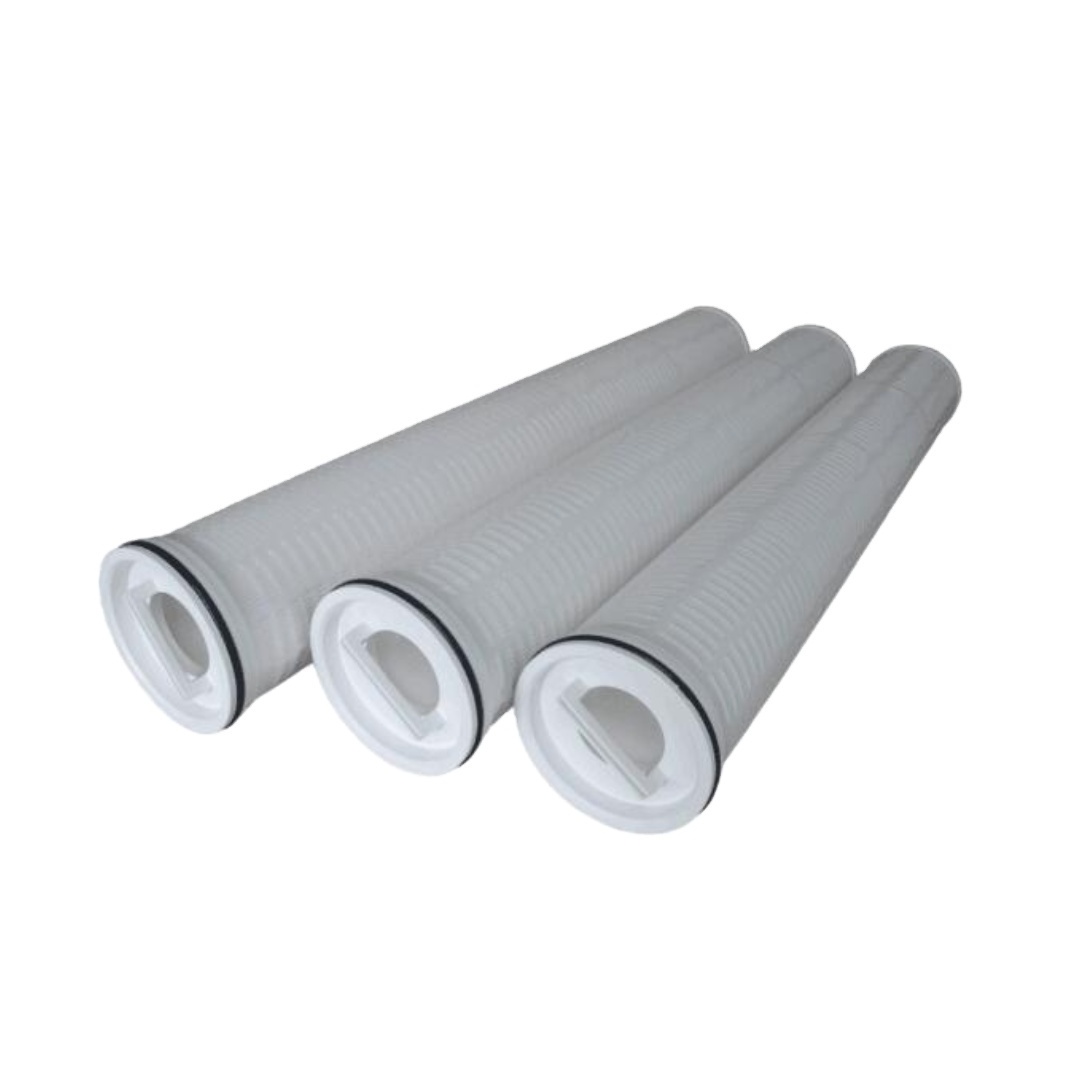

Large flow cartridge filters is made of high quality PP material .
Technical Parameter
| Precision |
0.04,0.2, 0.45,0.65, 1, 5, 10,25,50,75,100um |
|
Filtering Area |
≥ 0. 65m2 |
|
Length |
20",40" , 60" |
|
Inner /Outer Diameter |
80 mm(3.2 inch) /152.4 (6 inch) |
|
Seal |
EPDM, Viton, Silicone, Teflon, etc |
|
Sealing Technique |
Thermal Bonding |
Item Code Guide
ZFH - 1 - 2 0- SOE
|
Z |
FH |
1 |
20 |
SOE |
|
Pleated type |
Material |
Precision |
Length |
connection |
Operating Guide
Max. differential Pressure: 0.25Mpa @ 25 ℃
Max. operating temperature: 65 ℃
Pure Water Flux: 0.2μm ≥ 7L/min / 0.45μm ≥ 12L/min / 0.65μm ≥ 15L/min
Complete Test : 0.2μm ≥ 0.30 MPa / 0.45μm ≥ 0.22 MPa / 0.65μm ≥ 0.14 MPa
( minimum bubble point @25℃; Pure water)
Advantages
♦ High filtration precision.
♦ Strong adaptability to different media.
♦ Can be customized according to different media.
