Quick Details
-
Dimension(L*W*H):
-
2.7x1.9x2.7m
-
Voltage:
-
380v
-
Power:
-
1.5
-
Weight (KG):
-
4200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
square type biomass carbonization furnace
-
Temperature in the stove:
-
420-480℃
-
Energy Consumption:
-
20-50kg firewood or 15-30kg natural gas
-
Carbonizing speed:
-
1-3 ton/day
-
Raw materials:
-
Wood chips, wood branches, raw wood and wood briquettes and so on
-
Operation:
-
one people can control 4-5 set
-
Color:
-
As you like
-
Design:
-
Perfessional
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
mingyang
-
Effective Volume:
-
2.2x1.8x2.2m
-
Dimension(L*W*H):
-
2.7x1.9x2.7m
-
Voltage:
-
380v
-
Power:
-
1.5
-
Weight (KG):
-
4200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
square type biomass carbonization furnace
-
Temperature in the stove:
-
420-480℃
-
Energy Consumption:
-
20-50kg firewood or 15-30kg natural gas
-
Carbonizing speed:
-
1-3 ton/day
-
Raw materials:
-
Wood chips, wood branches, raw wood and wood briquettes and so on
-
Operation:
-
one people can control 4-5 set
-
Color:
-
As you like
-
Design:
-
Perfessional

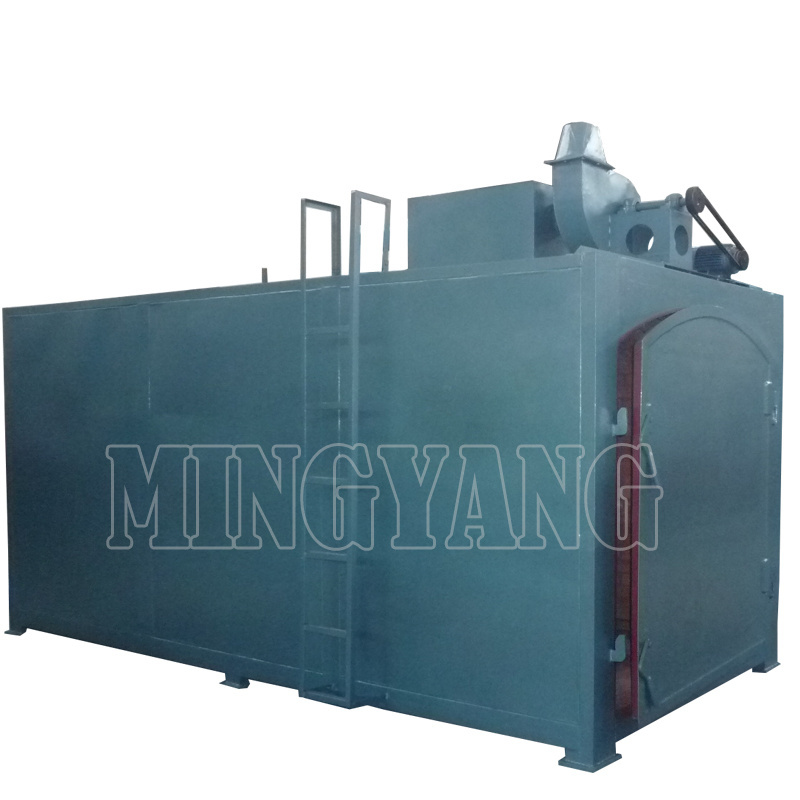

The most popular smokeless square type biomass carbonization furnace stove kiln for the briquettes
Brief introduction of square type biomass carbonization furnace
This machine is a kind of stove used for charring biomass briquette into smokeless
charcoal briquette.The quality and efficiency of kiln affect final forming of charcoal briquette greatly.This furnace is ideal equipment for wood briquettes to have anoxic distillation
carbonization. Due to its rational structure, the furnace only needs small quality of heat consumption.Energy comes from firewood or gas heating.
Main structure of square type biomass carbonization furnace
1. Main furnace: It includes heating room, furnace body and heat-keeping layer
2. Carbon basket: The raw materials is the resistance thermal steel plant and sealing
cover.
3. Fume extraction tube: When during the process of carbonizing, there will be some
smokecan be burning. The smoke can retur n to the furnace through tube----air-blast
carbonization.
Main features of square type biomass carbonization furnace
1, no smoke. can producing continuely.
2, a hoist to lift for labor saving
3, air clean system
4, ISO approved
Technical data of square type biomass carbonization furnace
|
Carbonization furnace
|
Size(m)
|
Volume,m3
|
Capacity,
|
Power kw
|
Temperature in the stove, ℃
|
|
THL--1
|
2.2x1.8x2.2
|
3
|
0.8-1ton/24hrs
|
1.5
|
420-480
|
|
THL-2
|
2.4x1.8x2.2
|
5
|
1.5-2.0ton/24hrs
|
1.5
|
420-480
|
|
THL-3
|
3x2.0x2.2
|
6
|
2-2.5ton/24hours
|
1.5
|
420-480 |
The transportation of the square type biomass carbonization furnace
We also offer other related machines, such as crusher, dryer, carbonization stove,
conveyor etc. and also can design the suitable production line specially for you
according to your information and requirement.
So please do not hesitate to contact us if there is any needs on our machines, we will be
very glad to offer our best price and professional service for you .
Service Commitment
Before sale: Help customers choose the most suitable equipments; provide advanced,
energy-saving and practical flow chart as well as responsible for designing the site.
On sale: Inspect the product seriously before out of the factory; invite customer for
commissioning in the spot and raising the objection; organize to delivery according to
the contract.
After sale: Company can send technical datas for guiding to install debug the machine.
We also can provide 24-hour telephone or message service.
