Quick Details
-
Warranty:
-
3 Years
-
Frequency:
-
315MHz & 433MHz
-
Voltage:
-
3.7V
-
Max Pressure:
-
900Kpa
-
Certification:
-
CE, FCC, RoHS
-
Function:
-
TPMS programmable sensor
-
Type:
-
Digital
-
Application:
-
America, Europe and Asian cars
-
Emission power:
-
8dBm
-
TPMS sensor:
-
Universal Programmable NFC TPMS sensor
-
Frequency deviation:
-
±30kHz
-
Coverage:
-
98% cars worldwide
-
Weight:
-
30g
-
Dimensions:
-
Approx 55.1*29.4*21.8mm
Quick Details
-
Car Fitment:
-
Tesla
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Gallop
-
Warranty:
-
3 Years
-
Frequency:
-
315MHz & 433MHz
-
Voltage:
-
3.7V
-
Max Pressure:
-
900Kpa
-
Certification:
-
CE, FCC, RoHS
-
Function:
-
TPMS programmable sensor
-
Type:
-
Digital
-
Application:
-
America, Europe and Asian cars
-
Emission power:
-
8dBm
-
TPMS sensor:
-
Universal Programmable NFC TPMS sensor
-
Frequency deviation:
-
±30kHz
-
Coverage:
-
98% cars worldwide
-
Weight:
-
30g
-
Dimensions:
-
Approx 55.1*29.4*21.8mm
Products Description
|
Technical Parameters:
|
|
|
|
Operating temperature
|
-40 ° C~+125 ° C
|
|
|
Atmospheric pressure
|
0Kpa~900Kpa
|
|
|
Installation position
|
automobile wheel hub
|
|
|
Storage temperature range
|
-40 ° C ~+125 ° C
|
|
|
Emission current
|
1.0mA ≤I≤3.5mA
|
|
|
Operating voltage
|
2.90V≤U≤3.50V
|
|
|
Emission frequency
|
314.95MHZ ±27Khz
|
|
|
Weight
|
30g
|
|
|
Service life
|
3 years
|
|
|
Frequency deviation
|
315MHz & 433MHz
|
|
|
Temperature error
|
-20~70 ° C : ±3 ° C,-40~-20℃,70~125℃ :±5℃
|
|
|
Pressure error
|
0 ~50℃ :± 0.07bar, -40~0℃ , 50~85℃ :± 0.1bar
|
|
|
FUNCTION:
|
|
|
|
QQR-Sensor is a programmable sensor for TPMS OE sensor replacement. Freescale/Infineon microchip and automotive components are introduced to advance production technology for TPMS sensors with strict quanlity control of CE, FCC, RoHS and IATF16949 standard.
|
|
|
|
Features:
|
|
|
|
* 98% Car Protocols Coverage
* Only ONE 315MHZ and or 433MHz with less stocks * All Wheels can be installed * Repeatly programming ,without limitation * Maxium driving speed is 250KM/h * Low temperature from -40C to 125C |
|
|
|

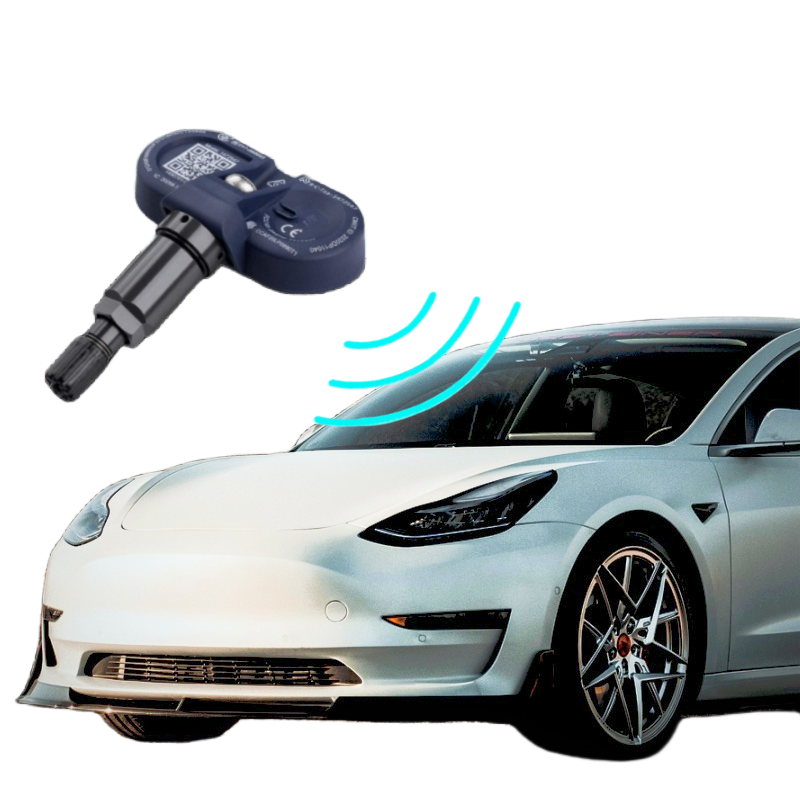

1.Bluetooth TPMS sensor offers a cost savings over factory Tesla Bluetooth sensors.
2.It is proud to announce the first and only aftermarket TPMS sensor made specifically for BLE Bluetooth Tesla applications. 3.The TPMS is engineered to exacting specifications for plug-and-play usage with Tesla vehicles originally equipped with BLE Bluetooth TPMS sensors. |
|
|
|
* No programming or calibration is required, simply install the BLE Bluetooth TPMS sensors
in your wheels and they will automatically connect with your Tesla.
* BLE Bluetooth Tesla-Spec 4.TPMS sensors are made to proprietary OEM-grade quality specifications. |
|
|
Product Packaging
Manufacturing Technique
Recommend Products
Installation Instructions
|
Matchable OE Codes for Sale in Our Store Details
|
|
|
|
|
|
|
||||||
|
36106881890
|
36106856209
|
36106855539
|
36106874830
|
36106798872
|
52933-A5000
|
56029481AB
|
||||||
|
36106856227
|
36106790054
|
36236798726
|
36106872774
|
6887140-01
|
52933-A5100
|
68249197AA
|
||||||
|
36106872803
|
LR070840
|
LR031713/AH52-1A159-CA
|
LR066378
|
LR021935
|
52933-2F000
|
68239720AC/68157568AA
|
||||||
|
LR031712/AH52-1A159-AA
|
LR058023
|
LR018860
|
LR032833/BH52-1A159-CA
|
LR021936
|
52933-2G200
|
68239720AA
|
||||||
|
LR066379
|
LR018861
|
31414189
|
31341171
|
31302096
|
52933-4D200
|
68324960AA
|
||||||
|
31341893
|
31200923
|
8651700
|
30681555
|
30748991
|
BHB6-37140
|
68249200AA
|
||||||
|
31445473
|
31445474
|
31329981
|
C2Z31510
|
C2D15550/BH52-1A159-AA
|
GN3A-37140B
|
68249201AA
|
||||||
|
C2C41655/4H23-1A159-AE
|
C2D21599
|
GX63-1A159-AA
|
C2D47173
|
C2C41656/4H23-1A159-CE
|
BBM2-37140B
|
56053030AB
|
||||||
|
C2D43636/FW93-1A159-AB
|
XR855949/4H23-1A159-AC
|
C2D21601
|
40700-3VU0A
|
40700-3JA0B
|
BHA4-37140
|
56053030AC
|
||||||
|
40700-3JA0A
|
40700-JK01A
|
40700-1LA0E
|
40700-4GA0A
|
40700-JK01B
|
BBP3-37140B
|
04727392AB
|
||||||
|
40700-1LA0D
|
40700-6WY0B
|
40700-6WY0A
|
40700-4GA0B
|
40700-4CB0B
|
GS1D-37140
|
56029526AA
|
||||||
|
40700-1AA0B
|
40700-1AA0D
|
40700-CK002
|
40700-CD001
|
40700-JA01B
|
68078768AA
|
68105280AD
|
||||||
|
40700-1AA0C
|
40700-JA00C
|
40700-CK001
|
40700-JA02B
|
40700-1PA0A
|
68078768AB
|
68105280AF
|
||||||
|
40700-JA01C
|
40700-3AN0A
|
40700-3AN0B
|
40700-3AN0C
|
40700-3AN1A
|
56029398AB
|
68252493AB
|
||||||
|
40700-3AN1B
|
40700-1LL0D
|
40700-5UV0A
|
40700-62B0A
|
40700-6WY0C
|
56029398AA
|
68038945AA
|
||||||
|
40700-EZ00A
|
40700-1AY0A
|
40700-AV600
|
40700-JY00B
|
40700-JY00C
|
56053031AD
|
56029479AB
|
||||||
|
40700-1LA0B
|
40700-1LA0C
|
40700-1LA0A
|
40700-JK00B
|
40700-JK00C
|
68001698AA
|
68313387AB
|
||||||
|
40700-JK00E
|
52933-3N100
|
52933-2M650
|
52933-1J000
|
52933-3T000
|
68241067AA
|
68078861AA
|
||||||
|
52933-B1100
|
52933-2V100
|
52933-2L600
|
52933-2J100
|
52933-D4100
|
68241067AB
|
68293199AA
|
||||||
|
52933-F2000
|
52933-D9100
|
52933-2M000
|
52933-2M550
|
52933-3N000
|
68001698AB
|
52088990AC
|
||||||
|
If you don't see the OE number you need above, please contact us!
|
|
|
|
|
|
|
||||||
