- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Magelei
-
Model Number:
-
Linda461
-
Product name:
-
Video capture card
-
Material:
-
Metal
-
USB cable:
-
Yes
-
MOQ:
-
20pcs
-
Audio and Mic:
-
Support
-
Type:
-
USB 3.0
-
Usage:
-
Video capture card
-
Support system:
-
Windows 7, 8, 8.1, 10 or later
-
Package:
-
Capture card+usb 3.0 cable+user manual
Quick Details
-
Power Supply:
-
Other
-
Input Interface:
-
HDMI
-
Resolution:
-
4k 60hz, 4k/60hz
-
Brand Name:
-
Magelei
-
Model Number:
-
Linda461
-
Product name:
-
Video capture card
-
Material:
-
Metal
-
USB cable:
-
Yes
-
MOQ:
-
20pcs
-
Audio and Mic:
-
Support
-
Type:
-
USB 3.0
-
Usage:
-
Video capture card
-
Support system:
-
Windows 7, 8, 8.1, 10 or later
-
Package:
-
Capture card+usb 3.0 cable+user manual

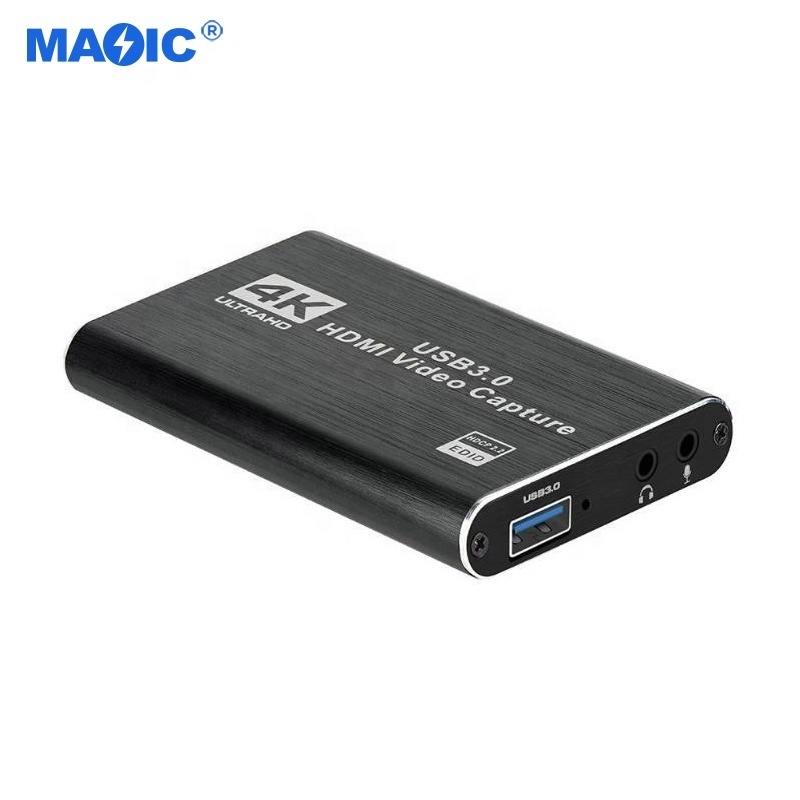

Video Capture Equipment HDMI to USB 3.0 4k 60hz Capturadora De Video HDMI Video Capture Card for Gaming Live Streaming
Product Specifications
1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300~350MB/s throughput;
3. HDMI input: 4K/30Hz,1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98,1080i 50/60, 720P 50/60,480P,576P1280x1024, 1280x960, 1024x768, 800x600, 640x480;
4. HDMI audio input: LPCM audio signal;
5. HDMI input format: compatible with HDMI1.4 standard, the maximum bandwidth supports 225MHz 4K/30Hz, 12bit deep color;
6. Output format Resolutions: 640x480/720x480/720x576/800x600/1024x768/1280x720/1280x960/1280x1024/1366x768/1360x768/1440x900/1400x900/1680x1050/1920x1080 frame rate: 25/29.97/30/50/59.94/60 fps;
7. Video sampling rate: HDMI: 165MHz;
8. Audio and video capture: it complies with UVC (USB video class) and UAC (USB audio class) standards;
9. Output color space: YUV, RGB;
10. Support operating system: Windows 7, 8, 8.1, 10 or later;
11. Software compatibility:
Adobe Flash Media Live Encoder (Windows);
Real Producer Plus (Windows); VLC (Windows);
QuickTime Broadcaster ; QuickTime Player , OBS, PotPlayer and etc.
12. Power consumption: <= 2.5W;
13. Working temperature: 0-70 degrees Celsius;
14. Storage temperature: -20-120 degrees Celsius;
15. Storage humidity: 5%-90%;
Interface Description
1. Signal indicator: When the device captures video normally, the indicator lights up.
2. Power indicator light: When the device is connected to the USB port of the computer, the indicator light is on.
3. HDMI input: This slot is the location for connecting HDMI output sources such as cameras, camcorders, game boxes, IPTV boxes, etc.
4. USB3.0 output: This slot is where you connect to the USB3.0 input of your computer or notebook.
Computer system requirements
Windows® 10 / Windows 8.1 / Windows 7 (SP1);
Desktop computer: Intel® Core™ i5-4440 3.10 GHz + NVIDIA® GeForce® GTX 660 or above;
Notebook: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above;
4 GB RAM (8 GB recommended);
Mobile phone system requirements
Android phone (supported by newer phones);
Only supports USB2, not USB3. (The reason is that the android UVC driver does not support USB3);
If it is a USB Android phone, you need to force a pure USB2 cable into USB2 mode to use it;
Customized Process
Tips
* Before placing an order, please consult customer service. The price may fluctuate. We will give you the best price.
* For customized products, please provide your brand logo source files, such as AI, PDF, CDR, PSD. If not, at least provide high-definition logo picture, we try to convert it into printable format. Customized packaging, you can choose our original packaging, of course, you can also provide your packaging design documents.
* If you only need stock samples, we recommend ordering more samples. At present, freight prices are increasing. The right order quantity will save your purchase cost. At the same time, more samples can detect the real quality of products. If you need other products, please provide photos. We will examine the internal networks and do our best to find them for you.
Our Advantages
・We've always specialised in production of video&audio data cable associated electronic products. Such as HDMI / TYPE-C / DP / DVI/ VGA / AUX / USB / SATA. ・We have a history of ten years.・Our founder is from Panasonic R & D department and has the gene of Panasonic company.・Our factory has the strength of mass production and strict quality inspection system.・We have strong OEM customization experience.・We have a strong relationship with important parts suppliers.
|
Our products have obtained many international certifications.
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
