Quick Details
-
Brand Name:
-
Ascend
-
Dimension(L*W*H):
-
4600x1700x2200mm
-
Weight:
-
20000 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Sand making compound crusher
-
Name:
-
vertical shaft impact crusher
-
Keyword:
-
Fine Stone Crusher
-
The Machines classification:
-
Quartz Sand Equipment
-
Output size:
-
3-10mm
-
Max feeding size:
-
25mm
-
After-sales Service Provided:
-
1 Year
-
Power:
-
22-110KW
-
Applicaton:
-
Small Rock Gravel Sand Crushing
Quick Details
-
Application:
-
quarry aggregates
-
Capacity(t/h):
-
50-200
-
Place of Origin:
-
Henan, China (Mainland)
-
Brand Name:
-
Ascend
-
Dimension(L*W*H):
-
4600x1700x2200mm
-
Weight:
-
20000 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Sand making compound crusher
-
Name:
-
vertical shaft impact crusher
-
Keyword:
-
Fine Stone Crusher
-
The Machines classification:
-
Quartz Sand Equipment
-
Output size:
-
3-10mm
-
Max feeding size:
-
25mm
-
After-sales Service Provided:
-
1 Year
-
Power:
-
22-110KW
-
Applicaton:
-
Small Rock Gravel Sand Crushing
Quarry mining stone rock aggregates gravel making cone crusher crushing plant

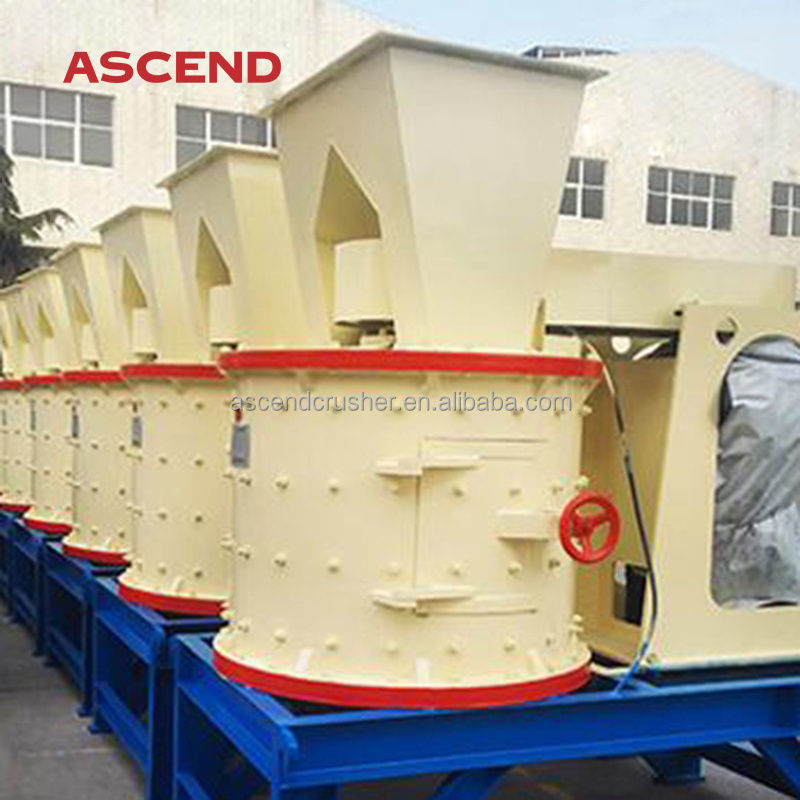

Vertical shaft sand making machine, as known as vertical plate hammer sand machine, is a new type of vertical sand machine. It is a new generation of sand machine equipment developed and produced by our company. The equipment is widely used in fine crushing of granite, basalt, river pebble, iron ore, cement clinker and other minerals. The most important feature is that it can achieve the desired discharging granularity by frequency conversion contral. It is an important equipment for producing high quality stone in high-grade highway, railway, cement, metallurgy, mechanized artificial sand machine and other industries.
The motor drives the rotor that fixed on the main bearing to run quickly toward certain direction when the machine works. The materials are fallen into the throw-up disc and impacted by the high speed strips of the throw-up disc, and then strikes with the impact board under the effect of Centrifugal Force.Because the impact board is bevel and the gravitation, the materials are threw to the taper crushing room and impacted by the high-rotating up hammerhead. After gaining sufficient energy, the materials are thrown to the impact board again and action repeats. The materials strike with each other in the crushing room and then are down to the column-shape rotor room. Then crushed, pressed, and ground and action repeats. In this way, the materials go through up, middle, and down rotor crushing rooms and crushed, pressed, and ground by the hammers and the impact boards, and finally the materials are gradually crushed into needed sizes and come out.
| Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 |
| Motor diameter(mm) | 650 | 800 | 1000 | 1250 | 1560 |
| Barrel height(mm) | 800 | 850 | 850 | 1000 | 1410 |
| Shaft speed(r/min) | 1350 | 970 | 740 | 650 | 600 |
| Input size(mm) | 50 | 70 | 100 | 100 | 100 |
| Output size(mm) | 0-5 | ||||
| Capacity(t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 |
| Motor Power | 30 | 55 | 75 | 110 | 132 |
| Rotor speed(r/min) | 1440 | 1440 | 750 | 750 | 750 |
| Weight | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 |
| Diemension(m) | 2.2*0.86*1.98 | 2.7*1.16*2 | 2.8*1.4*2.73 | 3.1*1.9*2.3 | 3.35*2.1*2.8 |
1. Crushing Equipment: jaw crusher, impact crusher, cone crusher, hammer crusher, roller crusher, fine crusher, compound crusher, stone crushing production line, etc.
2. Mobile Crushing Plant: mobile jaw crusher, mobile impact crusher, mobile cone crusher, mobile VSI sand making plant, etc.
3. Grinding Equipment: ball mill, rod mill, raymond mill, wet pan mill , etc.
4. Sand and Gravel Equipment: sand maker, VSI sand making plant, bucket type sand washer, spiral sand washer, etc.
5. Gold ore project and solutions: mobile gold trommel plant, tank leaching, heap leaching, gold ore gravity separation line, CIL/CIP, etc.
6. Mineral Processing Equipment: spiral classifier, spiral chute, shaking table, jigging machine, centrifugal gold concentrator, leaching tank, magnetic separator, flotation machine, etc.
