Quick Details
-
Housing:
-
ABS enclosure
-
Switch element:
-
ORD624
-
Type:
-
NO / NC
-
Insulation Resistance:
-
10^10 Ω
-
Max carry current:
-
1 A
-
Breakdown Voltage:
-
250 VDC min
-
Size:
-
14 x 34 x 7.6 mm
-
Installation:
-
Surface mounted with screws
-
Application:
-
Door or windows
-
Connector:
-
Optional
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Focusens
-
Model Number:
-
ORD624 AT1013
-
Housing:
-
ABS enclosure
-
Switch element:
-
ORD624
-
Type:
-
NO / NC
-
Insulation Resistance:
-
10^10 Ω
-
Max carry current:
-
1 A
-
Breakdown Voltage:
-
250 VDC min
-
Size:
-
14 x 34 x 7.6 mm
-
Installation:
-
Surface mounted with screws
-
Application:
-
Door or windows
-
Connector:
-
Optional

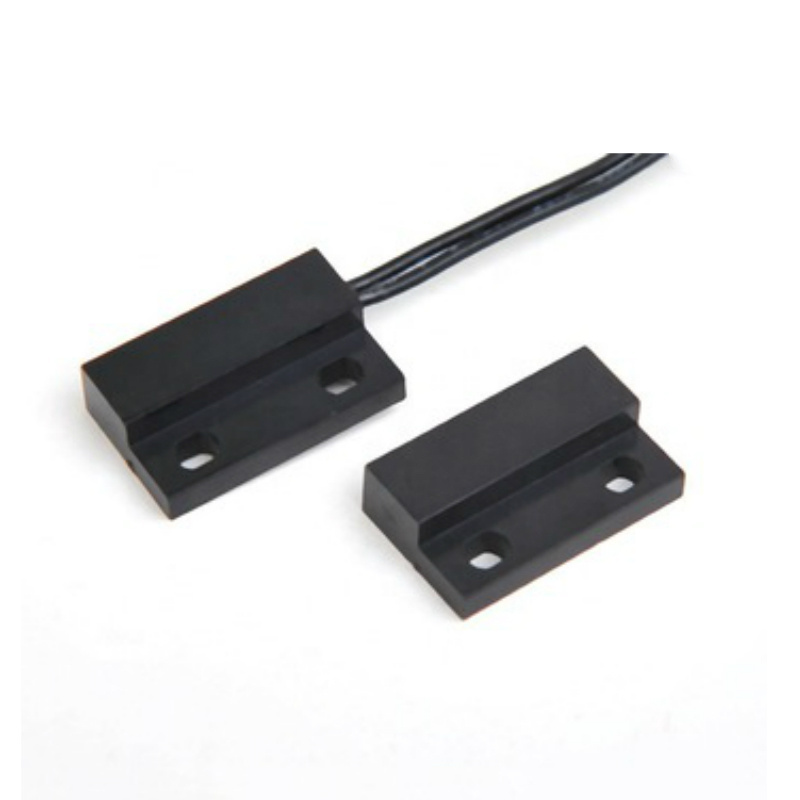

This sensor is essentially a reed switch, encased in an ABS plastic shell.
They're often used to detect when a door or drawer is open, which is why they have mounting tabs and screws.
There are Normally Open (NO) and Normally Closed (NC) types.
A normally open (NO) switch has contacts that are open or disconnected in their unactuated (normal) position.
A normally closed (NC) switch has contacts that are closed or connected in their unactuated (normal) position.
|
Features
|
|
|
|
|
||||
|
1
|
Normally open & normally closed reed switches.
|
|
|
|
||||
|
2
|
Magnetically-operated proximity sensor.
|
|
|
|
||||
|
3
|
Operates through non-ferrous materials such as wood, plastic or aluminum.
|
|
|
|
||||
|
4
|
Rated for high-temperature applications up to 125°C.
|
|
|
|
||||
|
5
|
Cross-slotted mounting holes for optimum adjustability.
|
|
|
|
||||
|
6
|
Customer-defined sensitivity.
|
|
|
|
||||
|
7
|
Choice of cable length and connector.
|
|
|
|
||||
* Position and limit switching
* Security
* Linear actuators
* Security
* Linear actuators
* Door switch
Flexible
customize the product specifications and shape to match your applications.
