Quick Details
-
Product name:
-
Original Huawei GPON OLT CLASS C++ Optical PON Module
-
Fiber Mode:
-
Single Mode Fiber
-
Rate:
-
1.25G
-
Wavelength:
-
1310nm
-
Average Output Power:
-
+5 ~ +7.5dBm
-
Types of Interface:
-
LC
-
Power supply:
-
3.3V
-
Split ration:
-
1:64,1:128
-
Application:
-
GPBD/GPFD/GPHF/GPSF/GPUF/GPLF
Quick Details
-
Type:
-
OLT
-
Model Number:
-
GPON OLT CLASS C++, GPON-OLT-CLASS C++
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Original Huawei GPON OLT CLASS C++ Optical PON Module
-
Fiber Mode:
-
Single Mode Fiber
-
Rate:
-
1.25G
-
Wavelength:
-
1310nm
-
Average Output Power:
-
+5 ~ +7.5dBm
-
Types of Interface:
-
LC
-
Power supply:
-
3.3V
-
Split ration:
-
1:64,1:128
-
Application:
-
GPBD/GPFD/GPHF/GPSF/GPUF/GPLF

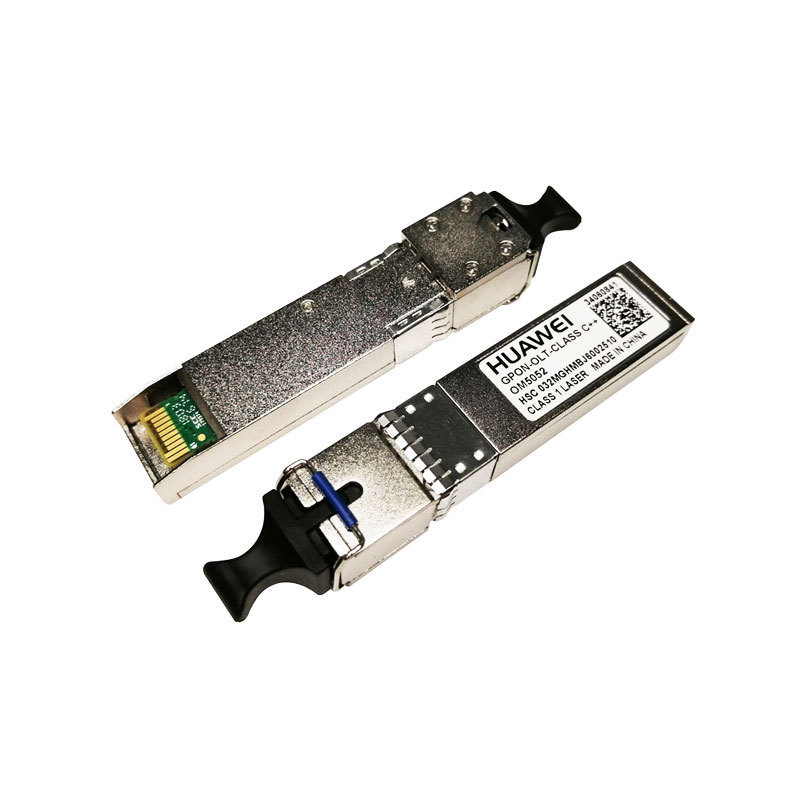

Original huawei GPON OLT Class C++ SFP Modules +7.5dbm
Product Information
Product application
Huawei OLT GPBD/GPFD/GPHF/GPSF/GPUF/GPLF business/service card
Technique Parameter
A GPON optical module is connected to one SC optical fiber to provide GPON access service.
| No. | 1 | 2 | 3 |
| Type | GPON class B+ | GPON class C+ | GPON class C++ |
| Operating Wavelength | Tx: 1490 nm | Tx: 1490 nm | Tx: 1490 nm |
| Rx: 1310 nm | Rx: 1310 nm | Rx: 1310 nm | |
| Encapsulation Type | SFP | SFP | SFP |
| Port Rate | Tx: 2.49 Gbit/s | Tx: 2.49 Gbit/s | Tx: 2.488 Gbit/s |
| Rx: 1.24 Gbit/s | Rx: 1.24 Gbit/s | Rx: 1.244 Gbit/s | |
| Minimum Output Optical Power | 1.50 dBm | 3.00 dBm | 5.00 dBm |
| Maximum Output Optical Power | 3.00 dBm | 6.00 dBm | 8.00 dBm |
| Maximum Receiver Sensitivity | -28.00 dBm | -32.00 dBm | -35.00 dBm |
| Optical Connector Type | SC | SC | SC |
| Optical Fiber Type | Single-mode | Single-mode | Single-mode |
| Overload Optical Power | -8.0 dBm | -12.0 dBm | -15.0 dBm |
| Extinction Ratio | 10 dB | 8.2 dB | 8.2 dB |
