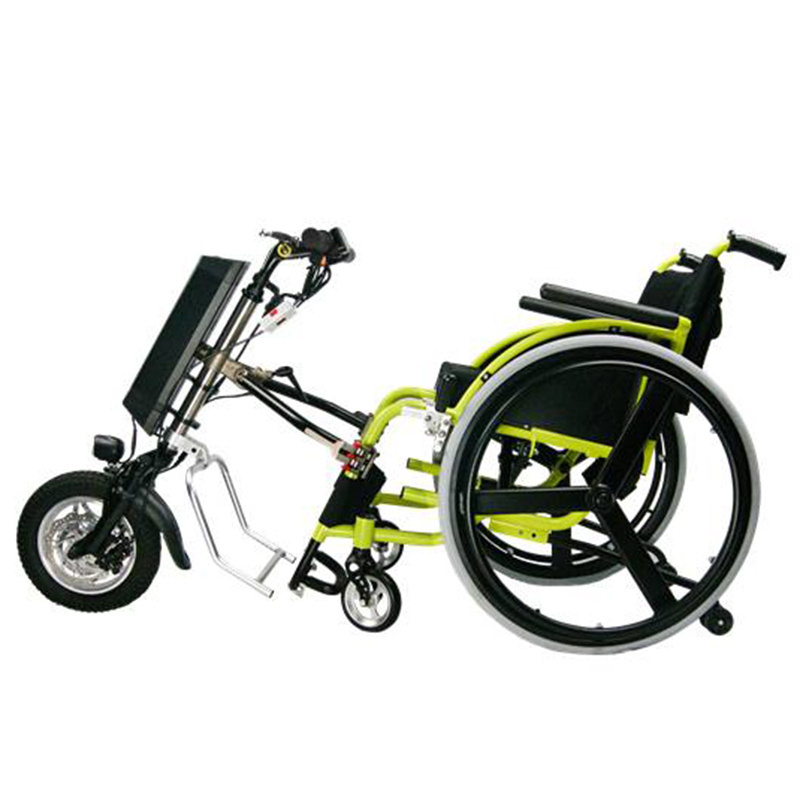

CE approved forward and back function electric handcycle / E-Handcycle electric wheelchair motor conversion kit

CE approved forward and back function electric handcycle / E-Handcycle electric wheelchair motor conversion kit

Mainly specs sheet

Material of Frame : Alloy Aluminum

Handlebar: Alloy, Adjustable ,default is straight, Bent type can be optional

Construction: Alloy suspension connection , Quick release design ends to wheelchair  easy handling, can suit almost all types wheelchairs universally.

Motor: br u shless hub motor, 250w (200w is available)

Battery : 36V 10.4 Ah Samsung Lithium battery

Charger: 42v 2A 50/60HZ, 110V~240V A/C input

Charging time: 4~6 Hour

Display: LCD  display

Wheel: 12 " X 2.125  road tire, Alloy rim

Brake : double side disc brake

Throttle : twisting hand throttle .

Reverse Gear: Default,N/A. can be added according to customer's request

Max. speed: 1 5km/h

Driving range : 4 5km depend on the battery capacity/road condition/driver weight & driving habit.

Front light: LED front ligh t, can be with Horn intergrated.

Quality warranty period: 2-year for framework& battery, rest 1year.

Production lead time : 25-35 day s, sample could arrange in 7 -15 working days

Packing Size: Strong paper carton, 1pcs/ctn, 97x18x43 cm, 0.075CBM N.W./G.W. : 15KG/18KG

Conveyance: 390PCS/20'GP, 936PCS/40'HQ

More pictures

Front brushless geared hub motor for power supply. Brushless motor has high reliability, good stability and strong adaptability, simple maintenance and maintenance. Strong power, continuous output . 12'' x 2.125 wheel and tires.

Headlight

Front LED headlight

Disc brake

High quality double disc brake system

Battery

High quality lithium battery. Technology giving you the best performance possible. High quality batteries are designed to deliver the most reliable and long lasting power.

Package

Factory pictures

Package and delivery

More optional

You can directly click the following picture, fould more ebikes.

Folding  E bikes

City  E bikes

MTB  E bikes

Fat tire  E bikes

1. Warranty policy

a.)     For main electronic parts, charger, controller and battery, we provide 6 months warranty.

b.)     For motor, we provide 12 months warranty.

c.)     For frame, handlebar, stem and wheel rim we provide 2 years warranty.

1.1 The following conditions, not including in warranty policy

a.)     Any damages caused by human factor.

b.)     Dismounting any parts without professional technical people.

c.)     Use other parts in our electric bike or scooter.

d.)     Damages caused by traffic accident and other accident.

e.)     The problem caused by overloading.

2. Technical support

a.)     We provide “electric circuit diagram” for each model.

b.)     We can train customer’s 1 or 2 technical workers for free.

c.)     When oversea customers meet serious problem, they can not work out by technican, we will dispatch engineer to customer’s company to give help.

FAQ

Q: Why choose an electric bike?

A: You can not only ride it as ordinary bike but also choose battery powered mode when you get tired, and you don't need to get a license and pay parking fee.

Q:Can you change configuration for me?

A:No problem, we can do customize, so we can change configuration based on your request.

Q: Do you have the e-bikes in stock?

A: No, to keep the quality, all e-bikes will be newly produced against you order, including the samples.

Q: What colors are available, can we attach our logo or brand on the bicycles?

A: We have color options, also we can change the colors and attach your logo and brand based on your request, please contact us to ask for more.

Q: Can I order some samples at first to see the quality?

A: No problem, if your order is less than 10 pcs, we need to charge some extra sample fee, the amount is based on your specific quantity, when your orders reach 1*40' container, we can refund you the sample fee.

Q: Can I mix different models in one container?

A: Yes, different models can be mixed up in one full container.

Q: What's your payment terms?
A: Payment term is 30% TT in advance , 70%balance against copy of BL. The samples payment will be 100% prepaid.
