PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line
PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line
PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line
PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line
PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line
PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line
PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line
PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line

PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line

FOB Reference Price: Get Latest Price
≥1 Sets
US $18000
≥2 Sets
US $17900
≥3 Sets
US $17800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Brand Name:
Hanhai
Voltage:
380V50HZ
Dimension(L*W*H):
20M*2M*2.5M
Power (kW):
110
Weight:
9000 KG
Name:
PET PP Corrugated Sheet Extruder Making Machine
Raw material:
PET PP Pellet
Inverter:
ABB or Delta Brand
Feature:
Competitive price/Long service life/High-accuracy
Cooling way:
Recycling Water Cooling
Motor:
SIEMENS Brand
PLC:
Siemens
Temperature Control:
Omron
Max output:
200-600kg/h

Quick Details

Screw Design:
Single-screw
Screw L/D Ratio:
33:1
Screw Speed (rpm):
39 rpm
Place of Origin:
Shandong, China
Brand Name:
Hanhai
Voltage:
380V50HZ
Dimension(L*W*H):
20M*2M*2.5M
Power (kW):
110
Weight:
9000 KG
Name:
PET PP Corrugated Sheet Extruder Making Machine
Raw material:
PET PP Pellet
Inverter:
ABB or Delta Brand
Feature:
Competitive price/Long service life/High-accuracy
Cooling way:
Recycling Water Cooling
Motor:
SIEMENS Brand
PLC:
Siemens
Temperature Control:
Omron
Max output:
200-600kg/h
Product Description

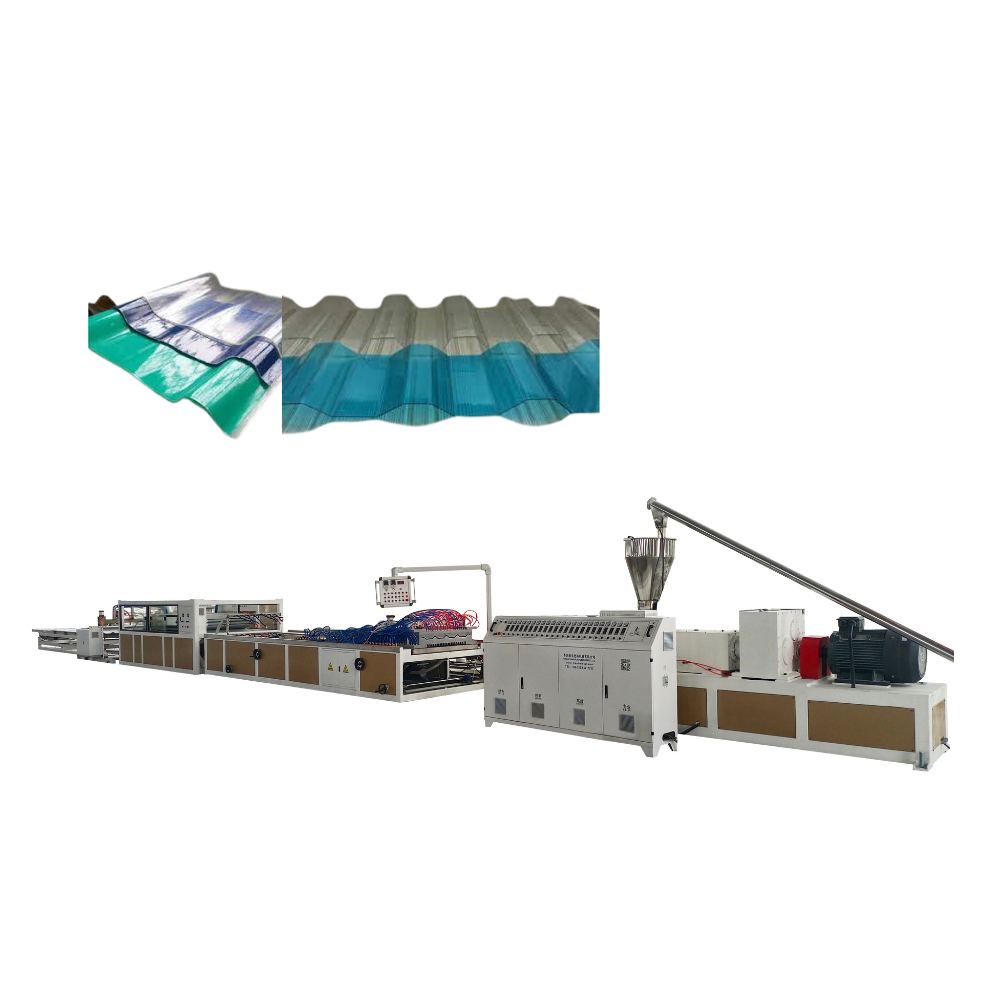

PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line

This production line developed by Hanhai company is featured of unique structure, high degree of automatic, easy operation and stable reliable continuous manufacture performance.

PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line consists of the following seven parts:
NO.
Name
Quantity
1
Automatic loading system
1set
2
Double screw extruder
1set
3
Mould
1set
4
Forming machine Bracket
1set
5
Haul-off machine
1set
6
Cutting machine
1set
7
Stacker
1set
Extruder Model
width
Production Capacity
（kg/h）
Total power                     (kw/h)
SJSZ80/156
1000MM
300
100
Detailed Images
1. PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line Double screw extruder(with automatic feeding system)
(1) Motor: Siemens
(2) Inverter: ABB/Delta
(3) Contactor: Siemens
(4) Relay: Omron
(5) Breaker: Schneider (6) Heating method: C ast aluminum heating
(7) Material of screw and barrel: 38CrMoAlA.
2. PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line Mould
(1) Material: 40GR
(2) Size: Customized
3. PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line Calibrating Cooling Table
(1) Stainless steel clamping platform
(2) M aterial: Stainless steel
(3) Diameter: Customized
4. PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line Haul-off Machine
(1) Driving motor power: 11 kw
(2) Drawing speed: 0.2～5 m/min
(3) Haul-off method: 6 caterpillars

5. PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line C utting Machine
(1) Method: Saw cutting
(2) Cutting scope: Customized
(3)Power :3KW
6. PC PP PET Corrugated Sheet Board Wave Roofing Tile Flexible Waterproof Forming Extrusion Machine Line Stacker
(1) Length: 2.5 m
(2) Width: 1m
(3) Material: Stainless steel


Features:


1. Adopt conical twin screw extruder . 2.Supply formulation and raw material purchase. 3.Low production cost and excellent product function. 4.Single layer or A+B/A+B+C/A+B+A multi-layer avaibable.


Advantage:
moderate rigidity&strength, good flexibility, creep resistant,environmental stress crack resistance and favorable hot melting property.
Final products
Packing & Delivery
PVC Roof Tile Production Line PET PC Corrugated Hollow Sheet Plate Transparent Tile Making Machine internal inspection,boot test, Moistureproof processing,composite material box,load container.
