Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
deutz
-
Dimension(L*W*H):
-
518*525*709mm
-
Weight:
-
155kg
-
Rated power/speed:
-
1500kw/1800kw
-
Bore x stroke(mm):
-
100*105
-
Cooling method:
-
Air cooled
-
Intakemethod:
-
Natural aspiration
-
Rated Power:
-
1500kw/1800kw
-
f2l511:
-
deutz air cooled diesel engine 15 hp
-
Certification:
-
ISO9001
Quick Details
-
Displacement:
-
std, 1.651L
-
Emission Standard:
-
std
-
Power:
-
1500kw/1800kw
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
deutz
-
Dimension(L*W*H):
-
518*525*709mm
-
Weight:
-
155kg
-
Rated power/speed:
-
1500kw/1800kw
-
Bore x stroke(mm):
-
100*105
-
Cooling method:
-
Air cooled
-
Intakemethod:
-
Natural aspiration
-
Rated Power:
-
1500kw/1800kw
-
f2l511:
-
deutz air cooled diesel engine 15 hp
-
Certification:
-
ISO9001

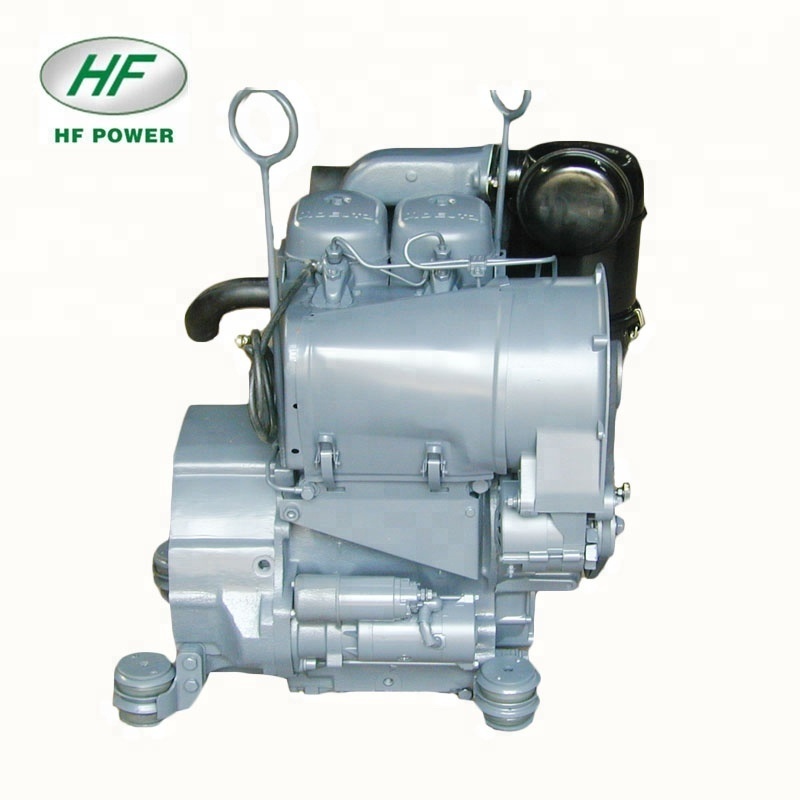

F2L511 2 cyl 4 stroke deutz air cooled diesel engine 15 hp
technical datasheet:
|
Model |
F 2 L511 |
|||||
|
Cylinder number |
2 |
|||||
|
Chamber type |
Direct injection |
|||||
|
Bore x stoke,mm |
100*105 |
|||||
|
Speed,r/min |
1500 |
1800 |
2000 |
2500 |
2800 |
3000 |
|
12-hour output rating (kw/hp) |
11.5/ 15.6 |
14.6/ 19.9 |
16.5/ 22.4 |
19.5/ 26.5 |
21/ 28.5 |
23 /32 |
|
Cooling method |
Air cooled |
|||||
|
Starting manner |
Electr ic |
|||||
|
Net weight,kg |
190 |
|||||
|
Gross weight,kg |
230 |
|||||
|
Overall dimensions (L*W*H),mm |
518 *5 25 * 709 mm |
|||||
Deutz F2L511 diesel engine configuration :
1. oil filter
2. diesel filter
3. oil bath air filter
4. 12V /24V starting motor
5. 12V /24V charged generator
6. 4 engine elastic supports
7. flywheel:6.5,flywheel housing: SAE 5
8. cylinder head temperature sensor and alarm switch
9. oil pressure sensor and alarm switch
10. diesel engine accelerator adjust device
11. mechanical adjusting speed device
12. diesel engine paint(gray)
13. exhaust manifold silencer
14.mechanical shut down 12V/24V
Deutz F2L511 diesel engine deutz air cooled diesel engine 15 hp :
Some details for our engines:
Control panel
Exhaust muffler has two types ,
When the engine use in inside
When the engine use in outside
Deutz logo on the cylinder head of the engine :
We also supply our deutz diesel engine spare parts for our customers . Any requirements , kindly contact my skype: monica56
