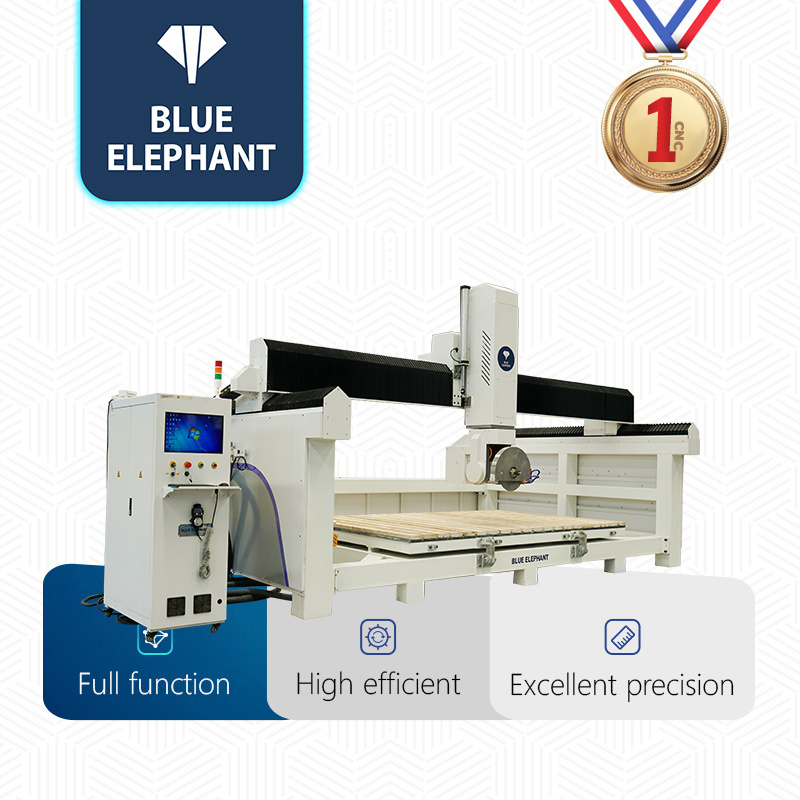

Blue Elephant Cnc China Stone Machinery 5 Axis Cnc Stone Cutting Bridge Saw For Granite Marble

Blue Elephant Cnc China Stone Machinery 5 Axis Cnc Stone Cutting Bridge Saw For Granite Marble

FOB Reference Price: Get Latest Price

≥1 Sets

US $15000

≥10 Sets

US $10000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: High Speed

Place of Origin:: Shandong, China

Brand Name:: blue elephant

Voltage:: 380V/3P/50HZ

Dimension(L*W*H):: 5.85x4.5x3.3m

Weight:: 1500 kg

After-sales Service Provided:: Video Technical Support Online Support

Usage:: Granite Marble Stone Processing

Function:: Stone Engraving Carving Cutting

Cutting materials:: Stone Marble Granite

Feature:: High Cutting Efficiency

Control system:: Blue Elephant customized system

Spindle speed:: 30m/min

Working area:: 3200x2000m

Max. Cutting width:: 100mm

Inverter:: 15KW BRICH

Quick Details

Type:: Bridge Saw

Power:: 1300w

Cutting thickness (max):: 100mm

Production Capacity:: High Speed

Place of Origin:: Shandong, China

Brand Name:: blue elephant

Voltage:: 380V/3P/50HZ

Dimension(L*W*H):: 5.85x4.5x3.3m

Weight:: 1500 kg

After-sales Service Provided:: Video Technical Support Online Support

Usage:: Granite Marble Stone Processing

Function:: Stone Engraving Carving Cutting

Cutting materials:: Stone Marble Granite

Feature:: High Cutting Efficiency

Control system:: Blue Elephant customized system

Spindle speed:: 30m/min

Working area:: 3200x2000m

Max. Cutting width:: 100mm

Inverter:: 15KW BRICH

Products Description

Blue Elephant Cnc China Stone M achinery 5 Axis Cnc Stone Cutting Bridge Saw For Granite Marble

This stone CNC machining center can cut quartz, marble, granite, and rock slabs with a powerful saw blade. It combines a saw blade and CNC router tools to achieve multiple advanced functions. For example, cutting and milling straight and inclined edges, chamfering, cutting arc edges, polygon, edge milling, edge tracking, and other powerful functions. The 5 axis bridge saw is widely used in the stone processing plants, kitchen countertop processing, background wall profiling, and other fields. It is the ideal machine for cutting stone slabs with different shapes and sizes.

1. It adopts 5 axis bridge cutting head, which is independently researched and developed and adopts the cast rotating bracket. This ensures good stability and flexibility during operation.

2. This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head.

3. It has built-in CAM software in the control system for the convenient of drawing designs and programming. Besides, it’s easy to learn the software to make designs.

4. The worktable can flip automatically up to 80 degrees, reducing human labor and facilitating the unloading process.

5. It is capable of cutting lengths of up to 2800mm, widths of 1200mm and thicknesses of 100mm.

6. The table automatically tilts up to 80 degrees. And the spindle is automatically rotated 90° or 360°by hydraulic pressure.

Product Paramenters

Working travel	X, Y, and Z 32002000400mm C axis ±360° A axis 0-90°
Moving speed	Xaxis 30m/min Yaxis 30m/min Zaxis 15m/min
Servo motor	Xand Y 1300W absolute servo motor Zaxis 1300W absolute servo motor with brake A and C 1000W absolute servo motor
Guide rail	X, Y, and Z: # 30
Rack	X、Y 2MT-WIN
Worktable	Structure Square timber Worktable size 3200×2000mm Turning angle 0-80° Max. weight for turning 800KG
Saw	Dimension 450mm Max. cutting thickness 100mm
Reducer	X/Y: Japan SHIMPO
Saw motor	11KW motor, rated: 3000r/min
Inverter	15KW BRICH
Control system	Blue Elephant customized system (built-in CAM software)
Low-voltage electronics	French SCHNEIDER
Working air pressure	0.7-0.8Mpa
Voltage	380V/3P/50HZ

Electronic Components

Using the standard components with CE certification, such as Germany Schneider company.

Guide Rail

Taiwan guide rail which ensure high weigh capacity, high precision, and stable performance.

Motor and Driver

Japan YASKAWA Servo motors & drivers from Japan, which ensurs the machine's stronger strength and high accuracy.

Spindle

5.5 kw mechanical main spindle, which is durable and has a strong power.

SYNTEC Control System

This machine adopts Taiwan SYNTEC control system. With an open PLC program, customers can plan according to processing needs.

Tool Magazine
