Double swing powder coated high security aluminum gate

Double swing powder coated high security aluminum gate

Gates can be devided many kinds, such as

single gate,

double gate,

electrical gate (wireless control gate),

chain link gate,

farm gate,

stainless steel gates and so on.

Now let us introduce one by one:

1. Single gate:

Single gate usually with the width of 1-1.5 meters, height: 0.8-2 meters.

Material: hot-dip galvanized steel tube

Surface finish: powder coated

Post: 60*60mm, 80*80mm, 100*100mm.

Gates warranty: at least 20 years

2. Double swing gate:

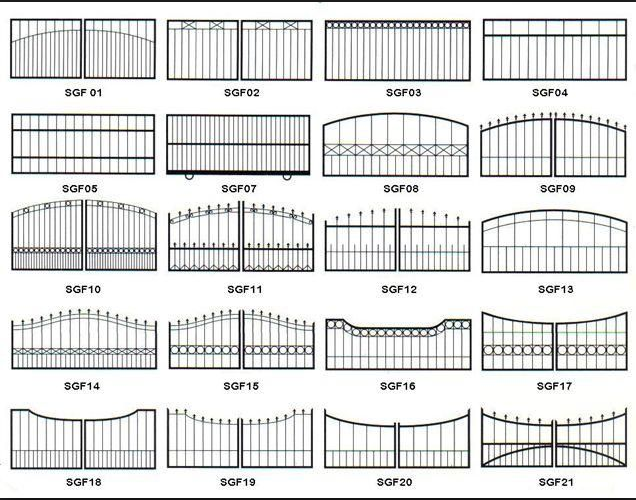

Double swing gate can be designed into many differient style like the above pictures.

Double gate usually with the width of 3-5 meters, height: 1.5-2.5 meters.

Material: hot-dip galvanized steel tube

Surface finish: powder coated

Post: 60*60mm, 80*80mm, 100*100mm, 120*120mm, 200*200mm, 400*400mm

Gates warranty: at least 20 years

3. Electro gate ( Wireless control gates)

Wire less control gate installation:

Description for the above picture:

1. Heavy duty rollers:

The heavy duty rollers fits between the gate and the bolt on horizontal Guide Rail eliminating the need for standard " pinch rollers" and allows for the gate to have a curved top or non rectangulardesign.

2. Guide rail:

The guide rail bolts to either end of the gate at the side and has a stabilizer bracket ( shown in image #2) at eh center point of the gate.

3. Frame extension:

The slider frame extension is what allows rhe slider guide to hold the gate upright in the closed position. Non-reach-through wire mesh is attached to the back frame at the factory to main gate is supplied with every gate for attachment on site by the installer. Alrernative style: the gate design can be continue into this area.

4. V-track:

the galvanized "V" track can either be anchor-bolted to an exsisting driveway or set in concret while pouring a new grade beam. The gate rolls open and closed on this track so it must be twice as long as the gap opening the gate is securing.

5. Chain attach brackets:

Most slide gate openers are chain driven. Our system used bolt-on chain attach bracket which can be vertically adjusted to align with the chain from opener. This facilitates the installation.

6. Heavy dutu chain:

The heavy duty chain attaches to the adjustable chain attach bracket at each end of the gate and passes through the drive sprocket of the polaris 2500SL gate opener ( Show in image #8)

7. Single or Bi-parting gates:

Asingle slide gate may be used for gap openings upto 18ft wide. Gates longer than 18ft must be bi-partubg ( requires two slider guiders guides and openers, as shown in the installation pictured above). For single left sliding gate, a Catcg Pose is recommended to add stability.

8. Built -in gate opener Plarform:

The amazing slider guide also features a mounting plantforn ar the bottom for attaching the gate opener. This eliminates the need to pour a concrete pad for the opener, saving you time and money. The amazing slider guide roller placement and gate platform placement are both adjustable vertically for use with various gate heights for a troble free installation.

Wireless control gate motor picture show:

The main technical parameters:

Power voltage	Motor power	Motor speed	Opening speed	Output torque	Limit swith	Base	Operting ambient temperature
220V, 110V, 50-60 HZ	370W	1400 rolls/minuts	12m/minut	>16N.m	Magneticor or Elastic	Aluminum alloy	-30 - +60

4. Chain link gates:

Chain link gates:
Material: Low carbon steel wire and tube

Surface finish: Hot-dip galvanized or PVC coated

Mesh: 50*50mm, 60*60mm

Tube:  Tube diameter: 32mm, 36mm, 48mm, 60mm    Thickness: 1.0-3mm

5. Farm gates:

Farm gates:

Material: Hot-dip galvanized tube

Surface finish: Powder coated

Tube:  Tube diameter: 32mm, 36mm, 48mm, 60mm    Thickness: 1.0-3mm

Post: Tube diameter: 48mm, 60mm   Thickness: 1.5-3.0mm

Stainless steel gates:

Stainless steel gates:

Material: Stainless steel 201, S.S 304, s.s 316, S.S 316L

Tube:  Tube diameter: 32mm, 36mm, 48mm, 60mm    Thickness: 1.0-3mm

Below is our company qualification for your reference:

Any kinds of gate you are interested in, please do not hesitate to contact us.We will use our action to prove that you choose us is absolutely right.
