Quick Details
-
Brand Name:
-
SAIER
-
Model Number:
-
SEN-SSi45
-
Material:
-
Stainless Steel
-
Color:
-
Silver
-
Tyoe:
-
Normally Open
-
Output Signal:
-
Switch Signal, Contact Signal
-
Connection:
-
Fixed Screw M10
-
Operating Voltage Range:
-
Below DC220V
-
Maximum Operating Electric Current:
-
1.0 A
-
Line Specification and Install Direction:
-
could be Customized
-
Water Temperature:
-
less than 120 ℃
-
insulated resistor:
-
>100MΩ
Quick Details
-
Grade:
-
DIY, Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAIER
-
Model Number:
-
SEN-SSi45
-
Material:
-
Stainless Steel
-
Color:
-
Silver
-
Tyoe:
-
Normally Open
-
Output Signal:
-
Switch Signal, Contact Signal
-
Connection:
-
Fixed Screw M10
-
Operating Voltage Range:
-
Below DC220V
-
Maximum Operating Electric Current:
-
1.0 A
-
Line Specification and Install Direction:
-
could be Customized
-
Water Temperature:
-
less than 120 ℃
-
insulated resistor:
-
>100MΩ

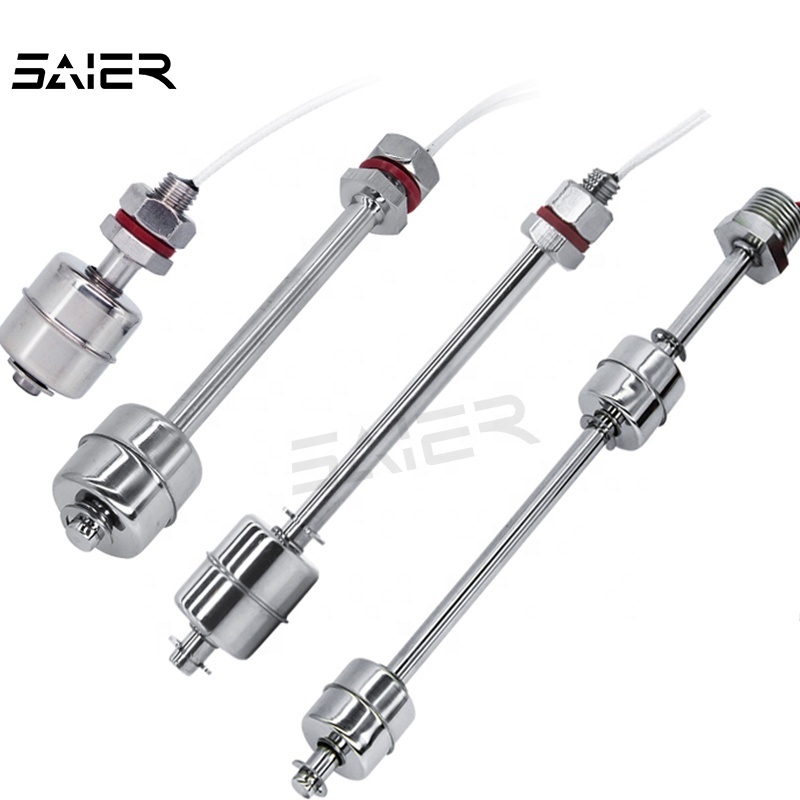

45mm Stainless Steel Float Level Switch 220v Liquid Level Sensor Switch Single Float Ball On Off Vertical Float Switch
Product Description
|
Product Name
|
Stainless steel water tank float level switch control
|
|
|
|
|
||||
|
Material
|
Stainless steel #304
|
|
|
|
|
||||
|
Connection
|
M10
|
|
|
|
|
||||
|
Style
|
Normally opened, vertical mounted
|
|
|
|
|
||||
|
Contact Capacity
|
AC220v/1A; DC24V/0.5A
|
|
|
|
|
||||
|
Function
|
Float Switch, apply to level control and alarm of all kinds of industry such as electronic, electric power, chemical,
watertreatment, water supply and drainage. |
|
|
|
|
||||
|
Features
|
The working principle of stainless steel vertical float level switch is direct and simple. Set one point or multipoint of magnetic switch in sealed unmagnetic metal or industrial plastic tube. Fix the float with inner magnetic system to a certain place of magnetic switch in the pipe and let the float drift up and down; utilize the inner magnetic system in the float to trigger the
open and close of magnetic switch to operate and control the liquid level. |
|
|
|
|
||||
Impeller Flowmeter
Application: Coffee machine & capsule coffee machine.
Material: Food grade
