Quick Details
-
Weight:
-
5150kg, 5750 kg
-
Working Pressure:
-
30 bar
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Air Compressor Machine
-
Brand:
-
ABT
-
Model:
-
LUY400-30
-
Pressure:
-
30bar
-
Engine:
-
c-ummins engine
-
Power:
-
410 kw
-
Air Delivery:
-
40m³/min
-
Shipping dimensions:
-
4486*2100*2180
-
Machine size:
-
6120*2100*2570
Quick Details
-
Place of Origin:
-
Qingdao
-
Model Number:
-
LUY400-30
-
Dimension(L*W*H):
-
4486*2100*2180
-
Weight:
-
5150kg, 5750 kg
-
Working Pressure:
-
30 bar
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Air Compressor Machine
-
Brand:
-
ABT
-
Model:
-
LUY400-30
-
Pressure:
-
30bar
-
Engine:
-
c-ummins engine
-
Power:
-
410 kw
-
Air Delivery:
-
40m³/min
-
Shipping dimensions:
-
4486*2100*2180
-
Machine size:
-
6120*2100*2570
Product Overview

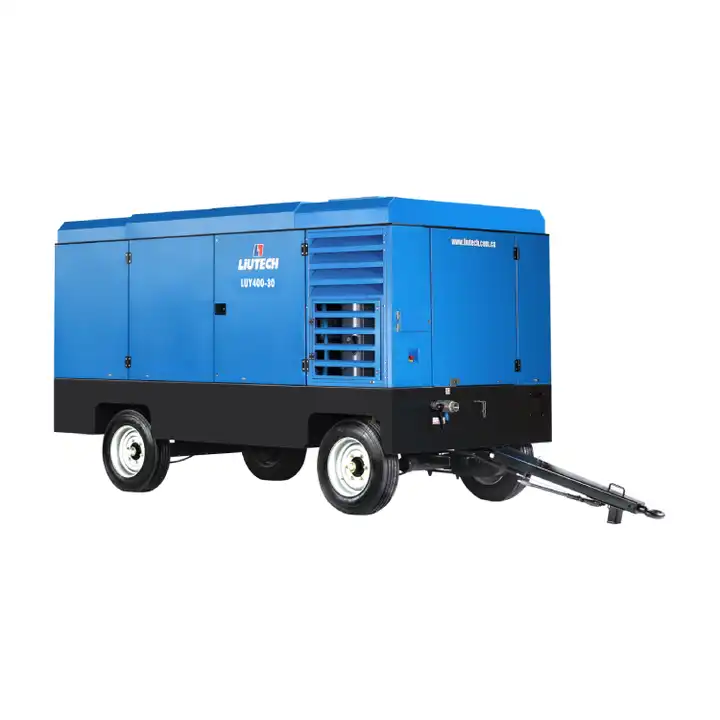

Screw air compressor LUY400-30
From the mining of polymeric minerals, limestone to metallic minerals, blast hole drilling construction is mostly used in harsh and remote areas. Such harsh working environments require sturdy and stable equipment to perform tasks. Fidelity mobile air compressors are equipped with low-temperature and high-altitude start-up packages, and large-capacity diesel tanks can meet the needs of uninterrupted long-term operation and other satisfactory solutions. Simple equipment operation and convenient maintenance also ensure the maximum working time.
Application examples: Fidelity mobile machines are suitable for various types of mineral mining and provide power for various types of pneumatic drilling rigs. Drilling in mines to mine small boulders, and then obtain valuable minerals or process them into smaller particles or powders to make cement, etc., are widely used in iron ores, copper mines, gold mines, or cement plants .
PRODUCT SPECIFICATIONS
|
Working pressure (bar)
|
30
|
|
Volumetric flow rate (m³/min)
|
40
|
|
Noise decibel (sound pressure, 7 meters away)
|
83±3
|
|
Fuel tank capacity (L (gal))
|
780
|
|
Compressor oil capacity (L)
|
105
|
|
Outlet valve inch-quantity*size
|
1*G2 1*G3/4
|
|
Engine brand
|
cummins
|
|
Engine model
|
QSZ13-C550-30
|
|
Engine (kw)
|
410
|
|
Maximum engine speed (rpm)
|
1850
|
|
Engine idle number (rpm)
|
1300
|
|
Skid-mounted transportation dimensions (mm)
|
4486*2100*2180
|
|
Weight (kg)
|
5150
|
|
Dimensions with traveling parts, drawbar lowered (mm)
|
6120*2100*2570
|
|
Weight (kg)
|
5750
|
