Quick Details
-
Brand Name:
-
SOLID
-
Size:
-
DN50~DN600
-
Type:
-
Straight-through, Gate Valves
-
Temperature:
-
-196C~450C
-
operator:
-
hand wheel
-
wedge:
-
rubberizing for drinking water
-
Connection Ends:
-
Flange
-
Seating:
-
underground
-
Body:
-
cast iron painted with epoxy
-
Packing:
-
Wooden Case
-
Certificate:
-
CE
Quick Details
-
Port Size:
-
standard
-
Place of Origin:
-
Shanxi, China
-
Model Number:
-
Steel Gate Valve
-
Brand Name:
-
SOLID
-
Size:
-
DN50~DN600
-
Type:
-
Straight-through, Gate Valves
-
Temperature:
-
-196C~450C
-
operator:
-
hand wheel
-
wedge:
-
rubberizing for drinking water
-
Connection Ends:
-
Flange
-
Seating:
-
underground
-
Body:
-
cast iron painted with epoxy
-
Packing:
-
Wooden Case
-
Certificate:
-
CE

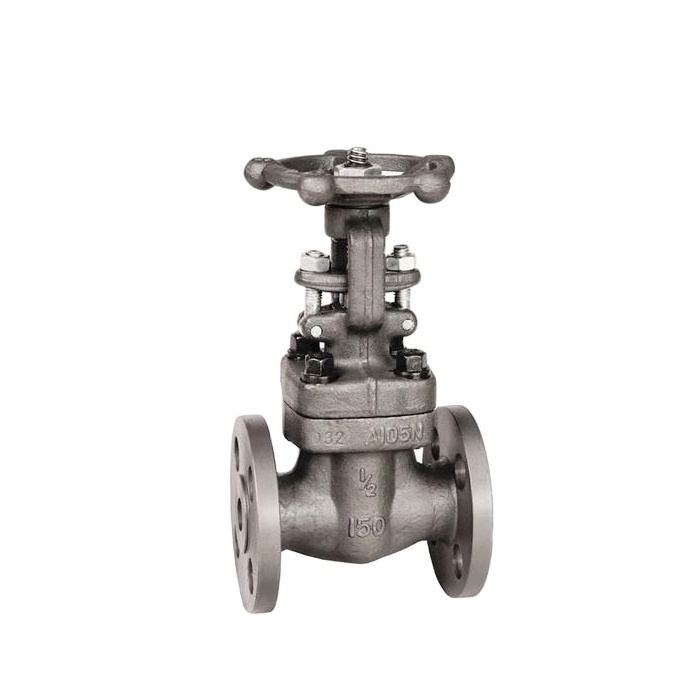

API 600 602 603 API 6D Class150lb Forged Flanged Ends Cast Steel Gate Valve
Design and Manufacture: Cast steel gate vlave to API 600(ISO 10434) or API 6D, cast stainless steel gate valve to API 603 or API 600; Forged steel gate valve to API 602
Inspection and Test: ASME B16.5(for NPS≤24); ASME B16.47 series B, API 605 or ASME B16.47 series A, MSS SP-44 (for NPS bigger than 24)
End flange dimension: API 598, API 600 or API 6D
BW end dimension: ASME B16.25
Socket-weld dimension: ASME B16.11
Face to face and end to end: ASME B16.10
Pressure-temperature ratings: ASME B16.34
Design of Disc: Gate valves with NPS ≥2 are of wedge flexible gate, Gate valves with NPS smaller than 2 are of wedge solid gate.
Application
Be used widely in metallurgy,gas,petrochemical industry,power network,and environmental protection.
