Quick Details
-
Max. Spindle Speed (r.p.m):
-
5000 r.p.m
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Z Axis)(mm):
-
2000 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WADJAY
-
Model Number:
-
CK6140
-
Voltage:
-
380V
-
Weight (KG):
-
6500
-
Product name:
-
CNC Lathe Mechine
-
Machine Type:
-
Flat Bed CNC Lathe
-
Function:
-
Machining Metal
-
Control system:
-
SIEMENS GSK FANUC (optional)
-
Spindle speed:
-
150-2500rpm
-
Turret Type:
-
4/6/8 Station Electric Turret
-
Chuck:
-
Manual/Hydraulic 3 Jaw Chuck
-
Max.swing over bed:
-
400 500 610 800
-
Accessory:
-
Tool Box
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
2000
-
Year:
-
2022
-
Max. Spindle Speed (r.p.m):
-
5000 r.p.m
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Z Axis)(mm):
-
2000 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WADJAY
-
Model Number:
-
CK6140
-
Voltage:
-
380V
-
Weight (KG):
-
6500
-
Product name:
-
CNC Lathe Mechine
-
Machine Type:
-
Flat Bed CNC Lathe
-
Function:
-
Machining Metal
-
Control system:
-
SIEMENS GSK FANUC (optional)
-
Spindle speed:
-
150-2500rpm
-
Turret Type:
-
4/6/8 Station Electric Turret
-
Chuck:
-
Manual/Hydraulic 3 Jaw Chuck
-
Max.swing over bed:
-
400 500 610 800
-
Accessory:
-
Tool Box
-
After-sales Service Provided:
-
Online Support
Product Overview

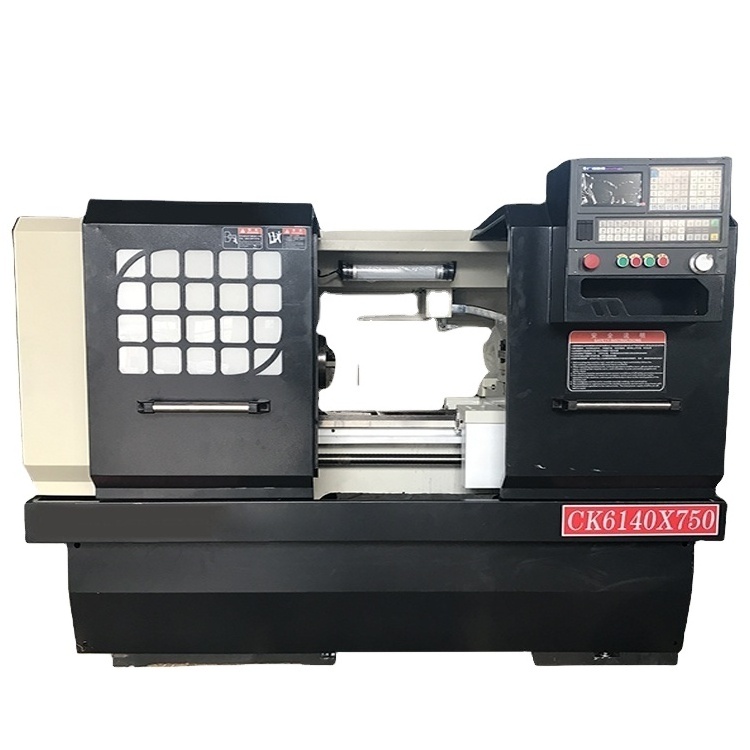

Flat bed CNC lathe CK6140 CK6180 Automatic CNC Lathe machine
CNC lathes are mainly used to process high-precision parts such as shafts, disk parts, shell parts, molds, etc. Its high processing performance and expandable performance make it widely used in the processing of various precision parts.
The CNC lathe adopts a mechatronics structure, uses three-dimensional design software for optimization design, and performs finite element analysis, so that the machine tool structure design is more reasonable, and the machine tool rigidity, accuracy retention, and reliability are approaching perfection. Through the introduction of advanced design concepts and scientific design methods, the unavoidable shortcomings of traditional design have been solved.
FEATURES AT A GLANCE
1. The CK lathe bed is made of high-standard cast iron (HT300) one-time molding casting, which has good rigidity and strong anti-vibration ability; the guideway surface is quenched by medium frequency to ensure long life, high precision and good retention;
2. The CK lathe upper opening of the head box body is a lock style, with strong structural rigidity,
3. X-direction and Z-direction adopt precision ground ball screw pair, and use special angular
4. The CK lathe base adopts the integral base, lost foam casting, and the appearance is flat and beautiful;
5. Electric tool holder, fast and convenient tool change (also can be equipped with arranging tool holder);
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Model
|
CK6136
|
CK6140
|
CK6150
|
CK6163
|
|||
|
Max swing over bed mm
|
360
|
400
|
500
|
630
|
|||
|
Max swing over cross slide mm
|
180
|
200
|
280
|
350
|
|||
|
Max processing length mm
|
750/1000
|
1000/1500/2000
|
1000/2000/3000
|
1000/2000/3000
|
|||
|
Guiderail width mm
|
310
|
360
|
400
|
450
|
|||
|
X/Z axis travel mm
|
180/length
|
210/length
|
260/length
|
310/length
|
|||
|
Spindle speed rpm
|
40-1600
|
40-1800
|
40-1600
|
40-1600
|
|||
|
Spindle taper
|
48
|
56
|
80
|
105
|
|||
|
Spindle motor kw
|
3.7
|
5.5
|
7.5
|
11
|
|||
|
Accuracy/repeat mm
|
0.01/0.005
|
|
|
|
|||
|
Tool post
|
4 position electric tool post
|
|
|
|
|||
Details Display
Spindle and Chuck
CNC lathe spindle box adopts the weight balance method. The main shaft and the swinging plate are controlled by AC
servo motors.
CNC lathe XZ axis is controlled by the CNC system, which can realize multi-axis linkage.
servo motors.
CNC lathe XZ axis is controlled by the CNC system, which can realize multi-axis linkage.
Tools post
CNC lathe electric tool post, the upper tool body does not need to be lifted, and the cam lock and three gears are used for positioning, so the tool change speed is fast, the tool post has a large clamping force and high positioning accuracy. The motor of the utility model is arranged in the tool post, and has no interference to the tool post and the tailstock of the machine tool. In addition, the electrical connection between the tool post and the machine tool adopts a plug socket, which is convenient for installation.
Guide rail
The CNC lathe tool guide rail is an important part of the machine tool to move freely. The continuous movement of the machine tool determines that the machine tool guide rail must have sufficient hardness and will not be easily damaged. Therefore, the quenching of the machine tool guide rail is inevitable. The guide rail is quenched to improve its own hardness, thereby ensuring the machine tool Normal operation.
CNC System
CNC Vertical Machine Center
CNC SYSTEM for Vertical machine center
CNC control system can choosen. Like KND/GSK/Siemens/FANUC/Mitsubish And other good system.
