Quick Details
-
Light source:
-
Semiconductor laser
-
Detection channel:
-
8 channels
-
Cleaning volume:
-
Can be set between 0ml~90ml
-
Power supply:
-
AC100-240V, 50 / 60Hz
-
Dimensions:
-
410*320*165mm
-
Particle size range:
-
0.8-600um (depending on different sensors)
-
Sampling volume:
-
0.2-1000ml
-
Test sample temperature:
-
0℃~80℃
-
Battery capacity:
-
5200mAh
Quick Details
-
Brand Name:
-
DECCA
-
Model Number:
-
DC-FPC-P3
-
Product name:
-
Portable Oil Particle Counter
-
Light source:
-
Semiconductor laser
-
Detection channel:
-
8 channels
-
Cleaning volume:
-
Can be set between 0ml~90ml
-
Power supply:
-
AC100-240V, 50 / 60Hz
-
Dimensions:
-
410*320*165mm
-
Particle size range:
-
0.8-600um (depending on different sensors)
-
Sampling volume:
-
0.2-1000ml
-
Test sample temperature:
-
0℃~80℃
-
Battery capacity:
-
5200mAh
|
Model
|

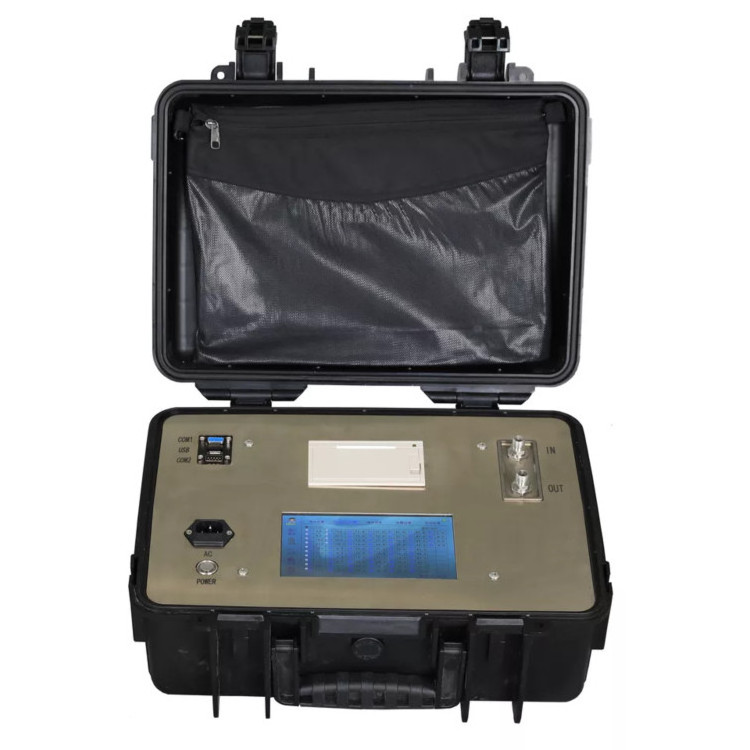

DC-FPC-P3 Oil Particle Counter (Portable)
|
|
Light source
|
semiconductor laser
|
|
Particle size range
|
0.8-600um (depending on different sensors)
|
|
Detection channel
|
8 channels
|
|
Sensitivity
|
0.1um
|
|
Sampling volume
|
0.2-1000ml
|
|
Sampling accuracy
|
better than ± 1%
|
|
Cleaning speed
|
5-80mL/min
|
|
Sampling speed
|
5-80mL / min
|
|
Cleaning volume
|
can be set between 0ml~90ml
|
|
Counting accuracy
|
±＜ 5%
|
|
Resolution
|
≤10%
|
|
Repeatability
|
RSD <2%
|
|
Limit coincidence error
|
1200-40000 capsules / mL
|
|
Viscosity Range
|
≤350cSt
|
|
On-line detection interval
|
arbitrarily set
|
|
Test sample temperature
|
0℃~80℃
|
|
Pressure range
|
low pressure 0-6bar, high pressure 5-420bar (optional pressure reducing valve)
|
|
Power supply
|
AC100-240V, 50 / 60Hz
|
|
Battery capacity
|
5200mAh
|
|
Battery runtime
|
6-8 hours
|
|
Dimensions
|
410 × 320 × 165mm
|
|
Weight
|
8.5kg
|
F
e
atures:
* Photoresistance (shading) test principle specified by the International Hydraulic Standards Committee;
* High-precision laser sensor, wide test range, stable performance, low noise, high resolution;
* High-precision metering pump sampling method, adjustable sampling speed, high sampling volume accuracy;
* The pipeline uses 316L and PTFE materials to meet the testing of various organic solvents and oil products;
* For laboratory or field measurement, optional pressure reducing device for online high pressure measurement;
* It can be connected to the pressure chamber to form positive / negative pressure to realize the detection and degassing of high viscosity samples;
* Can use a variety of sampling containers such as standard sampling bottles, sampling cups, or directly connect to the hydraulic system for online testing to meet the testing requirements of different industries;
* Built-in multiple calibration curves, compatible with all common standards at home and abroad for calibration;
* Built-in GJB-420A, GJB-420B, NAS1638, ISO4406, SAE4059E and other commonly used standards. 10. Supports custom standard tests, and can set required standards according to customer needs;
* 1000 particle size channels can be set for particle size analysis;
* Built-in data analysis system, can automatically determine the sample level according to the standard, with automatic data processing and printing functions Color touch screen operation, Chinese input, with preset, input, modification, storage functions, easy and fast operation;
* With RS232 interface, can be connected to a computer or a laboratory platform for data processing, and USB can also be used for data storage;
* Built-in lithium battery, suitable for field work, can be used without external power supply;
* Embedded design, high-strength shell, easy to carry, suitable for all types of construction machinery;
1. What certificate do you have ?
We have obtained CE certificate and passed the ISO9001.
We have obtained CE certificate and passed the ISO9001.
2. Do you accept OEM (Original Equipment Manufacturer) service ?
Yes, We accept any OEM service since. We are a professional manufacturer for Laboratory Equipment with about more than 20 years of OEM experiences.
3. What kind of guarantee do you offer ?
We provide 1~2 years warranty, lifetime after sales.
4.How can we get technique support ?
User manual will be sent together with product. Contact us online any time by Skype, WhatsApp, Wechat.
5. What payment methods do you accept ?
AT/T, LC, PayPal, Alipay, Credit Card, Cash...
6. What's the nearest Seaport and Airport ?
Tianjin Sea port, Beijing Air port. Qingdao port, Shanghai port and Guangzhou also can accept.
Yes, We accept any OEM service since. We are a professional manufacturer for Laboratory Equipment with about more than 20 years of OEM experiences.
3. What kind of guarantee do you offer ?
We provide 1~2 years warranty, lifetime after sales.
4.How can we get technique support ?
User manual will be sent together with product. Contact us online any time by Skype, WhatsApp, Wechat.
5. What payment methods do you accept ?
AT/T, LC, PayPal, Alipay, Credit Card, Cash...
6. What's the nearest Seaport and Airport ?
Tianjin Sea port, Beijing Air port. Qingdao port, Shanghai port and Guangzhou also can accept.
