Quick Details
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCQ7
-
Rated Current:
-
63A/100A
-
Brand:
-
CSQ
-
Product name:
-
Ats Transfer Switch Automatic 2 Poles 2P iso9001 63a 4p
-
Name:
-
HYCQ7
-
Keywords:
-
63a 4p 100 amps 10 way Switches For Solar
-
Pole:
-
2P/4P
-
Rated voltage:
-
220V AC380V/660V
-
Frequency:
-
50/60Hz
-
Operation type:
-
Automatic
-
Warranty:
-
18 Months
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCQ7
-
Rated Current:
-
63A/100A
-
Brand:
-
CSQ
-
Product name:
-
Ats Transfer Switch Automatic 2 Poles 2P iso9001 63a 4p
-
Name:
-
HYCQ7
-
Keywords:
-
63a 4p 100 amps 10 way Switches For Solar
-
Pole:
-
2P/4P
-
Rated voltage:
-
220V AC380V/660V
-
Frequency:
-
50/60Hz
-
Operation type:
-
Automatic
-
Warranty:
-
18 Months

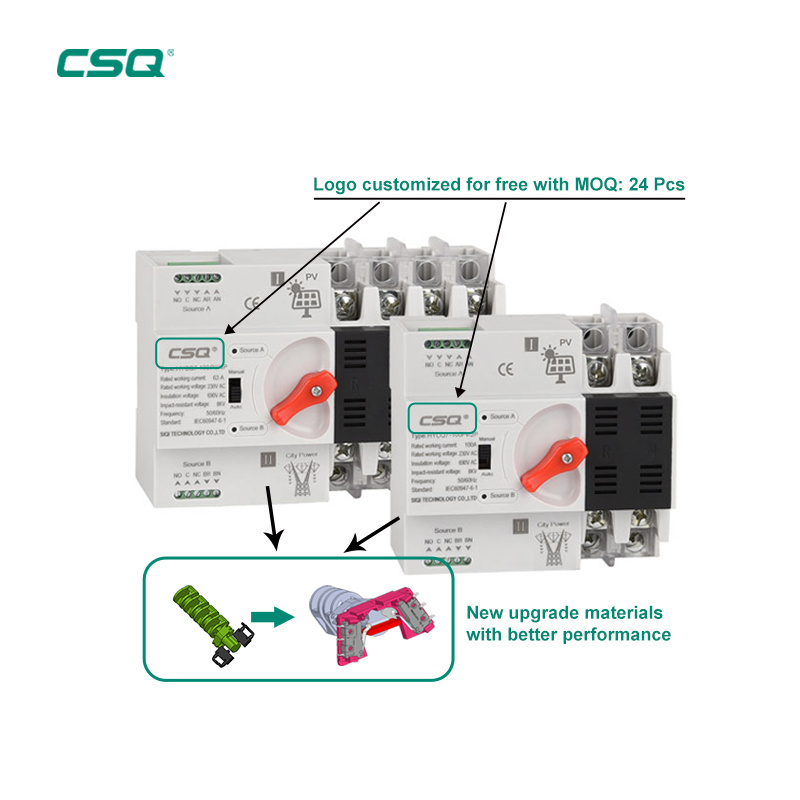

CSQ Ats Transfer Switch Automatic 2 Poles 2P iso9001 63a 4p 100 amps 10 way Switches For Solar 5.5Kw Diesel Generat
Products Description
Product Paramenters
HYCQ7-100 Series Automatic Transfer Switch ( PC Type ATS )
1.Application
HYCQ7-100 series new design automatic transfer switches are new developed micro household power transfer switch.. The switch ismainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.
2.Normal conditions for operation and installation:
Environmental Temperature Condition:-5~+40°C
Installation site is not more than 2000 meters above sea level.
Pollution Level: Grade 3
Installation Category: 3
Vertical installation or horizontal installation
3. Main parameter
HYCQ7-100 series new design automatic transfer switches are new developed micro household power transfer switch.. The switch ismainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.
2.Normal conditions for operation and installation:
Environmental Temperature Condition:-5~+40°C
Installation site is not more than 2000 meters above sea level.
Pollution Level: Grade 3
Installation Category: 3
Vertical installation or horizontal installation
3. Main parameter
|
Model
|
HYCQ7
|
|
|
|
Rated current le A
|
10 16 20 25 32 40 50 63
|
80 100
|
|
|
Insulation voltage Ui
|
AC 690V
|
|
|
|
Rated voltage Ue
|
2P : AC230V
|
4P : AC400V
|
|
|
Grade
|
Grade PC:able to male and withstand , not to break short-circuitcurrent
|
|
|
|
Use category
|
AC-33iB
|
|
|
|
Pole
|
2P
|
4P
|
|
|
Weight ( kg )
|
0.68
|
0.91
|
|
|
Life
|
Electrial :2000times; Mechanical :5000times
|
|
|
|
Rated conditional short - circuit current lq
|
50kA
|
|
|
|
SCPD ( fuse )
|
RT16-00-63A
|
|
|
|
Rated impulse withstand voltage
|
8kV
|
|
|
|
Control circuit
|
Rated control voltage Us :AC220V50Hz Correct working condition 85%Us-110%Us
|
|
|
|
Auxiliary circuit
|
AC220V/AC110V50/60HZ
|
|
|
|
Contact transter time
|
< 50ms
|
|
|
|
Operating transfer time
|
< 50ms
|
|
|
|
Return transfer time
|
< 50ms
|
|
|
|
Off - time
|
< 50ms
|
|
|
|
Temperature range
|
-5°C ~+40C average temperature not more than 35'C in 24 hours
|
|
|
4. Appearance & Installation Dimension
