low energy saving automatic hot water A class circulation pump for house heating system

low energy saving automatic hot water A class circulation pump for house heating system

FOB Reference Price: Get Latest Price

≥200 Pieces

US $30

≥500 Pieces

US $25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 years

Brand Name:: OYAD

Model Number:: AUTO25-6 A 180

Place of Origin:: Zhejiang, China

Horsepower:: 45w

Cable Length:: 1.2m

Outlet Size:: 1.5"

Power:: 45 W, Electric

motor:: copper

Usage:: Water

Standard or Nonstandard:: Standard

Theory:: Centrifugal Pump

color:: OEM

Fuel:: electric

Function:: circulate hot water

Quick Details

Application:: Commercial Buildings, Drinking water treatment, Family Homes, HVAC OEM, temperature control, Water Distribution

Pressure:: Low Pressure

Voltage:: 220 V

Warranty:: 1 years

Brand Name:: OYAD

Model Number:: AUTO25-6 A 180

Place of Origin:: Zhejiang, China

Horsepower:: 45w

Cable Length:: 1.2m

Outlet Size:: 1.5"

Power:: 45 W, Electric

motor:: copper

Usage:: Water

Standard or Nonstandard:: Standard

Theory:: Centrifugal Pump

color:: OEM

Fuel:: electric

Function:: circulate hot water

Hot sale products

Energy saving circulation pump

Class A

EEI<0.23

best sell home booster pump for shower

hot water circulation booster pump

CRS15/9 CRS15/10

Product Overview

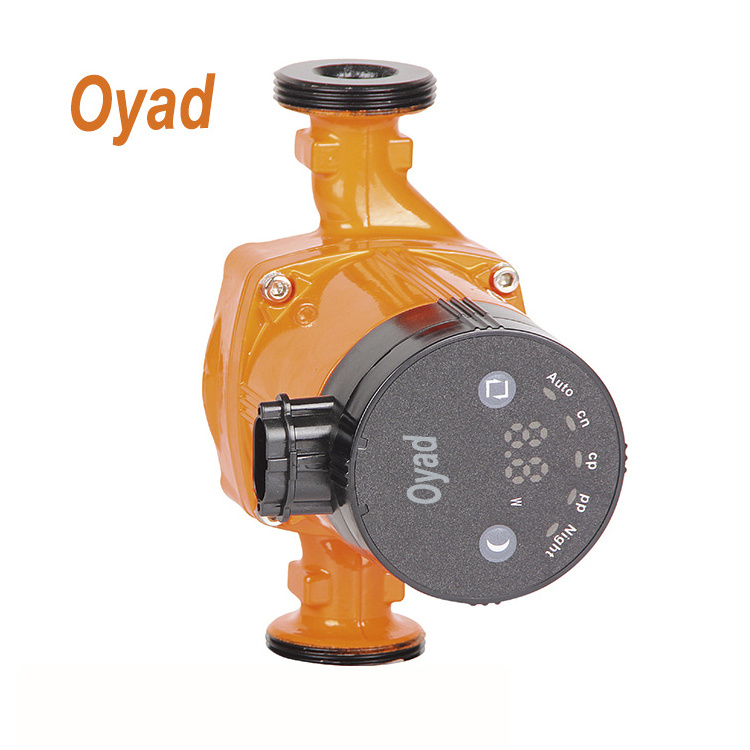

Highly efficient heating pump / circulation pump CLASS A，low energy

Highly efficient heating pump / circulation pump with 2 fittings, seals and insulation + adaptor including English user manual. Highly efficient heating circulation pumps AUTO detect based on changes in water pressure in the pipe,which pump power is required to supply all radiators continuously. Highly efficient heating circulation pumps are more powerful
and consume up to 80% less energy than conventional pumps. This is a pump that belongs to the energy class A.Basically, the highly efficient heating circulation pumps are suitable for all domestic applications: radiator heating, underfloor heating and solar systems

FEATURES AT A GLANCE

The product complies with all European standards. The installation dimensions are standard dimensions and compatible with other manufacturers.

* Power supply: 230 V - 50 Hz, efficiency class A, temperature range: 2 °C - 110 °C
* Ambient temperature: 0 - 40° Nominal pressure: 10 bar
* Protection class: IP42

* 1 year warranty

CE, TÜV-GS,

EEI index certificate

PRODUCT SPECIFICATIONS

Model name	Power (W)	Head(m)	Flow （L/min）	Input&outlet
AUTO15-4A	5-22	4	38	3/4“ to 1/2“
AUTO20-4A	5-22	4	42	1” to 3/4”
AUTO25-4A	5-22	4	45	1.5” to 1“
AUTO32-4A	5-22	4	48	2" to 1.5"
AUTO15-6A	5-45	6	40	3/4“ to 1/2“
AUTO20-6A	5-45	6	50	1” to 3/4”
AUTO25-6A	5-45	6	55	1.5” to 1“
AUTO32-6A	5-45	6	57	2" to 1.5"
