Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
110V.220V.380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JiaDe
-
Dimension(L*W*H):
-
900*800*1800mm
-
Machine Material:
-
Food Grade stainless steel 304
-
Control System:
-
PLC
-
measuring range:
-
1-80ml
-
Bag Size:
-
(W) 30- 80 mm ; (L)40-150 mm
-
bag type:
-
Triangle Bag
-
Usage:
-
For all kinds of liquid products
-
Air Consumption:
-
0.6Mpa , 0.2 CBM/min
-
Roll Packing Material:
-
Composite PE Film Like BOPP/CPP;PET/AL/PE; PE/PET/Nylon
-
Product Name:
-
Triangle Juice Liquid Sachet Packing Machine
Quick Details
-
Function:
-
FILLING, Wrapping, Sealing, SLITTING, Forming Bag and Cutting
-
Packaging Type:
-
Bags, Sachet
-
Packaging Material:
-
Plastic, Paper, Composit PE Film that can be heat sealed
-
Weight (KG):
-
300
-
Voltage:
-
110V.220V.380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JiaDe
-
Dimension(L*W*H):
-
900*800*1800mm
-
Machine Material:
-
Food Grade stainless steel 304
-
Control System:
-
PLC
-
measuring range:
-
1-80ml
-
Bag Size:
-
(W) 30- 80 mm ; (L)40-150 mm
-
bag type:
-
Triangle Bag
-
Usage:
-
For all kinds of liquid products
-
Air Consumption:
-
0.6Mpa , 0.2 CBM/min
-
Roll Packing Material:
-
Composite PE Film Like BOPP/CPP;PET/AL/PE; PE/PET/Nylon
-
Product Name:
-
Triangle Juice Liquid Sachet Packing Machine

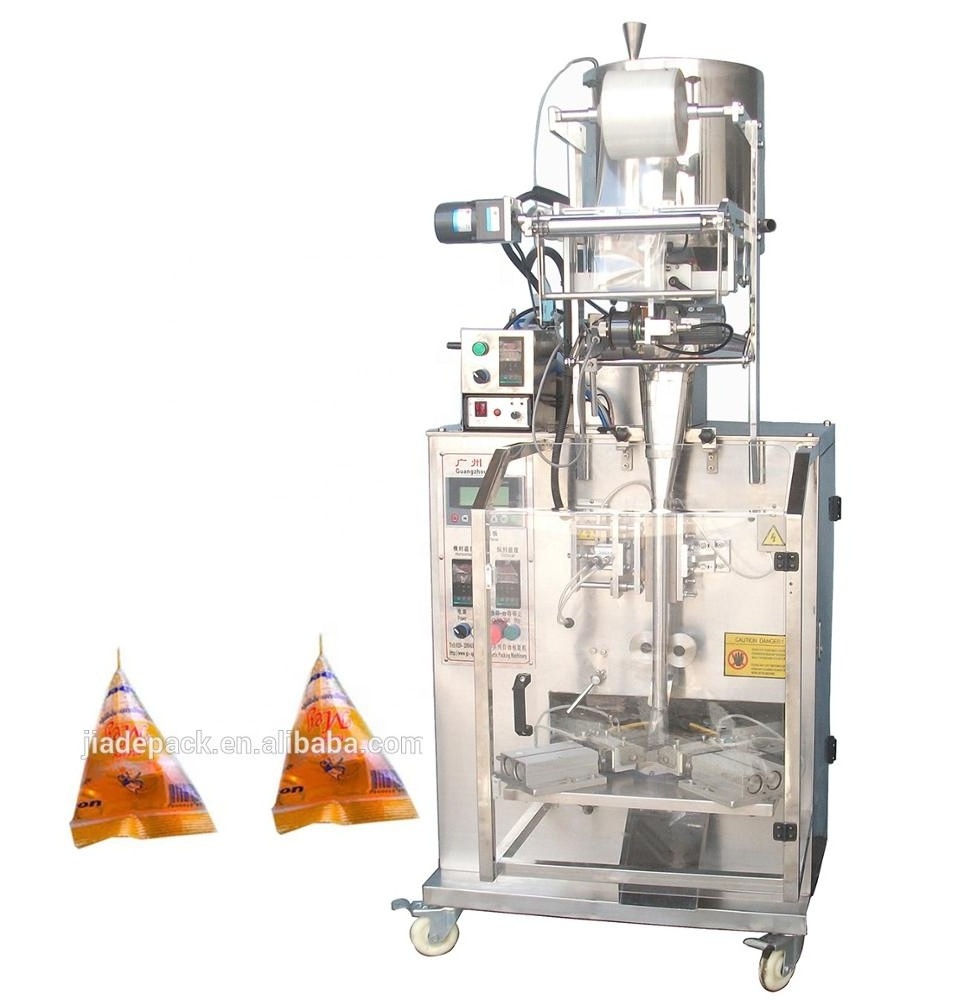

Full Automatic Triangle Water Juice Sachet Packing Machine
Applicable Scope
1. Be Suitable For All Kinds of Industries Like Food; Medicine; Cosmetic; Pesticides .etc
2.The Products That Can Be Packed is all Kinds of Liquids, Like Sauce, Hand & Facial Cream, Shampoo, tomato sauce or Pepper Paste, Honey, Lotion and Ointments & butter, oil , Water, Juice and M ilk or ketchup etc liquid Products.
Technical Parameter
|
Model |
JD- YS |
|
Machine Speed |
30- 60 Bags/min |
|
Bag Size |
(L)40-150mm ; (W)30- 80 mm |
|
Measuring Mode |
Fluid Pump |
|
Max.Roll Film's Width |
180mm |
|
Net Weight |
180KG |
|
Gross.Weight |
220KG |
|
Bag Type |
Triangle |
|
Notch |
Zipper or zigzag |
|
Voltage |
AC220V Single-phase 50HZ or 380V/50HZ three phase |
|
Total Power |
2.3KW |
|
Power Requirement |
Electric + Pneumatic |
|
Air Consumption |
0.8Mpa , 0.4 CBM/min |
|
Measuring Range |
1- 80ml |
|
Control System |
PLC Control System |
|
Packing Material |
Laminated or composite film, like BOPP/CPP;PET/AL/PE; PE/PET/nylon; paper-plastic…etc |
|
Machine Material |
Stainless Steel 304 |
|
Machine Dimension |
900 * 800 * 1800mm |
Features:
1) Be Able To Weight, Bag-Making, filling, sealing, cutting, lot number, cutting easy tearing notch etc. automatically .
2) It has color control system which can get the complete trade mark design .
3) The machine fix stepper motor controller, its advantage is precise, needless to adjust other parts.
4) Intelligent temperature control by temperature controller to make heat balance better. use bilingual display screen control system and stainless steel cabinet
5) Fine packaging performance, low noise, clear sealing texture and strong sealing performance.
6) With Date printer, it can print manufacture date, expiry date and lot number. It is optional.
7) Operation manual and warranty card will be delivered to the clients with machine
8) Material is stainless steel 304, and adopts imported PLC control system. High quality and stability.
9) It has protective door to make safer !
Yes, every machine will be adjusted well before shipping,as well as manual and video ,according this, you can operate it easily. In our experiences,95%customer can operate it well by themselves.Sure,we also offer oversea services if you need training services.
2, what’s your payment term?
50% deposit and balance paid before delivery.
3, How about the transport?
By air,by sea or by rail is available.If this is your first time to do import business,and don ’ t know about shipment too much,we are glad to help you check all the details of the freight for your reference.
4, Are you manufacturer or trading company?
We are manufacturer owned professional R&D team, over 10 years experiences.
5,Can your machines print data number ?
Yes ,for cosmetics products, we can add steel code freely ,for food or other less shelf time products ,can fix an extra ribbon printer.
6,How to repair or change when some parts are broken?
We will make fixed repair video and send new part if needed (freely in the warranty period). For some special problem, we will help you to fix it through email, skype, WhatsApp or engineer oversea service(customer should be bear technician's all costs).
7,Can your machine available for 110v single phase electricity?
Yes,add an power converter will be ok.
8,what happen if you won't send out machine?
We will make machine video for you before Pay Balance, Also,You Can Choose Some Secure payment(such as alibaba secure payment,they will compensate you if we didn't send machine).
