Quick Details
-
Model Number:
-
TD100 - I
-
Type:
-
Capacitive Touch Switch
-
Power:
-
60W
-
Sensing Range:
-
0cm
-
Product name:
-
Mirror Touch Switch
-
Model:
-
TD100
-
Function:
-
ON OFF + Dimming
-
Max Load:
-
5A/60W
-
Indicator Light:
-
White Light + Blue Light
-
Dimension:
-
50*49*10MM
-
Support Mirror Thickness:
-
1-5mm Mirror
-
Color:
-
Black
-
Cable Length:
-
15cm
Quick Details
-
Voltage:
-
DC12V-24V, DC12V-24V
-
Place of Origin:
-
GUA
-
Brand Name:
-
Shinechip
-
Model Number:
-
TD100 - I
-
Type:
-
Capacitive Touch Switch
-
Power:
-
60W
-
Sensing Range:
-
0cm
-
Product name:
-
Mirror Touch Switch
-
Model:
-
TD100
-
Function:
-
ON OFF + Dimming
-
Max Load:
-
5A/60W
-
Indicator Light:
-
White Light + Blue Light
-
Dimension:
-
50*49*10MM
-
Support Mirror Thickness:
-
1-5mm Mirror
-
Color:
-
Black
-
Cable Length:
-
15cm

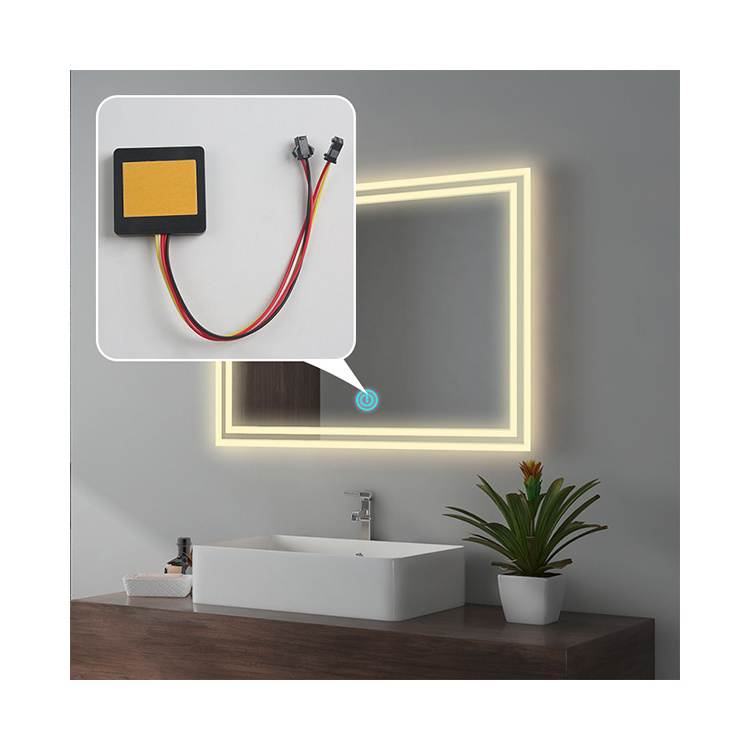

1.The Mirror Touch Dimmer Switch is a smart switch specially designed for all kinds of bathroom smart light mirrors, bathroom anti-fog light mirrors, LED light mirrors, mirror cabinets and other products, and for control closed areas are formed in the places of the buttons by removing the reflective layer.
3.The smart touch control sensor switch is used to turn on / off 12V or 24V LED lamps with power up to 5A 60W.
4.The switch is equipped with 2 modes(dimming; color adjusable) available.
5.This sensor switch will memorize the status of the dimming in 12V-24VDC.
ATTENTION! The outer contour of the picture must be closed! An open contour of the pattern is not allowed.
2.This touch switch has a beautiful appearance, reliable performance, installation convenience, slim size, sensitive touch etc.,suitable for touch sensing control on the surface of various mirror lamps or other glass.
2.This touch switch has a beautiful appearance, reliable performance, installation convenience, slim size, sensitive touch etc.,suitable for touch sensing control on the surface of various mirror lamps or other glass.
3.The smart touch control sensor switch is used to turn on / off 12V or 24V LED lamps with power up to 5A 60W.
4.The switch is equipped with 2 modes(dimming; color adjusable) available.
5.This sensor switch will memorize the status of the dimming in 12V-24VDC.
|
Product Name
|
60W 5A One-Button Mirror Touch Switch
|
|
|
|
Model No
|
TD100
|
TD100D
|
|
|
Function
|
ON/OFF+Dimming
|
3 Colors Adjustable+Dimming
|
|
|
Input Voltage
|
DC12V or DC24V
|
|
|
|
Max Load
|
5A 60W MAX
|
|
|
|
LED Indicator
|
Blue (ON Mode); White (OFF Mode)
|
|
|
|
Cable Length
|
Input: 15cm；Output: 15cm
|
|
|
|
Color Available
|
Standard Black (White available, please remarks)
|
|
|
|
Dimension
|
50 x 49 x 10mm
|
|
|
|
Support Mirror Thickness
|
≤ 5mm
|
|
|
|
Features
|
Long touch, LED Backlight off
|
|
|
ATTENTION!
1.Touch switches are demanding on the quality of the power source. Before buying a power supply, be sure to consult with our
manager. The manager will select for you a power source that is guaranteed to be compatible with the sensor you have chosen.
Incorrect selection of the power supply may result in the failure of the sensor (this is not a warranty case).
manager. The manager will select for you a power source that is guaranteed to be compatible with the sensor you have chosen.
Incorrect selection of the power supply may result in the failure of the sensor (this is not a warranty case).
2.Regular adhesive tape is designed to facilitate installation and testing of the product. After checking the correct
installation and operability, it is recommended to fix the fixing plate additionally with the help of glue-sealant for mirrors or
glue for a heat gun.
installation and operability, it is recommended to fix the fixing plate additionally with the help of glue-sealant for mirrors or
glue for a heat gun.
