Quick Details
-
Productivity:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaodetec
-
Weight:
-
3200kg
-
Dimension(L*W*H):
-
4200x2300x3150mm
-
Type:
-
concrete mixer pump
-
Pump capacity:
-
13 m3/h
-
Mixer capacity:
-
15m3/h
-
max.aggregate:
-
20mm
-
max.vertical pumping distance:
-
100m
-
max.horizontal pumping distance:
-
300m
-
main oil pump:
-
Domestic/Kawasaki 112
-
Capacity of oil tank:
-
370L
-
main motor:
-
18.5kw
-
Hydraulic system:
-
Open system
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Certification:
-
ISO CE
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
130M
-
Max. horizontal conveying distance:
-
180M
-
Productivity:
-
Other
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaodetec
-
Weight:
-
3200kg
-
Dimension(L*W*H):
-
4200x2300x3150mm
-
Type:
-
concrete mixer pump
-
Pump capacity:
-
13 m3/h
-
Mixer capacity:
-
15m3/h
-
max.aggregate:
-
20mm
-
max.vertical pumping distance:
-
100m
-
max.horizontal pumping distance:
-
300m
-
main oil pump:
-
Domestic/Kawasaki 112
-
Capacity of oil tank:
-
370L
-
main motor:
-
18.5kw
-
Hydraulic system:
-
Open system
-
After Warranty Service:
-
Video technical support, Online support, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Certification:
-
ISO CE

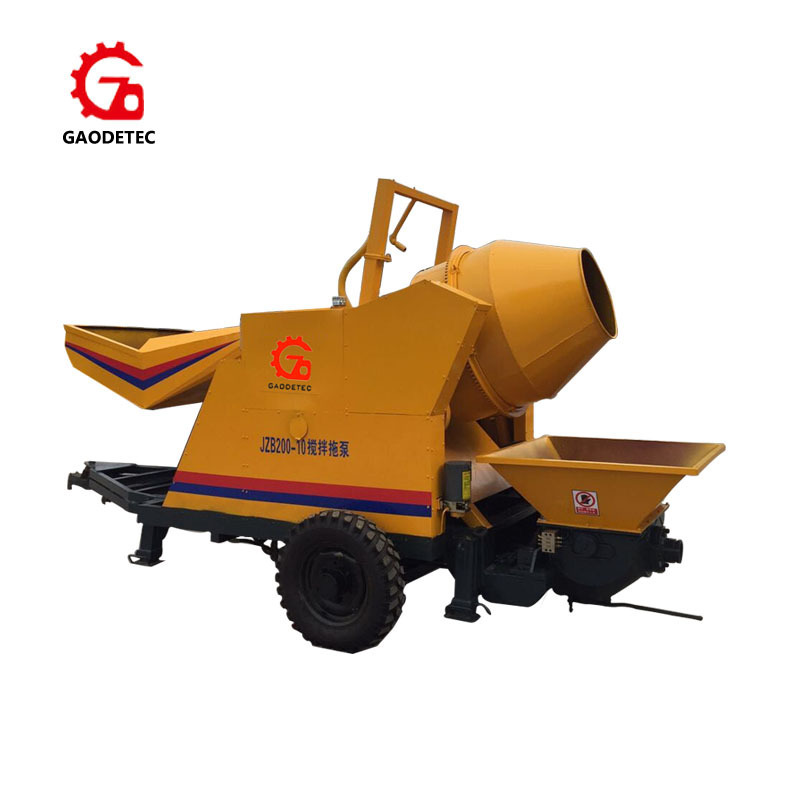

JZB200-10 13m3/h 20mm Aggregate size Tilting Concrete Mixer Pump
1. Description:
JZB200-10 Tilting trailer concrete mixer with pump is the combination of tilting mixer and trailer concrete pump. It has compact structure, high efficiency, used for mixing and pumping concrete. It also could be used for mixing and pumping mortar together with spraying pump.
2. Application:
Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
Convey greening soil in ecological environment construction.
Convey all kinds of engineering construction in the plain concrete, fiber concrete.
M ost suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sit es where need the concrete mixer at the scene.
3. Features:
Mixer and pump in one machine.
Transfer concrete through pipeline. I t is fast and safe .
It has small size and suitable for more special environment .
Optional part: cement boom, wireless remote control . This is e asy to operate.
JZB200-10 13m3/h 20mm Aggregate size Tilting Concrete Mixer Pump
|
Item s |
Units |
Parameters |
|
|
JZB200-10 |
|||
|
Whole p erformance of machine |
Max. theo. c oncrete o utput |
m3 /h |
13 |
|
Max.c oncrete pumping pressure |
MPa |
10 |
|
|
Distributi on valv e type |
|
S Valve |
|
|
Concrete cylinder diameter× stroke |
m m |
140×1000 |
|
|
Hopper capacity |
L |
400 |
|
|
O utlet diameter |
m m |
100mm |
|
|
Power system |
Main motor |
kw |
18.5 |
|
Vice motor |
kw |
11 |
|
|
Mixing motor |
K w |
3 |
|
|
Water pump motor |
kw |
0.55 |
|
|
Rotate speed |
r / min |
1480 |
|
|
Working efficiency |
Feeder volume |
L |
0.25 |
|
Discharge output |
L |
0.2 |
|
|
Hydraulic system |
C ircuit type |
|
Open circuit |
|
Pumping system pressure |
M P a |
28 |
|
|
Mixing system pressure |
M P a |
6-8 |
|
|
Capacity of oil tank |
L |
370 |
|
|
|
Max delivery distance: vertically /Level |
m |
100/300 |
|
Other parameters
|
Max. aggregate diameter |
mm |
S cree: 2 0 |
|
Inside diameter of delivering pipe |
mm |
80 |
|
|
Dimension s:length×width× height |
mm |
4200x2300x3150 |
|
|
Total w eight |
k g |
3200 |
|
