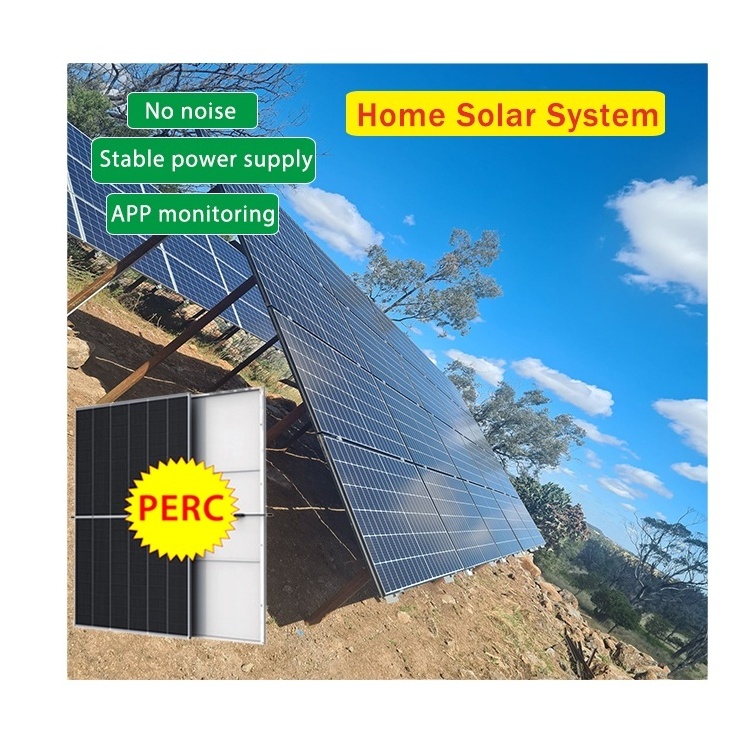

5KW Solar Panel Power System 10KW off Grid Home kit 20KW 24Hours Solar Storage Energy Systems
5KW Solar Panel Power System 10KW off Grid Home kit 20KW 24Hours Solar Storage Energy Systems
5KW Solar Panel Power System 10KW off Grid Home kit 20KW 24Hours Solar Storage Energy Systems
5KW Solar Panel Power System 10KW off Grid Home kit 20KW 24Hours Solar Storage Energy Systems
5KW Solar Panel Power System 10KW off Grid Home kit 20KW 24Hours Solar Storage Energy Systems
5KW Solar Panel Power System 10KW off Grid Home kit 20KW 24Hours Solar Storage Energy Systems
5KW Solar Panel Power System 10KW off Grid Home kit 20KW 24Hours Solar Storage Energy Systems
5KW Solar Panel Power System 10KW off Grid Home kit 20KW 24Hours Solar Storage Energy Systems

5KW Solar Panel Power System 10KW off Grid Home kit 20KW 24Hours Solar Storage Energy Systems

FOB Reference Price: Get Latest Price
≥1 Pieces
US $4622
≥10 Pieces
US $4531
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Controller Type:
MPPT, PWM, MPPT/IGBT
Mounting Type:
Roof Mounting
Certificate:
CE RoHS
Warranty:
15years
Place of Origin:
Guangdong, China
Brand Name:
MARS or OEM
Model Number:
MSP SOLAR SYSTEM
Output Voltage (V):
AC110V/120V/220V/230V/240V
Output Frequency:
50HZ/60HZ
Work Time (h):
8-24 HOURS
Product name:
Grid Tie Solar Power System Home
Type:
Off Grid Solar System
Solar panel:
A Grade Mono Solar panel,22% efficiency
Inverter:
Pure sine wave inverter
Controller:
MPPT Solar Charge Controller
Battery:
Deep Cycle Maintenance-free Gel Battery
After Sale Service:
2 years and solar panel 15years

Quick Details

Application:
Home
Solar Panel Type:
Monocrystalline Silicon
Battery Type:
Lead-Acid, Lithium Ion, Gel battery
Controller Type:
MPPT, PWM, MPPT/IGBT
Mounting Type:
Roof Mounting
Certificate:
CE RoHS
Warranty:
15years
Place of Origin:
Guangdong, China
Brand Name:
MARS or OEM
Model Number:
MSP SOLAR SYSTEM
Output Voltage (V):
AC110V/120V/220V/230V/240V
Output Frequency:
50HZ/60HZ
Work Time (h):
8-24 HOURS
Product name:
Grid Tie Solar Power System Home
Type:
Off Grid Solar System
Solar panel:
A Grade Mono Solar panel,22% efficiency
Inverter:
Pure sine wave inverter
Controller:
MPPT Solar Charge Controller
Battery:
Deep Cycle Maintenance-free Gel Battery
After Sale Service:
2 years and solar panel 15years

Which solar power system is suitable for me?

* Home Use(5kw to 10kw); * School and office(1.5kw to 5kw); * Farm use(10kw to 20kw); * Hospital project( 15kw); * Factory use(20kw to 30kw); * More large volume of power system can be customized. If you want to get more cases, please contact us. Based on 12 years of actual installation experience, we can definitely provide a solar panel system that is suitable for you.

Free one-stop service including: ★ Designing a system suitable for use; ★ System connection and installation drawings, tutorial videos; ★ Online video online installation tutorial is available; ★ Engineer online diagnosis; and many more These services are available after sending an inquiry

Send an inquiry , we can design a set of solar customized system that suits you best
What load can a 10KW solar system carry?
air conditioner
electric car
refrigerator
television
washing machine
induction cooker
electric fan
etc.
Roof installation
Car port installation
Ground installation
Q:What are the working way for on and off grid solar system?
A:1)on and off grid solar system supply solar power to loads directly,if solar power is excess, the power will charge to battery
automatically.When the
battery power is full also, inverter will send the excess power to grid.

2)When the on and off grid solar system only generate few power,solar power supply to load,the insufficient part is replenished by
the city power.

3)When the grid shut down,on and off grid solar system will switch to off grid status,transfer solar DC power to AC power, supply
solar power directly to the load.When the solar panel can not provide enough power to
the load,it will use battery power,transfer battery power to the load.
5KW On and Off Grid Solar Power System
model
Description
Qty
Solar panel
Mono 500W,Voltage:39V
10PCS
On and off grid Solar Inverter
Rated Power :5KW Battery DC voltage:48V Max input vol:500VDC 220V Single phase
1PC
Gel Battery  /  Powerwall lithium battery
12V200AH Service Life:5-6 Years , Size: 522*240*219mm     /
51.2V200AH Service Life:10-12 Years
4PC//1PC
②Lifepo4 Battery,360V400AH   Service Life:8-10 Years
1PC
Bracket
Rooftop / Ground Install   Customized,Including All Parts
1SET
PV Cables/ Battery Cables/Connetor
Professional processed battery cable.
1SET
Send inquiry to get customized system design
Household hot-selling solar system 10KW
model
Description
Qty
Solar panel
Mono550W,Voltage:39V
20PCS
Combiner
6T-96V
1PC
Solar controller
MPPT controller    MPPT Solar Charge: 100A
1PC
inverter
DC voltage:96V  AC Output :110V/220V
Rated Power:10KW
1PC
Optional Battery
①Gel battery,12V200AH   Service Life:6-8 Years
16PCS
②Lifepo4 Battery,96V200AH   Service Life:8-10 Years
1PC
Bracket
Rooftop / Ground Install   Customized,Including All Parts
1SET
PV Cables/ Battery Cables/Connetor
Professional processed battery cable.
1SET
Send inquiry to get customized system design
Products Description
300W~100MW solar power system Components

PERC Solar Panel

★ 1.Shingled technology:

Provides higher module efficiency under low irradiance conditions( 21%-22% ), and achieves greater installation capacity in a limited space.


★2. Nice appearance.


★3. Enhanced weather resistance


★4. Reduce system cost


★5. Low hot spot effect


★6. Anti-LID/PID


If you only want solar panels, you can also send an inquiry

PV array combiner

★ 4T/6T/8T/10T/16T Multiple PV strings inputs.


★ Simplify wiring between PV array and controller.


★ Protect controller from thunderstorm& surge protection, max open circuit voltage is 500V

solar inverter

★1KW~100KW pure sine wave inverter with MPPT solar charge controller,


★ Optional charge by generator.90%-95% charge efficiency, Protection against anti-charge at night,battery over charge, over discharge protection, Joint-reversed of solar modules, LCD display, grid bypass, With AC charger built in, short-circuit, over load, and low-voltage protection


★ we use famous Japand band Mitsubishi and Fuji IGBT.We are the first factory who use IGBT technology in single phase inverter.

★Output:110V,120V,220V,230V,240V,380V,400V.415V copper transformer

What are difference between lithium battery and gel battery?
★ A:Lithium battery have longer use life(10-12years),the price will be higher.

★ Wall-mounted lithium battery saves installation space.
★ Gel battery have shorter use life (5-6years),the price will be lower.
★ If your budget allow,you can chose lithium battery.If your budget are not allow,you can use gel battery now,in the future,you collect more money then can use lithium battery.

Solar panel bracket

★ Slope Rooftop or Flat ground
design base on your installation place including complete fittings


★ wind load:55m/s,


★ snow load:1.5kn/m2


★ Structure: Aluminum alloy ,anti-oxidation treatment

Cables

★ 1set battery cable and terminal


★ 1set 4mm2 PV cable


★ 1set PV terminals

APP monitoring system
★ WIFI and PC monitoring systemMonitor complete solar energy systems operating

★ Monitor the battery operating condition

OUR ADVANTAGE

Pre-sale: ★1. Mars professional engineering team assists customers to complete professional system design orbidding work,ensure that each project provides government engineering-level quality and services.

★ 2.Demonstration solar system visiting in Africa / Asia / Europe / Middle East.Contact us to getscheduled time for customer real use and installation.More demonstration solar system visiting are coming soon.

★3.Mars supports OEM services to assist customers in expanding their brand influence.
Quality Control:
★ 1.Use good quality materials and high efficiency solar cell,increase your solar generation and your solar system ‘s use life.
★ 2.Our inverter use Japan brand IGBT and Germany brand materials,Strong inverter can ensure your solar system have stable and durable output,undertake more appliance .
★ 3.Our battery use Germany technology and materials.Battery quality is good,can store supply more solar power to you,extend longer service life for your solar system
★ 4.100times test before package.
Advanced product function:
★ 1.Touch screen operation,easy and convenient
★ 2.Real time App monitor,monitor your solar system any time.
After-sale:
★ 1.For the first import, assist in completing the transportation and customs work, clear customs withoutworry, and receive the goods smoothly.Africa and Asia provide door to door service or pick up servicelocally.
★ 2.Protessional installation drawing and user manual,10+years engineer gulde the installation andtechnical support online,easy and convenient.
★ 3.Certified engineers provide installation services.Our certified engineers include Daniel(Thailand),Jose(Philippines),Japhet(Kenya),Eric(Cameroon),Oumar(Nigeria),Peter(Senegal).More installation service countries are developing.
★ 4.Good warranty service.During warranty.take pictures or videos to us,send the free replacement ornew products right now.
Product Case
We sell in more than 130 countries around the world
Household hot-selling solar system
Salvador 20KW
Sweden 15KW
Lebanon 30KW
Aruba 80KW
Customer Reviews
Showroom
VR
Packaging & Shipping
Payment
★ 1. Payment term: Normally T/T 30% as deposit in advance, balance 70%before shipping. Alibaba assurance payment approval as well.
★ 2.Lead time: Usually 7~15 days after getting deposit;
★ 3.Sample policy: samples are available on each model. they can be ready in 1-5 days once payment received;
★ 4.Port of loading: Guangzhou , Shenzhen
★ 5.Discounts: we offer discount on big quantity;
★ 6.Products warranty: 2~15 years accordingly.
FAQ
Q:Are you factory or trading company?
A:We have 3000 sqm modern factory.with 4 production lines.We have 40 factory workers and 5 of them are quality control and
engineer guys.Welcome to visit our factory.

Q:How long is the lead time of orders?
A:Goods can be ready for shipment within 7-15 working days upon payment.If we have stock material.It only take 1-2days tu send
goods.

Q:What's the warranty of products?
A:Suggest buy all system from our factory, solar panel have 10 years warranty ,other parts
all have 2 years warranty;During the warranty, will ship the free parts for service ,we promise our quality.

Q:Can we get support if we have our owm market position?
A:Please inform us your details market demand we will discuss and propose helpful suggestion for you to find the best solution for
you.

Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.

Q:Can I install it myself?
A:We provide installation drawing and user manual for you,guide the installation.If necessary,we can send our engineer come to
country,and guide the installation.

Q:How to calculate the freight?
A:We will calculate according to the specific location and transportation method, you can discuss it in detail with us.
