- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
MTF01V
-
Brand Name:
-
Sharpbike
-
Model:
-
MTF01V
-
Position:
-
Geared Rear Motor
-
Rated Voltage:
-
48V
-
Wheel Size:
-
26" Integrated Magnesium Alloy Wheel
-
Rated Power:
-
750W
-
Brake Type:
-
Disc Brake
-
Open Size:
-
175/190mm
-
Surface Color:
-
Black
-
Freewheel:
-
6-9S
-
Hall Sensor:
-
With
Quick Details
-
Voltage:
-
48V
-
Style:
-
Two rounds
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
MTF01V
-
Brand Name:
-
Sharpbike
-
Model:
-
MTF01V
-
Position:
-
Geared Rear Motor
-
Rated Voltage:
-
48V
-
Wheel Size:
-
26" Integrated Magnesium Alloy Wheel
-
Rated Power:
-
750W
-
Brake Type:
-
Disc Brake
-
Open Size:
-
175/190mm
-
Surface Color:
-
Black
-
Freewheel:
-
6-9S
-
Hall Sensor:
-
With

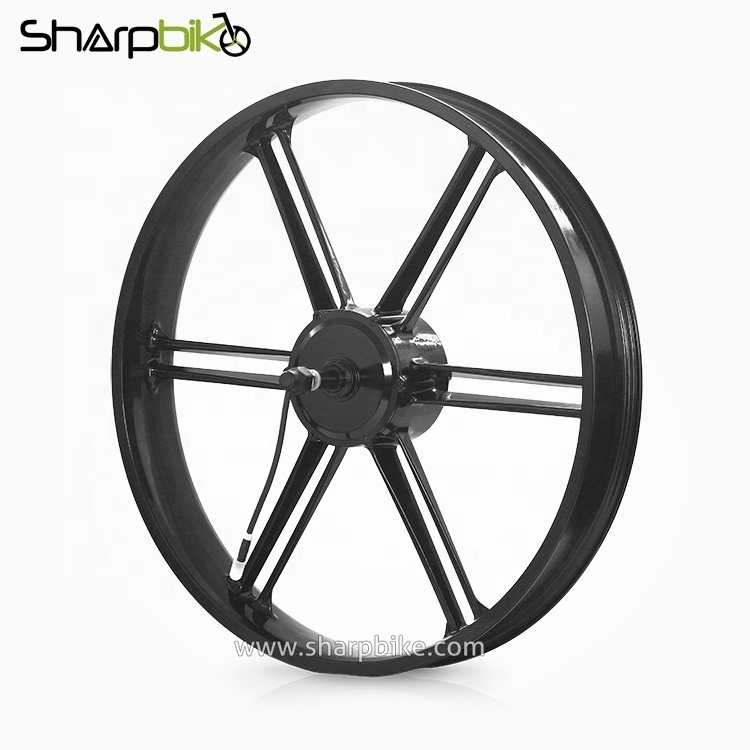

26" x 4.0 fat tire hub motor wheel 36v 500w gear motor
Product View
Specifications
|
SPECIFICATIONS - MTF01V Electric Bike Motor |
|
|
Core Data |
|
|
Position |
Rear Motor and Front Wheel |
|
Wheel |
26" Magnesium Alloy Wheel |
|
Construction |
Geared Drive |
|
Rated Voltage (DCV) |
48V |
|
Rated Power (W) |
750W |
|
Rated Efficiency |
≥82% |
|
Max Torque (Nm.) |
70 |
|
Surface Color |
Black |
|
Weight(Kg) |
6 |
|
Noise Grade (dB) |
≤55 |
|
Operating Temperature ( ℃) |
-20-45 |
|
Hall Sensor |
Optional |
|
Integrate speed sensor |
Optional |
|
Mounting Parameters |
|
|
Brake Type |
Disc Brake |
|
Installation Widths (mm / OLD) |
135mm(Front); 175mm/190mm(Rear) |
|
Cabling Route |
Shaft Center, Right |
|
Freewheel |
6-9S |
|
Tests & Certifications |
|
|
Salt fog test(h) |
24/96 |
|
Waterproof Grade |
IP54 |
|
Certifications |
CE |
