Quick Details
-
Charge Temperature Range:
-
0℃~60℃
-
Discharge Temperature Range:
-
-20℃~60℃
-
Optimum Operation Temperature:
-
5℃~45℃
-
Weight:
-
50kg
-
Dimensions:
-
442*410*178mm
Quick Details
-
Model Number:
-
48V 100AH
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Charge Temperature Range:
-
0℃~60℃
-
Discharge Temperature Range:
-
-20℃~60℃
-
Optimum Operation Temperature:
-
5℃~45℃
-
Weight:
-
50kg
-
Dimensions:
-
442*410*178mm

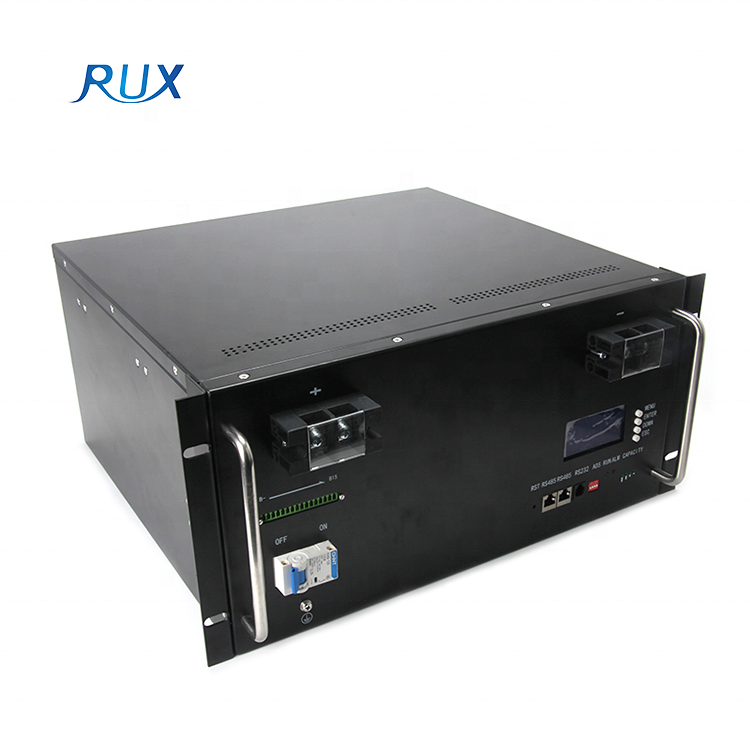

5000 Cycles Emergency Power 48V 100Ah Lithium Ion Lifepo4 Battery Pack
48V 100Ah LiFePO4 (Lithium lron Phosphate) battery products, focusing on energy storage and power backup fields, especially used in telecom base station, UPS, renewable energy system, etc.Using smart BMS and system design technology, the batteryexhibits excellent performance and reliabilityt, with light weight and strong environmental adaptability.
Technical Data
|
ITEM
|
Technical Parameters
|
|
Nominal Voltage
|
48V
|
|
Nominal Capacity
|
100Ah
|
|
Energy
|
4800Wh
|
|
Internal Resistance
|
≤100mQ (without BMS)
|
|
Cycle Life
|
≥5000 cycles @80% DOD,25℃
|
|
Design Life
|
≥20 years @25℃
|
|
Self-Discharge (90 days)
|
≤5%，@25℃
|
|
Efficiency of Charge
|
≥98%
|
|
Efficiency of Discharge
|
≥100%@ 0.2C≥96%@ 0.5C
|
|
Charge Voltage
|
54.0V土0.1V
|
|
Charge Mode
|
0.2C to 54.0V, then 54.0V charge current to 0.02C (CC/CV)
|
|
Max.Charge Current
|
100A
|
|
Charge Cut-off Voltage
|
56.25V±0.2V
|
|
Max. Continuous Discharge Current
|
100A
|
|
Discharge Cut-off Voltage
|
42V±0.2V
|
|
Charge Temperature Range
|
0℃~60℃
|
|
Discharge Temperature Range
|
-20℃~60℃
|
|
Optimum Operation Temperature
|
5℃~45℃
|
|
Storage Temperature
|
-20℃~55℃ ≤85% relative Humidity
|
|
Water Dust Resistance
|
IP20
|
|
Case
|
Iron (Insulation painting)
|
|
Dimensions (including the handles)
|
442*410*178mm
|
|
Weight
|
~50kg
|
|
Gravimetric Specific energy
|
~95Wh/kg
|
|
Method
|
15S Cylindrical cells
|
|
Protocol
|
RS485 (2 Nos)/RS232
|
|
SOC Light
|
4*LED
|
|
LCD Screen
|
Optional
|
Products Features
*
Longer Cycle Life:
Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery. Helping to minimize replacement cost and reduce total cost of ownership.
* Lighter Weight: About 40% of the weight of a comparable lead acid battery. A "drop in"replacement for lead acid battery.
* Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity.
* Wider Temperature Range: -20°℃~60℃
* Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, over charging or short circuit situation.
* No Memory Effect: Support unstable partial state of charge(UPSOC)(charge/discharge)utilization.
* Lighter Weight: About 40% of the weight of a comparable lead acid battery. A "drop in"replacement for lead acid battery.
* Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity.
* Wider Temperature Range: -20°℃~60℃
* Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, over charging or short circuit situation.
* No Memory Effect: Support unstable partial state of charge(UPSOC)(charge/discharge)utilization.
Application
* Electrical vehicles
* Solar/wind energy storage system
* UPS, backup power
* Telecommunication
* Medical equipment
* Lighting
