2P 3P 4P HGL Disconnector Load Break Isolation Switch Without Fuse

FOB Reference Price: Get Latest Price

≥500 Pieces

US $2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: JUNW/OEM

Model Number:: HGL

Max. Current:: 3150A

Type:: AC DC

Pole:: 3P 4P

Contact material:: Red copper T3

Material:: PA66 or DMC

Product Name:: Isolation switch

OEM&ODM:: Yes

Color:: White/Black

Certificate:: CE ISO9001

Operation Mode:: Direct or Outside the board

Current:: 63A/100A/160A/250A/400A/630A/1000A/1250A/1600A/2500A/3150A

Certification:: CE ISO9001

Quick Details

Whether the smart:: NO

Max. Voltage:: AC660V DC440V

Place of Origin:: Zhejiang, China

Brand Name:: JUNW/OEM

Model Number:: HGL

Max. Current:: 3150A

Type:: AC DC

Pole:: 3P 4P

Contact material:: Red copper T3

Material:: PA66 or DMC

Product Name:: Isolation switch

OEM&ODM:: Yes

Color:: White/Black

Certificate:: CE ISO9001

Operation Mode:: Direct or Outside the board

Current:: 63A/100A/160A/250A/400A/630A/1000A/1250A/1600A/2500A/3150A

Certification:: CE ISO9001

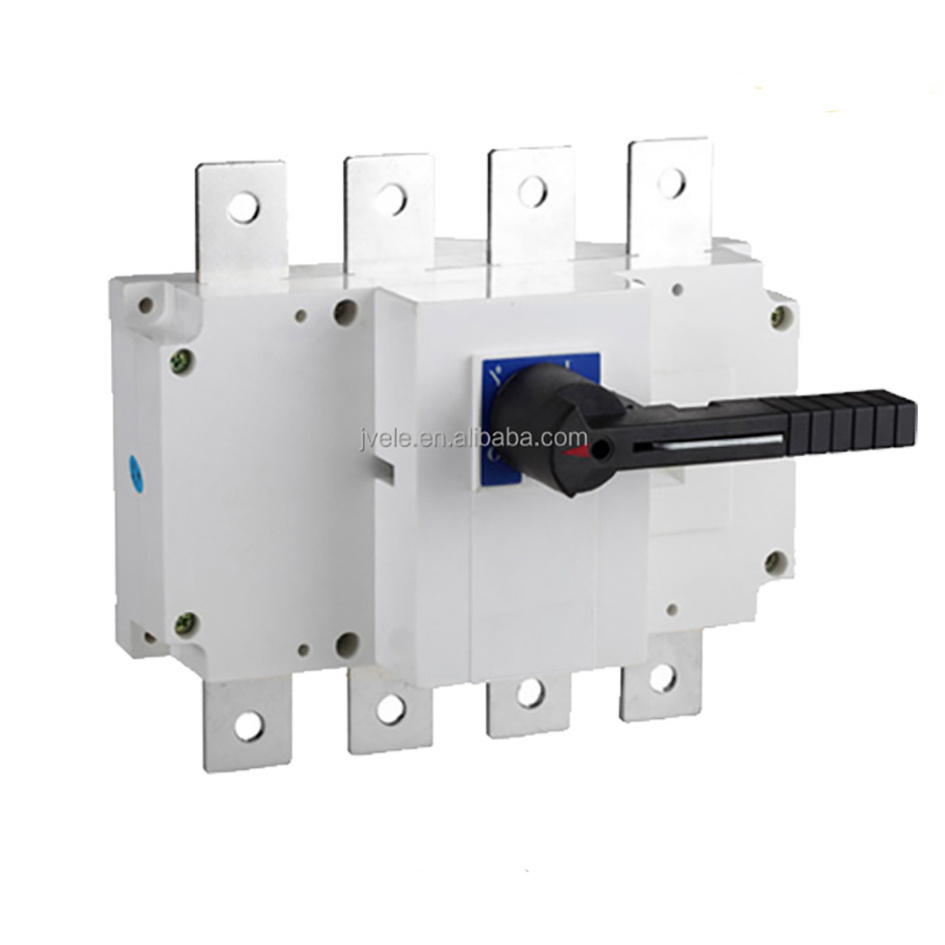

3P 4P HGL Disconnector Load Break Isolation Switch Without Fuse

63A/100A/160A/250A/400A/630A/1000A/1250A/1600A/2500A/3150A

Application

HGL Series load isolation switch is suitable for AC 50HZ, AC rated voltage up to 660V, DC rated voltage up to 440V, rated current up to 3150A. The switch is used to breaker the circuit infrequency and electrical isolation, widely used in construction, electric power, petrochemical and other industries of power distribution system and automation system.

Operation Mode

*Direct operation: The handdle is installed in the middle of switch directly.

*Operate outside of cabinet: The handdle is installed outside of distribution cabinet.

*It can be assembled two groups auxiliary contacts.

Specification

HGL-63/3	HGL-63/4
HGL-100/3	HGL-100/4
HGL-160/3	HGL-160/4
HGL-250/3	HGL-250/4
HGL-400/3	HGL-400/4
HGL-630/3	HGL-630/4
HGL-1000/3	HGL-1000/4
HGL-1250/3	HGL-1250/4
HGL-1600/3	HGL-1600/4
HGL-2500/3	HGL-2500/4
HGL-3150/3	HGL-3150/4
HGLR-63/3	HGLR-63/4
HGLR-160/3	HGLR-160/4
HGLR-250/3	HGLR-250/4
HGLR-400/3	HGLR-400/4
HGLR-630/3	HGLR-630/4
HGLR-1250/3	HGLR-1250/4
