- Product Details
- {{item.text}}
Quick Details
-
Application:
-
construction
-
Design Style:
-
construction
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FYG
-
Model Number:
-
SC200/200
-
Type:
-
Elevators
-
Product name:
-
SC200/200 construction elevator
-
Color:
-
Orange
-
Usage:
-
Construction Elevating Equipment
-
Keywords:
-
construction elevator
-
Max lifting height:
-
150/300m
-
Lifting speed:
-
33m/min
-
Rated motion speed:
-
1.2m/s
-
Payment Terms:
-
T/T
-
Passengers:
-
16
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Other
-
Project Solution Capability:
-
Others
-
Application:
-
construction
-
Design Style:
-
construction
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
FYG
-
Model Number:
-
SC200/200
-
Type:
-
Elevators
-
Product name:
-
SC200/200 construction elevator
-
Color:
-
Orange
-
Usage:
-
Construction Elevating Equipment
-
Keywords:
-
construction elevator
-
Max lifting height:
-
150/300m
-
Lifting speed:
-
33m/min
-
Rated motion speed:
-
1.2m/s
-
Payment Terms:
-
T/T
-
Passengers:
-
16

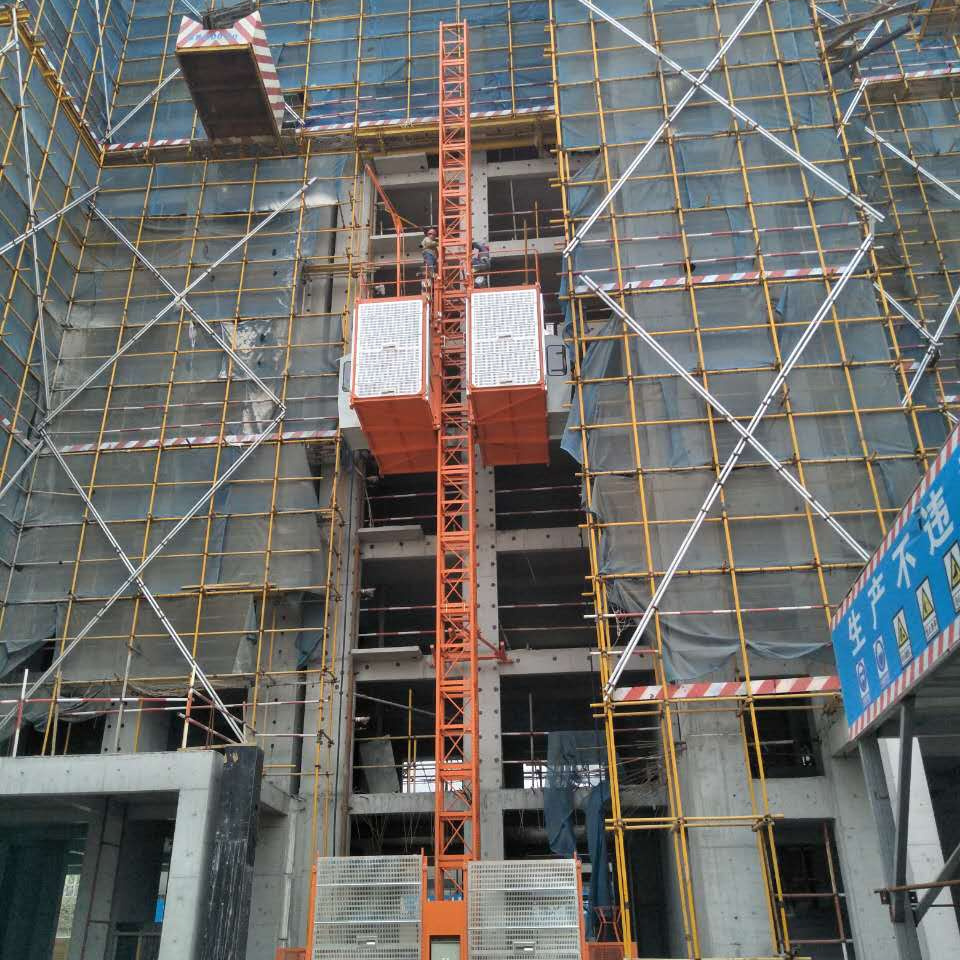

SC200/200 construction elevator
SC200/200 construction elevator elevator construction elevator construction hoists
| Technical parameters |
Unit |
SC200/200 Frequency Construction hoists | |
| Height | m |
300 |
|
| Rated load | kg | 2000/2000 | |
| Maximum capacity | 009/009 | ||
| Boom lift wweight | kg | ≤200 | |
| Lifting speed | m/min | 0-40 0-45 0-55 0-66 | |
| Electormotor | Model | YZEJ132M(L)-4 | |
|
Power |
kw | 15×2/15×2 11×3/11×3 15×3/15×3 18.5×3/18.5×3 | |
| Speed-limiter | Model | SAJ40-1.2A SAJ40-1.4 | |
| Rated tripping speed | m/s | 1.2/1.4 | |
| Standard motion speed | m/s | 1.1/1.35 | |
| Rated automaticload | KN |
40 |
|
| Type | gradual | ||
| Reducer | Model | SWC1 TU68T TU66T | |
| Center distance | mm | 125 | |
| Speed radio | 1:12 1:10 | ||
| Bracking distance | m | 0.3-1.2 | |
| Mast section dimension | mm | 650×650×1508 | |
| Crane cage inner net dimension | m | 3.0×1.3×2.2 3.2×1.5×2.2 | |
| Guardrail dimension | m | 5.53×3.42×1.82 5.93×3.62×1.82 | |
| Hoistway dimensions | m | ||
| Free end height of the guide rail frame | m | ≤9 | |
| Gounterweight weight | kg | ||
| Direct attached frame | Installing interval | m/set | 006-9 |
| Distance between two embedded parts | mm | ≈1488 | |
| Installation dimensions from center of rail frame to building wall | mm | 2800-3200 | |
| Safe and protection system | Upper and below limited switches,upper and below limit utmost switches,gate limited switch,falling avoiding safe device,cushion device,safe lock of gate,counterweight rope breaking or loose protecting device,safe hook,The safety device against overload,Anti-punching standard section etc. | ||
SC200/200 construction elevator elevator construction elevator construction hoists
SC200/200 construction elevator construction elevator construction elevator construction hoists
— — · FAQ · — —
1. Are you a trader or manufacturer?
A:We are manufacturer, which means that we can off you the best price and provide you the quick feedback after-sale service.
2. What's the difference between converter motor and constant frequency motor?
A:Converter motor hoist is steadier in the process of going up and down than constant frequency motor hoist.
3.
Quotation request
:
If you are interested in our products, please provide the following parameters :
1) Load capacity (ton)
2) Lifting height (m)
3) Local power supply (kV, Hz)
4) Other special equipment
We will provide best price once confirmed the above.
4.Can you accept OEM or ODM?
Of course.Logo is also acceptable.
5. What is the warranty term of your product?
A: The warranty term of our product is 12months. Within warranty, if there is any quality defect, we will solve this problem as soon as possible.
6.if i want to be your agent,is it possible?
welcome to be our agent to cooperate for the business.
