Quick Details
-
Product name:
-
16 DVB T DVB C ISDB T ATSC DVB-S2 Tuner to RF Modulator
-
Application:
-
Digital TV Head-end System
-
Input:
-
16 FTA DVBS DVBS2 tuner
-
Output:
-
8 RF, 2 ASI, IP
-
Modulation:
-
DVBC,DVBT, ISDBT, ATSC
-
Descramble:
-
Biss key
-
ASI Output:
-
2 ASI Independent output
-
Support:
-
TS Re-multiplexing
-
Protocol:
-
Support UDP RTP Multicast Unicast
-
Sertification:
-
FCC CE
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Catcast
-
Model Number:
-
HP1608C
-
Product name:
-
16 DVB T DVB C ISDB T ATSC DVB-S2 Tuner to RF Modulator
-
Application:
-
Digital TV Head-end System
-
Input:
-
16 FTA DVBS DVBS2 tuner
-
Output:
-
8 RF, 2 ASI, IP
-
Modulation:
-
DVBC,DVBT, ISDBT, ATSC
-
Descramble:
-
Biss key
-
ASI Output:
-
2 ASI Independent output
-
Support:
-
TS Re-multiplexing
-
Protocol:
-
Support UDP RTP Multicast Unicast
-
Sertification:
-
FCC CE
IPTV 16 FTA tuner to modulator with DVBT DVBC ISDBT ATSC 2ASI 8 carriers RF ip output modulator
Product Description
Product Overview

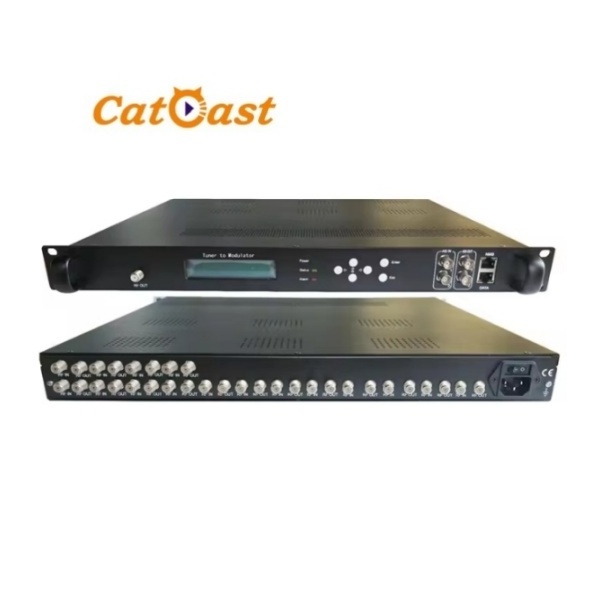

HP1608C 16 DVB-S2 Tuner to Modulator is a professional high integration device which includes tuner demodulation, multiplexing,and modulation. It support 16 DVB-S2 tuner inputs, 8 carriers of DVB-T/DVB-C/ATSC/ISDB-T RF output, ASI and IP output. It also support Biss descrambling function. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting, IPTV live channel streaming, etc.
Key Features
* 16 FTA DVB-S/S2 tuner input(DVB-T/(T), ISDB-T, ATSC, DVB-C optional)
* Support Biss-key descrambling
* 1000M IP output over UDP and RTP protocol(MPTS and SPTS)
* 8 carrier DVB-T (ISDB-T, ATSC, DVB-C) RF output
* 2 ASI inputs
* 2 ASI
Independent output
(optional) as copy of 5MPTS
* Support “Null PKT Filter” function
* Support PID Remapping/ PCR accurate adjusting
* PID pass
* LCD、key function
* Control via web management, and easy updates via web
Specification
|
Input
|
16 FTA DVB-S/S2 tuner inputs,(DVB-T/(T), ISDB-T, ATSC, DVB-C) otpional
|
|
|
|
|||
|
|
2 ASI inputs
|
|
|
|
|||
|
|
1000M IP input
|
|
|
|
|||
|
Output
|
8 carriers RF output
|
|
|
|
|||
|
|
2 ASI output
|
|
|
|
|||
|
|
IP output（SPTS and MPTS）IP output over UDP and RTP protocol
|
|
|
|
|||
|
Multiplexing
|
Maximum PID Remapping
|
180 output pids per channel
|
|
|
|||
|
|
Function
|
PID remapping ( automatically or manually)
|
|
|
|||
|
|
|
Accurate PCR adjusting
|
|
|
|||
|
Modulator
|
DVB-T
|
RF number
|
8 DVB-T output
|
|
|||
|
|
|
Standard
|
EN300744
|
|
|||
|
|
|
FFT mode
|
2K
|
|
|||
|
|
|
bandwidth
|
6M, 7M, 8M
|
|
|||
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
|||
|
|
|
Guard Interval
|
1/4, 1/8, 1/16, 1/32
|
|
|||
|
|
|
FEC
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|||
|
|
|
MER
|
≥42 dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~ -10 dBm, 0.1db step
|
|
|||
|
|
DVB-C
|
RF number
|
8 DVB-C output
|
|
|||
|
|
|
Standard
|
EN300 429/ITU-T J.83A/B/C
|
|
|||
|
|
|
MER
|
≥42db
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
|
|
Symbol Rate
|
5.0Msps~7.0Msps,1ksps stepd
|
|
|||
|
|
|
|
J.83A
|
J.83B/J.83C
|
|||
|
|
|
Constellation
|
16/32/64/128/256QAM
|
64/256 QAM
|
|||
|
|
|
Bandwidth
|
8M
|
6M
|
|||
|
|
ATSC
|
RF number
|
8 ATSC output
|
|
|||
|
|
|
Standard
|
ATSC A/53
|
|
|||
|
|
|
Bandwidth
|
6M
|
|
|||
|
|
|
Constellation
|
8VSB
|
|
|||
|
|
|
FEC
|
RS(208 188)+Trellis
|
|
|||
|
|
|
MER
|
≥42dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
|
ISDB-T
|
RF number
|
8 ISDB-T output
|
|
|||
|
|
|
Standard
|
ARIB STD-B31
|
|
|||
|
|
|
Bandwidth
|
6M
|
|
|||
|
|
|
Constellation
|
QPSK, 16QAM, 64QAM
|
|
|||
|
|
|
Guard Interval
|
1/32, 1/16, 1/8, 1/4
|
|
|||
|
|
|
Transmission Mode
|
2K
|
|
|||
|
|
|
Code rate
|
1/2, 2/3, 3/4, 5/6, 7/8
|
|
|||
|
|
|
MER
|
≥42dB
|
|
|||
|
|
|
RF frequency
|
50~960MHz, 1KHz step
|
|
|||
|
|
|
RFoutput level
|
-34~-10dBm , 0.1dBm step
|
|
|||
|
System function
|
Network management(WEB)
|
|
|
|
|||
|
|
Chinese and English language
|
|
|
|
|||
|
|
Ethernet software upgrade
|
|
|
|
|||
|
Miscellaneous
|
Dimension
(W×L×H) |
482mm×480mm×45mm
|
|
|
|||
|
|
Approximate
Weight |
7KG
|
|
|
|||
|
|
Environment
|
0~45℃(work)；-20~80℃(storage)
|
|
|
|||
|
|
Power requirements
|
AC100~240V，50/60Hz
|
|
|
|||
Related Products
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
Company Introduction
Catcast Technology Co.,Ltd
is a high-tech enterprise which concentrates on the research, manufacture, sale and engineer service of digital TV headend & broadcasting equipments with 18 years history in Chengdu, China. Catcast is building up both domestic and overseas markets while making a good contribution to the TV broadcasting industry. As a TV network investor, we have accumulated a great deal of experience in network operation of cable or wireless digital TV, IPTV, DSNG system as well as transfer analog tv system to digital tv system. Upgrade CATV/MATV to IPTV system. We are always striving for innovation , and keep the principle to do business: The same product , we win the quality. The same quality, we win the price.
