The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the
moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
Varies
-
Weight:
-
2800 KG
-
After-sale service:
-
24 Hours Service Hotline
-
Installation:
-
Under Engineer's Guide
-
Price:
-
Lowest
-
Product name:
-
Jaw Crusher Machine
-
Name:
-
Crusher Stone Machine
-
Keyword:
-
Stone Breaker
Quick Details
-
Application:
-
Quarry, Building Material
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ASCEND
-
Dimension(L*W*H):
-
Varies
-
Weight:
-
2800 KG
-
After-sale service:
-
24 Hours Service Hotline
-
Installation:
-
Under Engineer's Guide
-
Price:
-
Lowest
-
Product name:
-
Jaw Crusher Machine
-
Name:
-
Crusher Stone Machine
-
Keyword:
-
Stone Breaker
Products Introduction

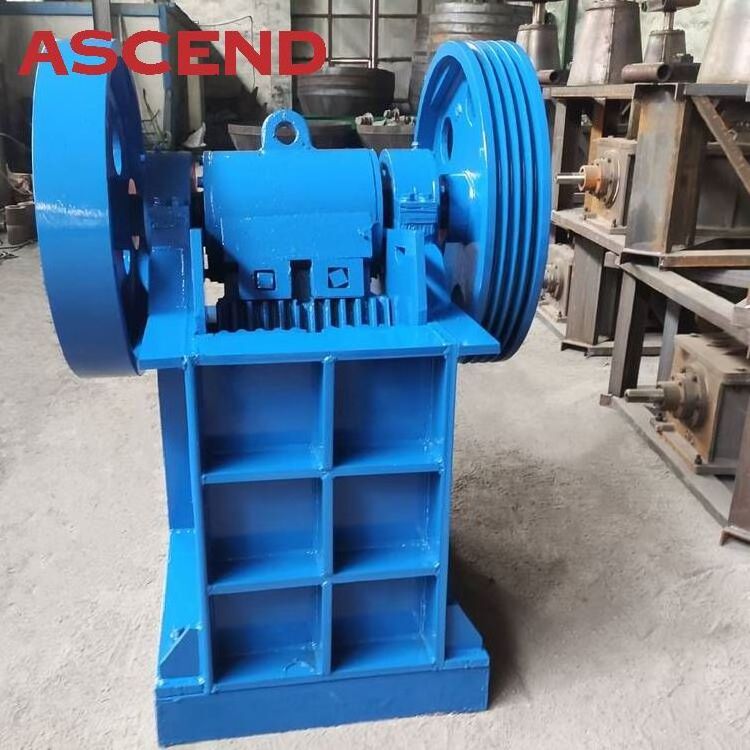

ASCEND Jaw Crusher
Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on. The Jaw Crusher is suitable for primary and secondary crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.
Working Principle
Jaw Crusher Principle
Specifications
|
Model
|
Feed openning size(mm)
|
Max feeding size(mm)
|
Discharge range(mm)
|
Capacity(t/h)
|
Power (kw)
|
Weight (t)
|
|
PE150x250
|
150x250
|
125
|
10-40
|
1-3
|
5.5
|
0.7
|
|
PE250x400
|
250x400
|
210
|
20-60
|
5-120
|
15
|
2.8
|
|
PE400x600
|
400x600
|
340
|
40-100
|
30-50
|
30
|
7
|
|
PE500x750
|
500x750
|
425
|
50-180
|
35-80
|
55
|
12
|
|
PE600x900
|
600x900
|
500
|
50-180
|
80-150
|
75
|
17
|
|
PE750x1060
|
750x1060
|
630
|
80-140
|
110-320
|
90
|
31
|
|
PE900x1200
|
900x1200
|
750
|
95-165
|
220-350
|
160
|
52
|
|
PE1200x1500
|
1200x1500
|
1020
|
150-350
|
400-800
|
220
|
100
|
|
PE150x750
|
150x750
|
120
|
18-48
|
10-25
|
15
|
3.8
|
|
PE250x750
|
250x750
|
210
|
15-60
|
15-35
|
30
|
6.5
|
|
PE250x1000
|
250x1000
|
210
|
15-60
|
16-52
|
37
|
7
|
|
PE250x1200
|
250x1200
|
210
|
15-60
|
20-60
|
45
|
9.7
|
Main parts & Spare parts
Packing & Shipping
ASCEND working sites
FAQ
1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
2. To which country your products have been exported before?
In Africa , We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries . Our equipment and service have won very high reputation in these countries.
3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
5.What about the payment method?
T/T, Paypal, Western Union, L/C is available
6.What about after-sale service?
12 months warranty for all kinds of products; And you will get our 7*24h online service.
