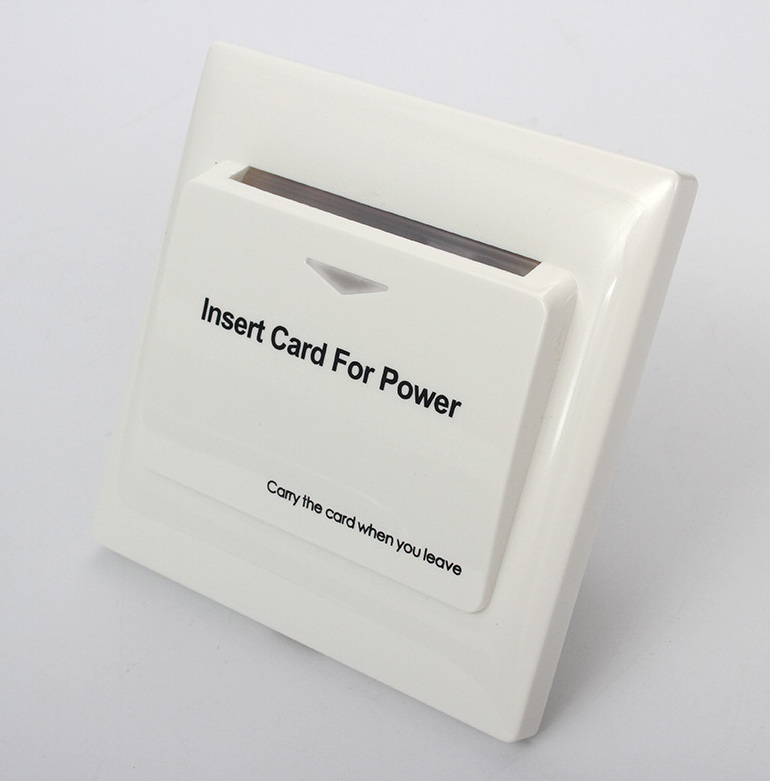

European Standard Hotel Key Card Power Energy Saving Switch
Specifications
2)Delay 15 seconds turn off lights
3)Max Load: 30A / 6000W
4)Blue LED backlight
5)220V AC / 12V DC
Hotel Key Card Switch
Description
This hotel room key card power switch is designed specifically for energy saving and safety of hotels, guesthouses.
After installation of dedicated card power saving switch, as soon as guests check-in insert card into the power-saving switch at the side of interior door, the power is available for the electrical equipment in the room (lighting, air conditioner, television, etc.) can be used; when guests leave the room, the guests take out the door card (guests must pull the card out, because they have to use it to open the door after return), power-saving switch shall be off automatically after delay about 15 seconds to ensure energy saving and safety.
Graceful curve design
Its ultra-thin flow line, with smart curves, elegant contours, well match the wall surfaces perfectly and naturally. Silver decorative texture border inadvertently is shining light of wisdom. It’s good choice for modern hotel.
Inclined card slot
G2KS uses the inclined card slot frame humanized design, very convenient for the guests to insert key card access to gain power.
LED back-light indicator
When no card inserted, the G2KS switch blue indicator back-light will be on, once guests open the door, you can find it fast and convenient in dark.
High sensitivity technology
Advanced RF sensor technology, sensor distance is about 50MM.
Metal copper port
Greatly improve the conductive performance, reduced contact resistance, increase the intensity of switch wiring, well improve the products robustness and stability.
Cooling grid design
This open grid design, can full cooling, thereby prolonging the switch service life well.
Completely closed design
G2KS uses completely closed design, effective isolation force electric, ensure the user’s absolutely safe.
30A power relay
30A power relay, Max 6600W, completely satisfied Global hotel request.
High-grade Bulletproof glue
G2KS energy saving switch uses high-grade imported PC material, impact resistance, fire retardant, and never fade.
Lots of colors to choose
Different panel color choice to meet your hotel decorate style request, such as magnetic white, silver, champagne gold, including panel words and logo printed.
Related Products
OEM is also available for the install mounting box and card content design and print.
Used in different areas
Suitable for hotels, apartment, motel, schools, colleges, universities, hospitals, leisure centres and offices etc.
Energy saving
Power-saving economic analysis for GTD brand (GTD) hotel key card power switch is designed : (according to the electrical configuration of the standard rooms):
|
split-style air-conditioner 1000W |
TV 120W |
Table lamp 40W |
right and left bedside lamps 25W * 2 |
Mirror front lamp 20W |
Floor lamp 25W |
Passage lamp 25W |
|
Total Power: 1000W + 120 W + 40W + 25W * 2 + 20W + 25W + 25W = 1280W = (1.28KW) |
||||||
|
Based on calculation according to the above power statistics, supposing 120 hotel rooms available, 1.0 USD per kilowatt, average power-saving for two hours per day in each room, then after using GTD card-in power-saving switch, the hotels can annually save electricity: 1.28 kilowatts x 120 rooms x 2 hours / per day × 365 days × 1.0 USD / kWh = 112,128 USD. |
||||||
Technical details
Operating voltage: 50/60Hz 80-260VAC (other voltages can be customized, such as 12V DC, 110V AC)
Maximum load current: 30A
Maximum load power: 6000W
Quiescent operating power: 1W
Delay power-off time :10- 20 seconds
Non-working condition: light blue
Service life: When relay contacts 220V in the full load, life expectancy greater than 10 million
Operating temperature: -10°c - 60°c
Working humidity: 10-95% RH
Overall dimensions: W86mm * H86mm * D40mm
Case Material: Imported fire retardant PC plastic
