Cast Iron/Grey Iron/Ductile Iron Making Machine Molten Metal Pouring Foundry Ladle

Cast Iron/Grey Iron/Ductile Iron Making Machine Molten Metal Pouring Foundry Ladle

FOB Reference Price: Get Latest Price

≥1 Sets

US $800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: Customized

Power:: Customized

Dimension(L*W*H):: 680*800*1100MM

Weight (KG):: 980

Product name:: Foundry Steel Pouring Ladle

Specification:: 0.5-300tons

Production Capacity:: 50PCS/Month

Capacity:: 0.2-360tons

Package Size:: 160cm*140cm*190cm

Quick Details

Place of Origin:: Shandong, China

Machine Type:: Pouring Iron Ladle

Brand Name:: TZZJ

Voltage:: Customized

Power:: Customized

Dimension(L*W*H):: 680*800*1100MM

Weight (KG):: 980

Product name:: Foundry Steel Pouring Ladle

Specification:: 0.5-300tons

Production Capacity:: 50PCS/Month

Capacity:: 0.2-360tons

Package Size:: 160cm*140cm*190cm

Product Display&Details

Foundry Pouring Ladle for Molten Steel

General Description

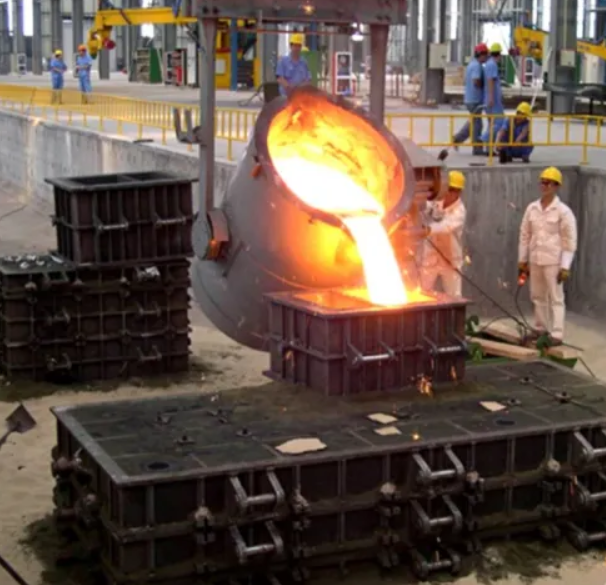

Foundry Pouring Ladle for Molten Steel is mainly used for pouring operation after receiving the liquid metal from the blast
furnace, then transported to the mould site to pouring.
It adopts worm and gear to operate flexibly and comfortably with two-way rotation and good reversibility. It is divided by manual and manual-electric dual operation. The manual operation is more convenient and electric operation is safe and labor-saving.
Feature of Foundry Pouring Ladle for Molten Steel
1) Reasonable choose the rotation center, convenient operation, basic can compound when pouring is finished .
2) Adopt double worm wheel pair transmission. Although manufacturing demand is high, but flexible transmission, two-way reversible.
3) Adding with special spray proof equipment, efficiently avoid iron water spraying into the gear box.

Product Overview

Casting Hot Metal Ladle Advantage Introduction

Casting Hot Metal Ladle Advantage Introduction The rotation centre is selected reasonably, which is easy to operate and can be reused after pouring. Double worm gear pair transmission is adopted. Although the manufacturing requirements are high, the transmission is flexible and free, and the bidirectional reversibility is good. The suspender adopts forging, which is more reliable and safe than the steel plate weldment. The cladding steel plate is thick, and the cladding bottom structure adopts the triple insurance of taper, bottom hoop and welding, which not only extends the service life but also ensures the safety of the operator. The main body and suspender, gearbox and handwheel are all equipped with a chain clamp plate which can be locked at any time. Two trunnions and suspenders are equipped with self-aligning bearings, which have a good consistency. The rotated type ladle is indispensable to casting equipment. Worm gear was made of copper, and worm has been conducted by steel quenched treatment. With secure and reliable worm gear and worm drive, the ladle has been equipped reasonably and processed in excellent workmanship, by which it has effectively solved common breakdown. Moreover, it can be manipulated easily, with flexible hand-wheel and worm in the perfect performance of self-latching.

Use the maintenance 1, lining refractory mortar, its thickness is: 0.5 tons of ~ 3 tons of wall at the bottom of the 60 mm 80 mm; 5 tons of wall at the bottom of the 80 mm 100 mm; 10 tons of wall at the bottom of the 100 mm 120 mm; More than 10 tons of wall at the bottom of the 150 mm mm; 2, check the handwheel, should live freely, no jam phenomenon. 3, within two trunnion bearing, and molybdenum disulfide grease once a week. 4, check the wheel lock card board is safe and reliable. 5, check whether the slowdown in the lack of oil, check once a week. 6, use for a long time, found the worm gear pair clearance increases, hazardous to safety when pouring, should change the worm gear pair.

FEATURES AT A GLANCE

Casting ladle for foundry plant includes hot metal ladle, molten steel ladle, spheroidizing ladle, aluminum ladle, teapot ladle,
copper ladle and soon on . Casting ladle and customized special casting ladle, as well as lifting ring roller table and lifting ladle. In addition, we also want to match the baking ladle, electric furnace dust collector, electric furnace charging equipment, etc.Ladle Foundry Foundry Ladle For Iron Casting

Insulation ladle

Left elevation

The teapot ladle

PRODUCT SPECIFICATIONS

Capacity (T)			0.3	0.5	0.75	1	1.5	2	2.5	3
Barrel outline (mm)	Top diameter φ1( mm)	520	606	643	722	830	897	943	1020
		Bottom φ2 (mm)	468	551	574	652	750	810	853	920
		Barrel height H (mm)	540	590	665	740	860	910	960	1035
		Width A (mm)	1070	1136	1207	1260	1380	1437	1550	1621
		Height B (mm)	1310	1349	1456	1479	1856	1890	2057	2131
Clearance height E (mm)			45	50	55	60	70	80	85	90
Patching thickness (mm)	Side wall b	35	40	45	50	60	60	65	90
Patching thickness (mm)		Ladle bottom b1	45	50	55	60	70	75	80	70
Hand wheel radius R (mm)			200	200	250	250	350	350	350	350
Speed radio i			≤70			≤100					≤180

The ladle is mainly used for the pouring and processing of molten metal in the foundry, and it can also be used as a transfer bag. We can design and manufacture your special ladle according to your company's technical and technological requirements.

Ladle type:

Bottom injection type ladle pouring type: plug rod bottom injection type and sliding nozzle bottom injection type; gantry is equipped with hook type and bearing type. Among them, the stopper rod bottom injection type ladle is equipped with sliding rod clearance elimination Mechanism to ensure that the center of the plug rod is consistent with the center of the nozzle after multiple uses. The boom adopts forgings, which is safer and more reliable than steel welding; the package body steel plate is thicker, and the package bottom adopts a combination of taper, bottom hoop and welding ribs, which not only extends the service life, but also ensures safety. The package body and boom are equipped with hinged pallets, which can be locked at any time; the plug rod below 15T, the sliding nozzle bottom-injected ladle is convenient for slag dumping, and the user can also be equipped with a manual rotation mechanism (worm gear reducer). The bottom injection ladle adopts a combination of steel bevel gear and copper worm gear to reduce speed, and has the characteristics of stable rotation and good self-locking performance.

PRODUCT CONFIGURATION

The material of the worm wheel is ZQAl9-4 cast aluminum bronze, and the shaft is 30CrMo, which ensures safety performance and has a good service life.

The final stage of the reducer adopts a reliable "self-locking" worm gear pair transmission, and the ladle has no safety hazards such as "knocking" ("nodding", "slipping") and other safety hazards to ensure safe use.

The design safety factor of the hoisting ring, suspension column, beam, and main shaft of the ladle is completely higher than the requirements of the national industry standards.
