Quick Details
-
Productivity:
-
30M³/H
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
60M
-
Max. horizontal conveying distance:
-
150M
-
Productivity:
-
30M³/H
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
|

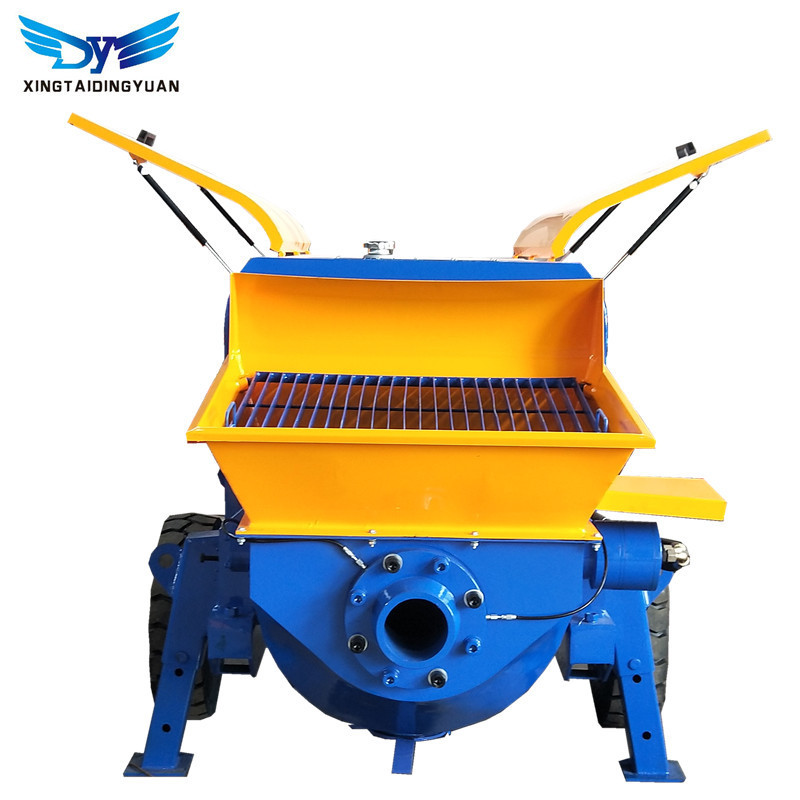

TECHNICAL DATA |
|
|
Model No. |
DY-HBTS50 |
|
Overall dimension (main machine) |
4200*1500*1550mm (L*W*H) |
|
Max. Conveying Capacity |
30 Cubic meter |
|
Max. Exit Pressure |
12Mpa |
|
Main Oil Pump |
KAWASAKI |
|
Distribution valve |
S Valve |
|
Max. Aggregate Size |
≤40mm |
|
Bore Diameter * Diameter |
180*1100 mm |
|
Pipe Diameter |
80mm/100 mm/125mm |
|
Engine Power |
66 KW |
|
Horizontal max. transport distance |
200m |
|
Vertical max. transport distance |
60m |
|
Control Way |
Electric or diesel driven |
|
Other configuration |
Can be matched |
|
Machine weight |
2400KG |
---------------------------------------------------------------------------------------------------------------------------------------------------------------
Features:
·Advanced with advanced S-tube valve to meet the transportation of fine stone concrete
·S tube valve is equipped with floating wear ring, which automatically compensates for wear and has good sealing performance.
·The glasses plate and cutting ring are made of high-hard wear-resistant alloy material for longer life.
·High export pressure to meet the transportation requirements of high-rise buildings and long-distance construction
·The hydraulic system adopts double-circuit open system, which has fast commutation speed and high efficiency.
·Hydraulic oil cooling adopts advanced air cooling system, no need to connect water source, easy to use
·With anti-pump function to minimize pipe blockage
·Equipped with automatic centralized lubrication system to ensure the service life of rotating parts
·Electrical part is controlled by PLC and has the best control characteristics
·Electric box with wired remote control for easy operation
If you have any questions, please feel free to contact me at any time !
1. Help you choose the most suitable machine.
2. C ustomize the machine according to your request.
3. Give you machine’s details and video for help you use the machine more better.
4. Normally the service life of our machines can be 3-5 years.
5. We offer full set of easy spoiled spare parts and tools for back up.
6. We can send our engineer abroad to training customers to operate the machine.
7. Normally We can resolve any problem online together with our customers. If necessary, We can send our engineer over sea.
