Quick Details
-
Product Name:
-
SRT HTTP RTMP UDP h.264 h.265 IPTV Encoder
-
Application:
-
IPTV System, OTT IPTV System, Hotel IPTV system, DVB System
-
Input:
-
8/12/16/24 HD input
-
Protocol:
-
Support SRT/TS/HLS/RTSP/FLV/RTMP/Multicast
-
Encoding:
-
H.264 or H.265
-
Audio Encoding:
-
AAC+/AAC++/MP3 optional
-
Bitrate Control:
-
CBR/VBR
-
LOGO insert:
-
Support LOGO, Caption insert
-
Management:
-
Web-based NMS Support
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Ustarlink, Ustarlink
-
Model Number:
-
WS-9104
-
Product Name:
-
SRT HTTP RTMP UDP h.264 h.265 IPTV Encoder
-
Application:
-
IPTV System, OTT IPTV System, Hotel IPTV system, DVB System
-
Input:
-
8/12/16/24 HD input
-
Protocol:
-
Support SRT/TS/HLS/RTSP/FLV/RTMP/Multicast
-
Encoding:
-
H.264 or H.265
-
Audio Encoding:
-
AAC+/AAC++/MP3 optional
-
Bitrate Control:
-
CBR/VBR
-
LOGO insert:
-
Support LOGO, Caption insert
-
Management:
-
Web-based NMS Support

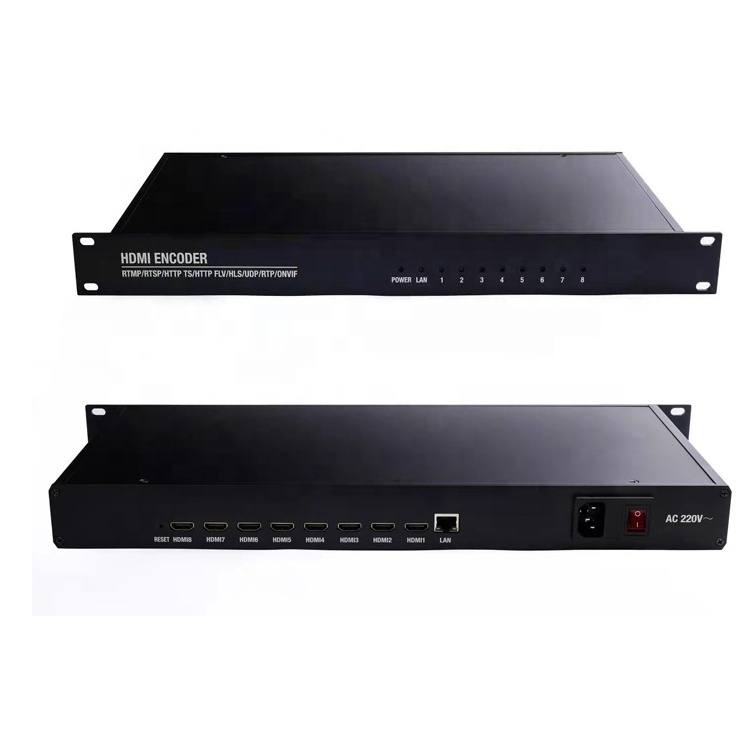

OTT IPTV System Low Cost SRT HTTP RTMP UDP h.264 h.265 HD IPTV Encoder
Technical specification
|
Input |
4/ 8 /12×HD input (1.4), HDCP 1.4---Option Ⅰ 4/8/12×SDI input---Option Ⅱ |
|||
|
Video Encoding |
Encoding Format |
HEVC/ H.265 , MPEG 4 AVC/H.264 |
||
|
Resolution |
HD |
3840×2160_30P, 3840×2160_29.97P (Encoding 2 CHs per module for H.265, and encoding 1 CH for H.264 ) 1920×1080_60P,1920×1080_59.94P,1920×1080_50P, (Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264) 1280×720_60P, 1280×720_59.94P, 1280×720_50P (Encoding 4 CHs per module for H.264 and H.265) |
||
|
SDI |
1920×1080_60P,1920×1080_59.94P,1920×1080_50P, (Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264) 1280×720_60P, 1280×720_59.94P, 1280×720_50P (Encoding 4 CHs per module for H.264 and H.265) |
|||
|
Input: 1920×1080_60i,1920×1080_59.94i,1920×1080_50i Output: 1920×1080_60P,1920×1080_59.94P,1920×1080_50P (Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264) |
||||
|
Chroma |
4:2:0 |
|||
|
Bitrate |
0.5Mbps~20Mbps (each channel) |
|||
|
Rate Control |
CBR/VBR |
|||
|
GOP Structure |
IBBP, IPPP |
|||
|
Advanced Pretreatment |
De-interlacing, Noise Reduction, Sharpening |
|||
|
Audio Encoding |
Encoding Format |
MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough |
||
|
Sampling rate |
48KHz |
|||
|
Bit-rate (each channel) |
48Kbps-384Kbps (MPEG-1 Layer 2 & LC-AAC) 24 Kbps-128 Kbps (HE-AAC) 18 Kbps-56 Kbps (HE-AAC V2) |
|||
|
Audio Gain |
0~255 |
|||
|
Stream output |
IP (1 MPTS and maximum 4 SPTS) output over UDP/RTP/RTSP per module, 1000M/100M Base-T Ethernet interface (unicast/ multicast); IPv4, IPv6 output IP null packet filter |
|||
|
System |
Web based management |
|||
|
Chinese-English control interface |
||||
|
Ethernet software upgrade |
||||
|
Miscellaneous |
Dimension (W× L× H) |
482mm×328mm×44mm |
||
|
Approx weight |
5kg |
|||
|
Temperature |
0~45 ℃ (work), -20~80 ℃ ( Storage ) |
|||
|
Power |
AC 100V-220V±10%, 50/60Hz |
|||
I-frames are the least compressible but don't require other video frames to decode.
P-frames can use data from previous frames to decompress and are more compressible than I-frames.
B-frames can use both previous and forward frames for data reference to get the highest amount of data compression.
|
Frame Type |
Byte of data/KB |
Compression Ratio |
|
I |
18 |
7:1 |
|
P |
6 |
20:1 |
|
B |
2.5 |
50:1 |
ET-9204-8 8 Channels H.265 IPTV Encoder
|
Audio Video Input |
Video Input |
1-8 Channels HD |
|
Audio Input |
1-8 Channel HD internal Audio |
|
|
Video Encoding |
Encoding Type |
H.264/H.265 |
|
H.264 Level |
Baseline /Main /High Optional |
|
|
Encoding Frame rate |
5-60 Adjustable |
|
|
Key Frame Interval(Frame) |
5-300 Adjustable |
|
|
Bitrate (kbit) |
32-32000 Adjustable |
|
|
Resolution |
3840x2160/1920x1080/1680x1056/1280x720/1024x576 /850x480/720x576/720x540/720x480/720x404/704x576 /640x480/640x360/608x448/544x480/480x480/480x384 /480x360/480x320/480x272/480x270/400x320/400x224 /352x480/352x228/320x256/320x240/320x180/240x180/ same as input signals resolution |
|
|
Bitrate Control |
Cbr/vbr optional |
|
|
IP Streaming output |
Support SRT/RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/UDP multicast /RTPmulticast |
|
|
Audio Encoding |
Encoding Sampling rate |
44100/48000 optional |
|
Encoding Way |
AAC/AAC+/AAC++/MP3/MP2/AC3 optional |
|
|
Audio Input |
Digital/Analog/Mix |
|
|
Encoding bitrate |
AAC:48000-256000 adjustable /AAC+:24000-48000 adjustable AAC++:12000-32000 adjustable /MP3:64000-320000 adjustable / MP2: 64000-320000 adjustable / AC3:40000-640000 adjustable |
|
|
Digital Volumn |
-50~50 adjustable |
|
|
RTSP Streaming using G711A Encoding |
Off/on , with 8K sampling optional |
|
|
OSD |
Transparency |
0-128 adjustable |
|
Text/picture/rolling text |
off/on optional |
|
|
Letter size |
8-72 |
|
|
X location |
0-1920 |
|
|
Y location |
0-1080 |
|
|
LOGO |
Support two LOGOs, optional |
|
|
Physical Spec. |
Network |
IP Giga Network |
|
Management |
WEB management |
|
|
Power Supply |
12V/DC,2A |
|
|
Power Consumption |
<5W |
|
|
Working Temperature |
-20℃+60℃ |
|
|
Working Humidity |
<90% |
|
|
L*W*H |
8.0cmX11.2cmX4.0cm (single channel HD input) 11.2cmX17.6cmX4.0cm(four channels HD input ) |
Q1: How could I test IPTV system?
We will provide on-line test by our cloud server or help install local server for customer test.
Q2: Could I add some function or design UI interfaces ?
Yes, We have powerful R&D strength to tailor customer's requirements.
Q3: How to make an order?
You can contact our sales by email, whatsapp, skype for quotation.
Q4: How to make payment?
You can make payment by bank TT, western union, Alipay, Paypal etc...
Q5: How about technical support?
We will provide on-line support by teamviewer or on-site support for our customer.
