Quick Details
-
After-sales Service Provided:
-
Video technical support, Overseas Call Centers
-
Brand Name:
-
dongfeng
-
Model:
-
CLW5003DSHQ
-
Place of Origin:
-
china
-
Dimensions (L x W x H) (mm):
-
12000*2600*3990
-
Box Dimensions (L x W x H) (mm):
-
9400*2440*2500
-
Temperature Range:
-
-18℃
-
Product name:
-
Reefer Freezer Cold Box Truck
-
Chassis Brand:
-
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
-
Brand:
-
SINOTUK HOWO
-
Name:
-
Thermo King Refrigerated Van
-
Key words:
-
Referigration Truck
-
Application:
-
Transport Freezer Food
-
Drive type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
Type:
-
Freezer Storage Transport Truck
-
Loading capacity:
-
1000kg-50000kg
-
Refrigeration unit:
-
International Top Brand
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
EURO 5
-
Gross Vehicle Weight:
-
≥30T
-
After-sales Service Provided:
-
Video technical support, Overseas Call Centers
-
Brand Name:
-
dongfeng
-
Model:
-
CLW5003DSHQ
-
Place of Origin:
-
china
-
Dimensions (L x W x H) (mm):
-
12000*2600*3990
-
Box Dimensions (L x W x H) (mm):
-
9400*2440*2500
-
Temperature Range:
-
-18℃
-
Product name:
-
Reefer Freezer Cold Box Truck
-
Chassis Brand:
-
DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman
-
Brand:
-
SINOTUK HOWO
-
Name:
-
Thermo King Refrigerated Van
-
Key words:
-
Referigration Truck
-
Application:
-
Transport Freezer Food
-
Drive type:
-
4*2/6*2/6*4/8*4/8*6/4*4/6*6/for Choice
-
Type:
-
Freezer Storage Transport Truck
-
Loading capacity:
-
1000kg-50000kg
-
Refrigeration unit:
-
International Top Brand

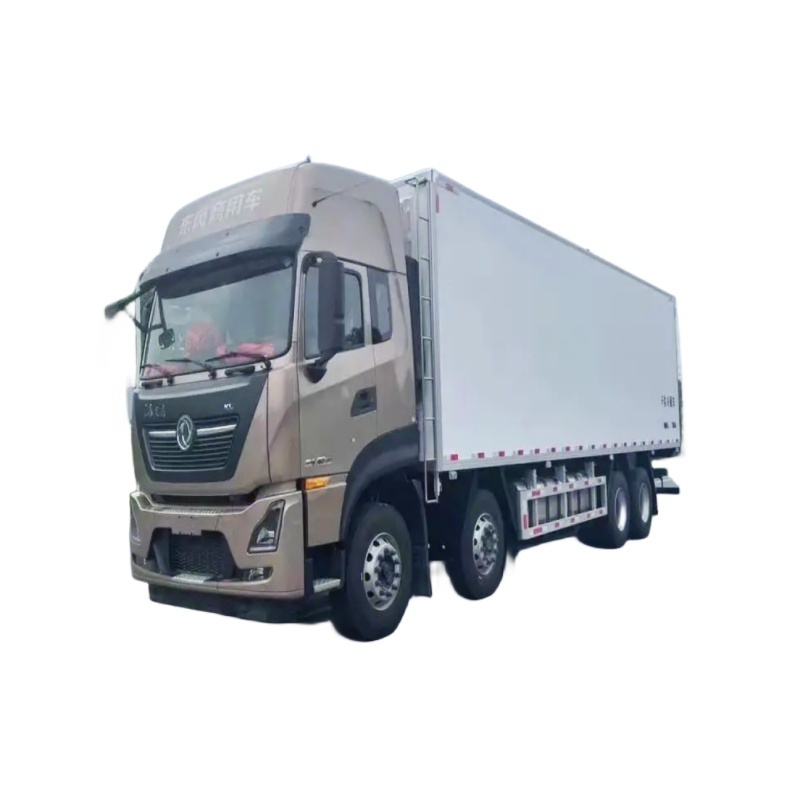

Dongfeng 20 ton 25 ton refrigerator truck frozen car fish hook refrigerator van for sale
A refrigerated truck is a closed box transport vehicle used for transporting frozen food, dairy products, vegetables and fruits, vaccines and drugs, etc. It is a refrigeration device equipped with a refrigeration unit and a polyurethane insulated compartment for refrigerated transportation. It can be classified by manufacturer, chassis carrying capacity, and carriage type.
|
Items |
Descriptions |
Specifications and Types |
|
General |
Truck Name |
Dongfeng refrigerated truck |
|
Drive Type |
8*4 |
|
|
Total mass Weight(kg) |
31000 |
|
|
Curb Weight(kg) |
21000 |
|
|
Overall Dimensions (mm) |
12000*2600*3990(L*W*H) |
|
|
Engine |
Engine Model |
B10.8NS6B465 |
|
Engine Brand |
Shang dong |
|
|
Fuel Type |
Diesel |
|
|
Power |
465hp |
|
|
Emission Standard |
Euro V |
|
|
Displacement(ml) |
10800 |
|
|
Chassis |
Chassis Brand |
CHINA |
|
Tire Specification |
12nos x 10.00 Nylon Tire |
|
|
Wheelbase (mm) |
2050+4600+1350 |
|
|
Axle No. |
331 |
|
|
Steering Wheel |
right hand drive |
|
|
Gear Box |
12speed forward with 1 reverse, manual |
|
|
Cold Room |
Box inner dimension(mm) |
9400*2440*2500 |
|
Box Side |
External/internal of the van are fiberglass between them is Polyurethane foam material. All joint glued and urethane sealed and with high-tensile screw to fasten. External corner capped with radius aluminum extrusions. |
|
|
Box Floor |
One layer cold-rolled steel plate, one layer polyurethane, one player bamboo plywood and cover with anti-skid checkered plate floor. |
|
|
Doors |
Double rear doors with stainless steel door furniture and refrigeration furniture door seals. door buffers and stainless steel door retainers included. |
|
|
Refrigerator Unit |
Refrigeration unit |
china brand |
|
Refrigerated temperature |
Optional -18 ℃to +5 ℃ |
T he pictures are for reference only. The company sells refrigerated trucks of various brands, drive type:4*2 4*4 6*4 8*4, such as 2.8 meters, 4.2 meters, 5.1 meters, 6.8 meters, 9.6 meters, and 1-25 tons refrigerated truck. For more details and configurations of the vehicles, please consult Manager Deng Cheng Li. All transport vehicles comply with national standards, are safe and reliable, and are sold directly by the manufacturer with quality assurance. Welcome to call or come to the factory for consultation and negotiation. The above models are only a partial display of our factory's models. Due to the wide variety of car specifications, they can also be customized according to customer needs.
If you want a brand and specifications that we have not listed, you can contact us .
