Quick Details
-
Cooling/Heating:
-
Cooling Only
-
Power Source:
-
Electric
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AOKOL
-
Model Number:
-
KF-35GW/XA
-
COP:
-
2.8
-
Power (W):
-
1350
-
Voltage (V):
-
220
-
Maximum Airflow Rate:
-
480
-
Featured Function:
-
energy saving
-
Recommended Room Size（square feet）:
-
15-25
-
Operation Temp:
-
16-32℃
-
Qty ' per 20' /40'HQ:
-
110/230PCS
-
Indoor Unit Net Dimension:
-
880*220*302mm
-
Outdoor Unit Net Dimension:
-
780*260*540mm
-
Refrigerant:
-
R410A
Quick Details
-
Capacity (btu):
-
18000
-
EER:
-
2.75
-
Type:
-
Split Wall Mounted Air Conditioners
-
Cooling/Heating:
-
Cooling Only
-
Power Source:
-
Electric
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AOKOL
-
Model Number:
-
KF-35GW/XA
-
COP:
-
2.8
-
Power (W):
-
1350
-
Voltage (V):
-
220
-
Maximum Airflow Rate:
-
480
-
Featured Function:
-
energy saving
-
Recommended Room Size（square feet）:
-
15-25
-
Operation Temp:
-
16-32℃
-
Qty ' per 20' /40'HQ:
-
110/230PCS
-
Indoor Unit Net Dimension:
-
880*220*302mm
-
Outdoor Unit Net Dimension:
-
780*260*540mm
-
Refrigerant:
-
R410A

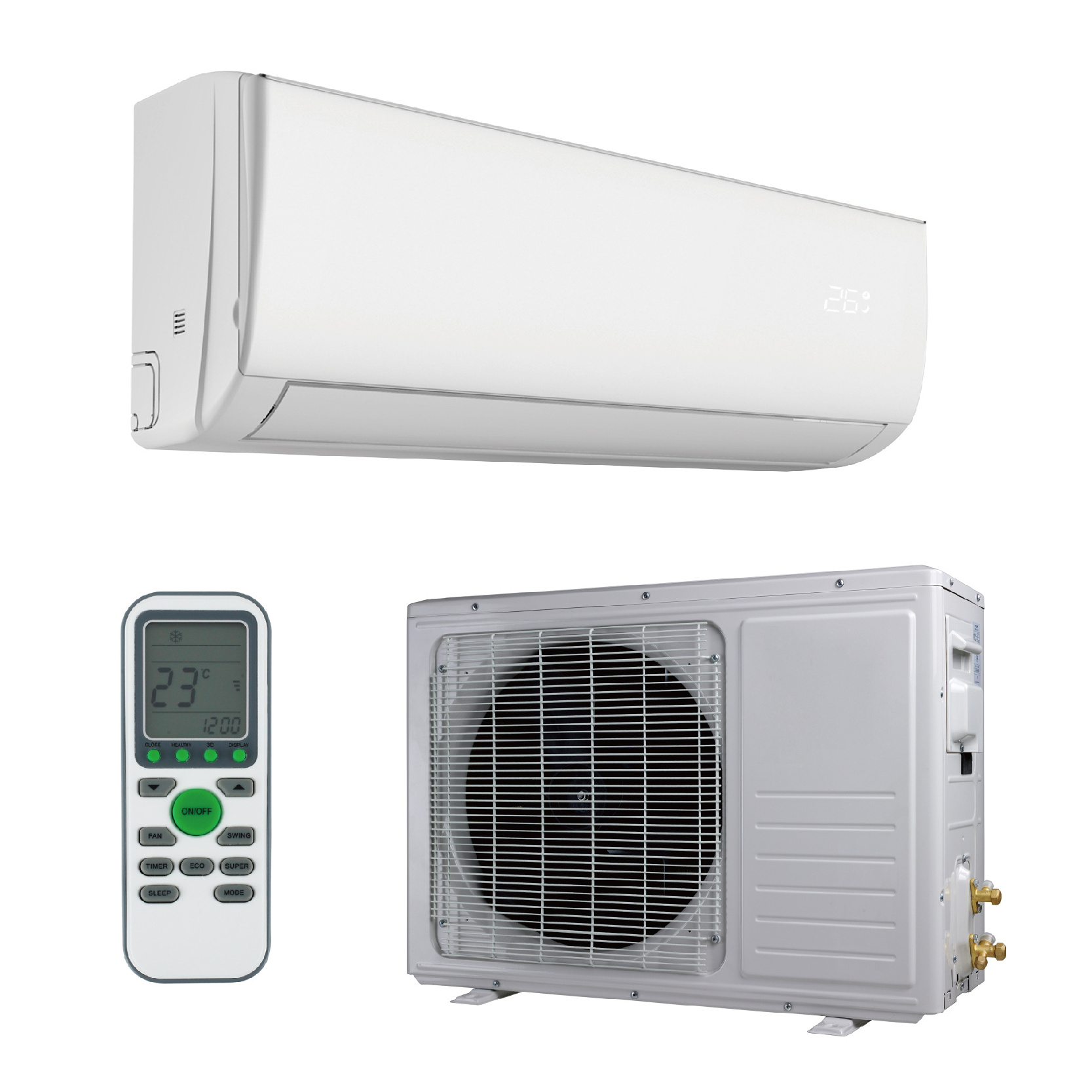

New Type cheap Wall Split air cooler R32 gas, R410A gas DC inverter Air Conditionerner
1:Use the known brand rotary type compressor;
2:High Efficient Internal Thread Copper pipe;
3:LED digital display, Fault Self-Diagnose Code Showing;
4:Self-diagnose capability, error code showing;
5:Intelligent Defrost,Independent Dehumidification,Sleep Mode,Quiet Operation;
6:Low Voltage Startup,Auto—protection,Auto Restart;
7:Optional Refrigerant:R410A & R32;
8:Optional Voltage:220V/50Hz & 220V/60Hz;
9:8:With CE,RoHS ,ISO9001, ISO14001 standard;
10:Sales Area:Mid East,Africa ,South America,Europe,Asia,Central America,Oceania;
| XA Series | |||||||||||||||||||||||||
| Model | 9000BTU | 12000BTU | 18000BTU | 24000BTU | |||||||||||||||||||||
| 0.75Ton | 1Ton | 1.5Ton | 2Ton | ||||||||||||||||||||||
| Factory Model | Cooling | KF-25GW/L2 | KF-35GW/L2 | KF-50GW/L2 | KF-70GW/L2 | ||||||||||||||||||||
| Cooling&Heating | KFR-25GW/L2 | KFR-35GW/L2 | KFR-50GW/L2 | KFR-70GW/L2 | |||||||||||||||||||||
| Optional Power Supply | Ph-V-Hz | 1.220V-240V/50Hz 0r 1.208V-230V/60Hz | |||||||||||||||||||||||
| Rated Cooling Capacity | w | 2500 | 3500 | 5000 | 7000 | ||||||||||||||||||||
| Rated Cooling input | w | 960 | 1370 | 1920 | 2750 | ||||||||||||||||||||
| Rated Cooling Current | A | 4.4 | 6.2 | 8.7 | 12.5 | ||||||||||||||||||||
| EER | Btu/w.h,w/w | 9.4/2.6 | 8.8/2.55 | 9.4/2.6 | 8.7/2.55 | ||||||||||||||||||||
| Rated Heating Capacity | w | 2550 | 3500 | 5050 | 7050 | ||||||||||||||||||||
| Rated Heating input | w | 940 | 1320 | 1900 | 2710 | ||||||||||||||||||||
| Rated Heating current | A | 4.3 | 6 | 8.7 | 12.3 | ||||||||||||||||||||
| COP | (w/w) | 2.7 | 2.65 | 2.65 | 2.6 | ||||||||||||||||||||
| Operation temp | °C | 18-30 | 18-30 | 18-30 | 18-30 | ||||||||||||||||||||
| Ambient temp | °C | -7-53 | -7-53 | -7-53 | -7-53 | ||||||||||||||||||||
| Indoor / Outdoor unit Noise | dB(A) | 36/50 | 38/52 | 39/55 | 42/62 | ||||||||||||||||||||
| Indoor / Outdoor unit Weight | Kg | 8/28, | 10/35, | 14/48, | 17/55, | ||||||||||||||||||||
| Outdoor Unit Net Dimension | mm | 640*240*490 | 710*260*540 | 780*260*540 | 810*285*640 | ||||||||||||||||||||
| Outdoor Unit Packing Dimension | mm | 720*310*550 | 790*340*600 | 860*340*600 | 910*390*710 | ||||||||||||||||||||
| Indoor unit Net Dimension | mm | 680*188*245 | 790*187*270 | 900*220*302 | 1020*215*320 | ||||||||||||||||||||
| Indoor unit Packing Dimension | mm | 745*253*305 | 875*285*345 | 970*285*370 | 1100*290*390 | ||||||||||||||||||||
| Qty ’ per 20’ /40'HQ | set | 135/350 | 120/270 | 110/240 | 70/180 | ||||||||||||||||||||
| Note:All the data in the brochure is only for reference,designs and specifications might be changed without prior notice for; | |||||||||||||||||||||||||
