Quick Details
-
Panel Size:
-
19''
-
Max Resolution:
-
1280x1024
-
Size:
-
optional
-
Color:
-
See picture (or according to customer's order)
-
Touch technology:
-
Infrared
-
Display:
-
TFT LCD
-
Certificate:
-
CE&FCC&RoHS
-
Key words:
-
fingerprint system kiosk
-
Brightness:
-
450cd/m2
-
Resolution:
-
1280*1024
-
Warranty:
-
1 Year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Netoptouch
-
Model Number:
-
NT-8805
-
Panel Size:
-
19''
-
Max Resolution:
-
1280x1024
-
Size:
-
optional
-
Color:
-
See picture (or according to customer's order)
-
Touch technology:
-
Infrared
-
Display:
-
TFT LCD
-
Certificate:
-
CE&FCC&RoHS
-
Key words:
-
fingerprint system kiosk
-
Brightness:
-
450cd/m2
-
Resolution:
-
1280*1024
-
Warranty:
-
1 Year

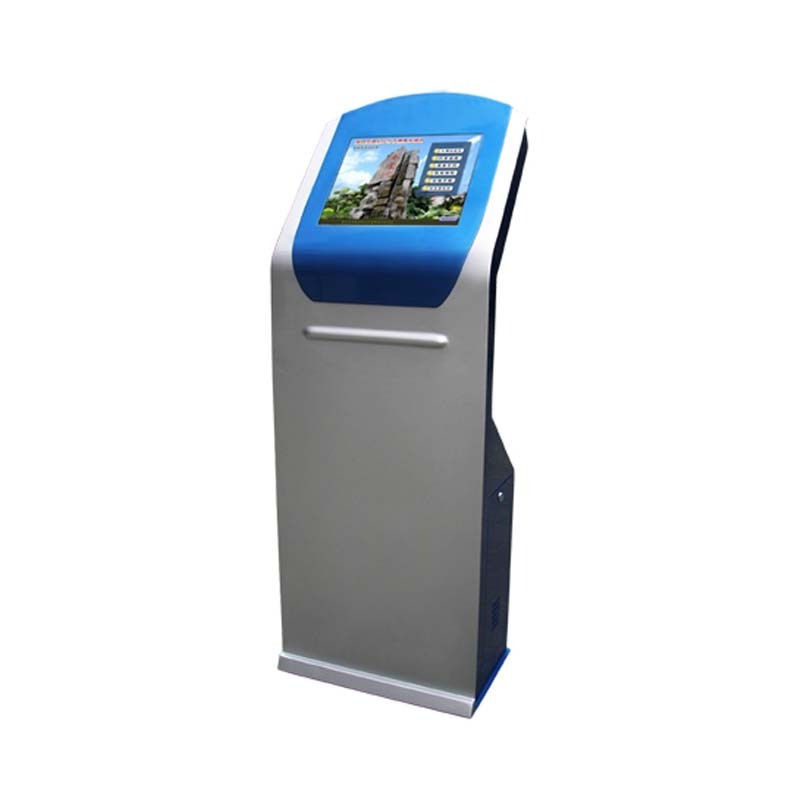

Self-service fingerprint attendance system kiosk, touch screen kiosk
This fingerprint attendance system using the latest biometrics, built-in high-speed fingerprint recognition engine, as long as at a touch can sign in fingers, put an end to the behavior of the first occurred, can manage all kinds of complicated duty time, the application of the size of the unit, the enterprise and the company's human resources management needs.
|
LCD |
Panel size |
19 inch real color LCD screen |
|
LCD |
TFT Display |
|
|
Max Resolution |
1280*1024 |
|
|
Viewing Angle |
176 degree |
|
|
Hitting life expectancy |
Above 50 000 hours |
|
|
Brightness |
300cd/m2 |
|
|
Contrast Ratio |
1000:1 |
|
|
Number of Color |
16.7m |
|
|
Dot pinch |
0.297 |
|
|
Touch screen |
Touch screen |
Infrared (SAW & Resistive) |
|
material |
Heat temp glass with thickness 3mm |
|
|
Resolution |
4096*4096 |
|
|
Deviation of error |
±1% |
|
|
Responsive time |
5ms |
|
|
Surface hardness |
Moh's hardness rating of 7 |
|
|
Advantage |
a. High-brightness, stable and no drift operation. b. The Infrared and anti-riot/stand up the s crape on the touch screen. c. Seal surface can prevent the dust, liquid damage. d. Fixed the mechanical structure of guarantee the reliability of products and easy of installation. e. Serial interface and thermal power take electricity |
|
|
Enclosure |
Cabinet |
Durable cold rolling steel plate, 1.2mm~1.5mm steel mold. Waterproof Dustproof, anti-acid, anti-rust |
|
Sound system |
Internal magnetic stereo amplifier, 2*2w |
|
|
Heat out put |
Internal 12V fans to achieve better ventilation effect |
|
|
Interface |
RJ45/RJ11 network interface, External USB interface optional |
|
|
Switch |
No need to open the kiosk panel, you may open or shut down the computer via the external rest button |
|
|
PC host |
a. CPU: Intel J1900 CPU b. Storage: 120GB SSD c. RAM: KingMAX 4GB d. Ports: USB ports, RS-232 ports e. Industrial mainboard |
|
|
Working environment |
Temp |
0~45 degree |
|
Relative humidity |
30%~90% |
|
|
Voltage |
220V, 50hz~60hz |
Application
1. Business Organizations: Supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Non-profit Organizations: Telecommunications, post offices, hospital, schools
4. Public Places: Subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;
5. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers
6. Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
Following are some photos of our latest self payment kiosk:
Packaging & Shipping:
We offer all kinds of logistics methods in favor of our world wide clients. S hipping from Shenzhen to each corner of the world by sea, airlines to the nearest seaport, or combined sea+land directly to your facility.
We also have good relationship with major courier companies DHL, TNT, Fedex, UPS which enables us to deliver our products quickly and safely to your hand.
