Quick Details
-
Model Number:
-
KCD1-101W-2-1
-
Max. Current:
-
20A
-
Mechanical Life:
-
10000 Cycles
-
Product Name:
-
Rocker Switch
-
Fit for:
-
Car/automobile/motorcycle/marine System
-
IP Rating:
-
IP65
-
Material:
-
Plastic
-
Function:
-
Momentary/ Latching
-
Terminal type:
-
3 Pin Terminals
-
Housing color:
-
white
-
Lamp color & voltage:
-
None
-
Electrical Life:
-
10000 Cycles
-
Product type:
-
Rocker switch
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
KCD1-101W-2-1
-
Max. Current:
-
20A
-
Mechanical Life:
-
10000 Cycles
-
Product Name:
-
Rocker Switch
-
Fit for:
-
Car/automobile/motorcycle/marine System
-
IP Rating:
-
IP65
-
Material:
-
Plastic
-
Function:
-
Momentary/ Latching
-
Terminal type:
-
3 Pin Terminals
-
Housing color:
-
white
-
Lamp color & voltage:
-
None
-
Electrical Life:
-
10000 Cycles
-
Product type:
-
Rocker switch
-
Certification:
-
CE
Products Description

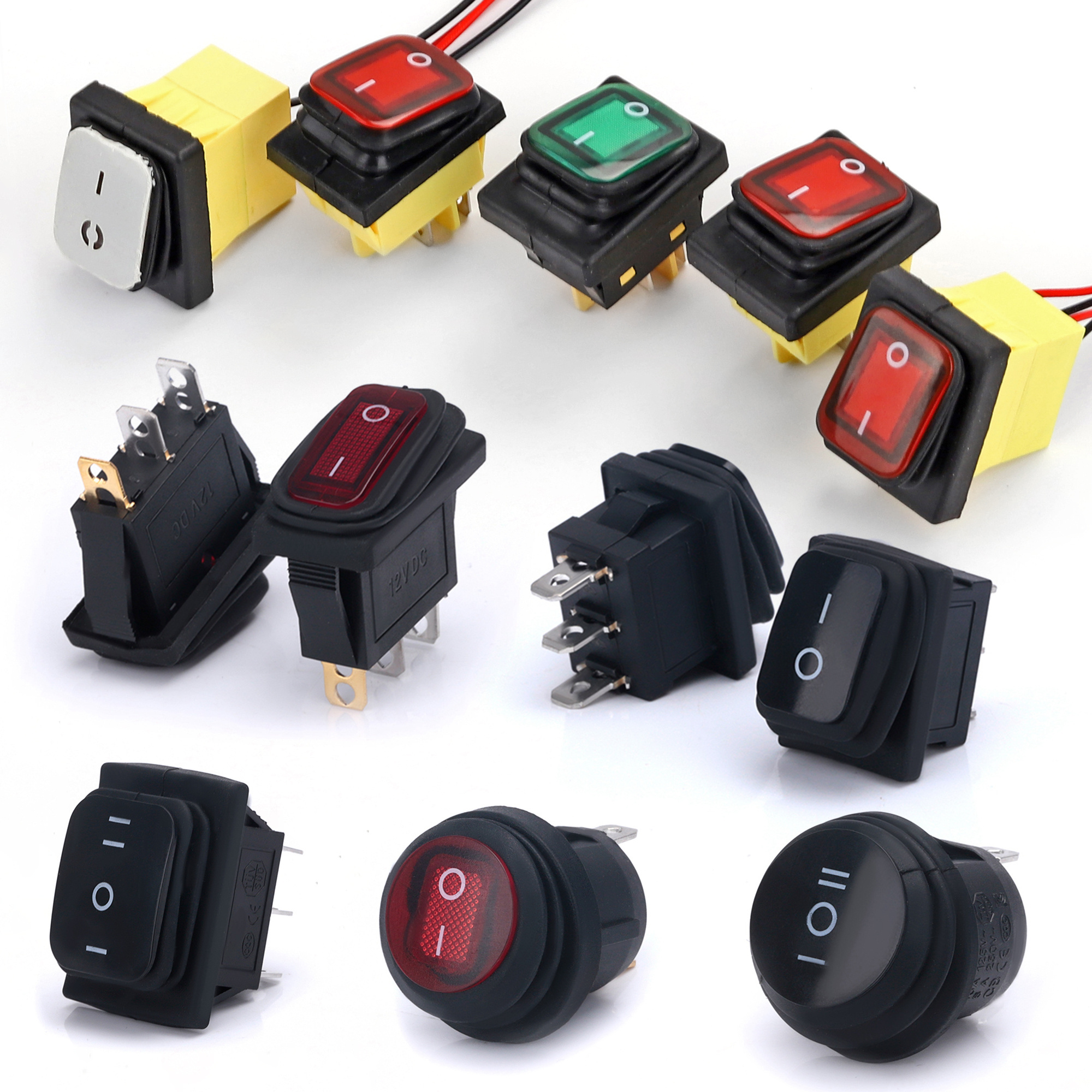

IP68 Waterproof Rocker Switch Illuminated LED 12V 3 pin SPST DPST ON OFF 5V 250V KCD4 3 1 Rocker Switch with Wire
Features:
1. Mounting size from 13.8mm to 35mm long
2. Common Actuator Color: red, green,black
3.Momentary or Latching(self-locking) function available
4.Widely applied to control all kinds of household appliances such as water dispenser, treadmill, coffee potand so on.
How to choose Rocker switch function?
1. OFF-(ON): Push to ON (momentary) function,When you push switch,it will be power ON, and then release your finger, the actuator
will back to the original position.
2. ON-(OFF): Push to OFF (momentary) function,When you push switch,it will be power OFF, and then release your finger, the
actuator will back to the original position.
3. ON-OFF: Latching (Self-locking) function,When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
Note:
1. OFF-(ON): Push to ON (momentary) function,When you push switch,it will be power ON, and then release your finger, the actuator
will back to the original position.
2. ON-(OFF): Push to OFF (momentary) function,When you push switch,it will be power OFF, and then release your finger, the
actuator will back to the original position.
3. ON-OFF: Latching (Self-locking) function,When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
Note:
-Our Rocker switch has different functions, please check our function description on each item before order,thanks!
-size and it slides straight in.This inexpensive rocker switches are always good to have around.
· Widely used for various kinds of electrical products, instrument, car, boat, household appliances such as lights, water dispenser, treadmill, coffee pot, speaker, electric car, motorcycle, TV, massage machine etc
-size and it slides straight in.This inexpensive rocker switches are always good to have around.
· Widely used for various kinds of electrical products, instrument, car, boat, household appliances such as lights, water dispenser, treadmill, coffee pot, speaker, electric car, motorcycle, TV, massage machine etc
|
Product Name
|
Waterproof Rocker Switch
|
|
Enclosure Material
|
Plastic
|
|
Application
|
For Machine,Boat,Electronic appliances
|
|
Contact Resistance
|
35mΩ max
|
|
Insulation Resistance
|
500VDC 100mΩ Min
|
|
Dielectric Intensity
|
1500VAC,1 minute
|
|
Operating Temperature
|
-25°C ~+85°C
|
|
Electrical Life
|
10000 Cycles
|
|
Packing
|
100pcs/Bag
|
|
Order Confirm
|
What’s actuator color?
|
|
What You Get
|
1X Rocker switch
|
