Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
pmsk
-
Voltage:
-
380V/50HZ 3P
-
Power:
-
21KW
-
Dimension(L*W*H):
-
3500X2000X2400
-
Weight (KG):
-
3000
-
Product name:
-
Door Lock Mortising Machine
-
Keywords:
-
Solid Wood Cnc Door Lock Hole Hinge Slot Drilling Machine
-
Door length:
-
1800~2400mm
-
Door width:
-
600~1100mm
-
Door thickness:
-
20~80mm
-
Feed speed:
-
60m/min
-
Vertical spindle:
-
9KW air-cooled Atc spindle
-
Horizontal spindle:
-
7.5 KW air-cooled Atc spindle
-
Hinge hole motor:
-
2.2KW high precision
Quick Details
-
Application:
-
Door Lock Holes and Hinge Holes, Door Lock Drilling Machine, Door Lock Hole Hinge Slot Drilling Machine, Door Lock Mortising Machinery, Furniture solid wood door lock machine
-
Motor Speed:
-
0 - 24000 rpm
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
pmsk
-
Voltage:
-
380V/50HZ 3P
-
Power:
-
21KW
-
Dimension(L*W*H):
-
3500X2000X2400
-
Weight (KG):
-
3000
-
Product name:
-
Door Lock Mortising Machine
-
Keywords:
-
Solid Wood Cnc Door Lock Hole Hinge Slot Drilling Machine
-
Door length:
-
1800~2400mm
-
Door width:
-
600~1100mm
-
Door thickness:
-
20~80mm
-
Feed speed:
-
60m/min
-
Vertical spindle:
-
9KW air-cooled Atc spindle
-
Horizontal spindle:
-
7.5 KW air-cooled Atc spindle
-
Hinge hole motor:
-
2.2KW high precision
Products Description

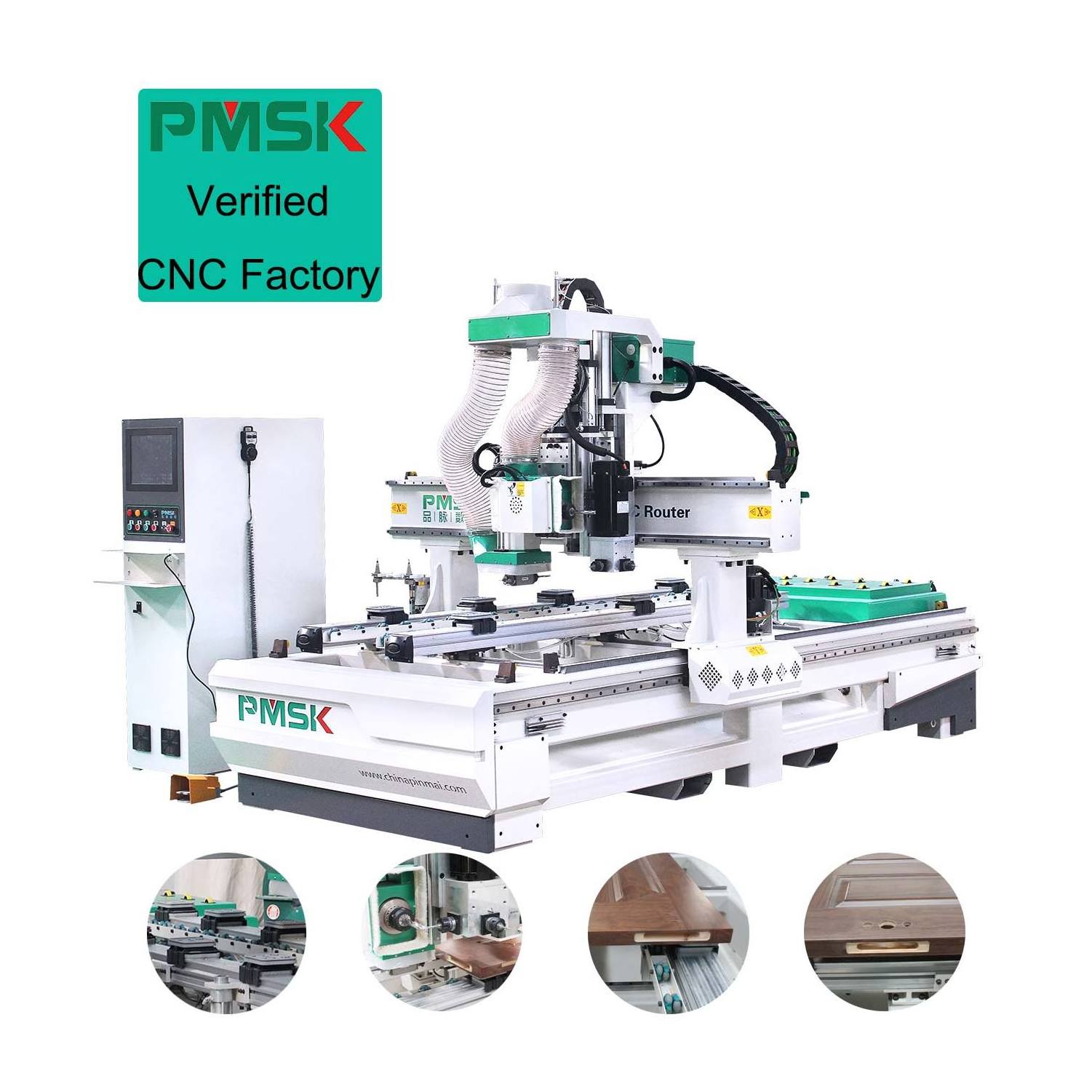

Woodworking Door Lock Mortising Machinery Atc Cnc Router Solid Wood Cnc Door Lock Hole Hinge Slot Drilling Machine for Sale
1, M5.2 CNC wood door lock making machine is mainly used for processing wooden doors, door frames, door locks, door lock steps, hinge holes, craft holes, etc.
2, It can complete various technological processing by one-time feeding and positioning, high processing accuracy
3, The door lock machine is composed of a vertical spindle, a horizontal spindle, a strip worktable, a high-precision four milling head, an auxiliary loading and unloading device, a row-type tool magazine and other mechanical components.
4, The CNC
boring
machine is simple and convenient to operate, and can easily complete the processing of wooden door rules, lock holes, lock grooves, hinge pages, paint holes, and slide grooves.
Product Paramenters
|
Model
|
M5.2 Door Lock Machine
|
Power
|
21kw
|
|
Door length
|
1800-2440mm
|
Vertical spindle
|
9KW air-cooled Atc spindle
|
|
Door width
|
600-1100mm
|
Horizontal spindle
|
7.5 KW air-cooled spindle
|
|
Door thickness
|
20-60mm
|
Hinge hole motor
|
2.2KW high precision
|
|
Pressure
|
0.6MPA
|
Overall size
|
3500*2000*2400mm
|
Details Images
Feature
◆The operation is simple, ordinary workers can get started after simple training, no professional programmers are needed, and the touch screen is convenient for operation.
◆Special door lock control system, multiple door lock shapes, modular operation, suitable for various door types processing.
◆The side keyhole is processed by a high-power electric spindle, which can be cut by gravity with high efficiency.
◆The machine adopts auxiliary loading and unloading device to reduce labor intensity and improve production efficiency.
