Quick Details
-
Type:
-
Food Drying Machine
-
Voltage:
-
380v/220v/415v/customized
-
Power:
-
9kw
-
Weight:
-
540 KG
-
Dimension(L*W*H):
-
1400*1160*2550mm
-
Year:
-
2024
-
Product name:
-

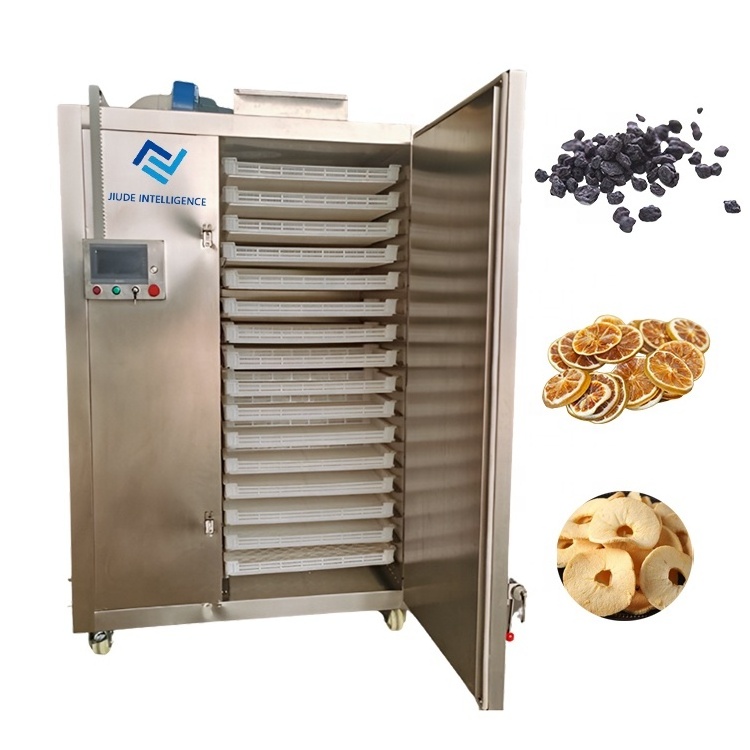

vegetable/fruit/food drying machine
-
Model:
-
JDZN-HX-32
-
Material:
-
Stainless Steel 201/304
-
Circulating fan:
-
0.37kw* 2sets
-
Exhuast fan:
-
0.37kw* 1set
-
Drying tray:
-
32 pcs
-
Electricity heater:
-
9kw
-
Control system:
-
PLC touch screen
-
Application:
-
for drying all kinds of fruit/vegetable/seafood/food/herb/flower etc.
Quick Details
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JDZN
-
Type:
-
Food Drying Machine
-
Voltage:
-
380v/220v/415v/customized
-
Power:
-
9kw
-
Weight:
-
540 KG
-
Dimension(L*W*H):
-
1400*1160*2550mm
-
Year:
-
2024
-
Product name:
-
vegetable/fruit/food drying machine
-
Model:
-
JDZN-HX-32
-
Material:
-
Stainless Steel 201/304
-
Circulating fan:
-
0.37kw* 2sets
-
Exhuast fan:
-
0.37kw* 1set
-
Drying tray:
-
32 pcs
-
Electricity heater:
-
9kw
-
Control system:
-
PLC touch screen
-
Application:
-
for drying all kinds of fruit/vegetable/seafood/food/herb/flower etc.
Products Description
Intelligent PLC control system
Features
1. Most hot air circulates inside the oven, high heat efficiency and energy saving
2. We have fixed air distribution plate inside the oven, which could guarantee the materials could be uniformly dried.
3. Low noise and balance operation, automatic temperature control, easy installation and maintenance, adjustable drying time, compact structure.
Four core advantages
Machine structure&details
Machine details display
Wear-resistant universal wheel
High pressure
sealing hinge
Stainless steel sealed door lock
Thickened
insulation layer
Top stainless steel 201
Intelligent
display screen
Product Paramenters
|
Model
|
JDZN-HX-32
|
|
Size
|
1.4×1.1×2.3 (M)
|
|
Circulating fan
|
0.37kw* 2sets
|
|
Dehumidification fan
|
0.37kw* 1set
|
|
Electricity heater
|
9kw
|
|
Temperature range
|
Room temperature to 85℃
|
|
Tray
|
Quantity: 32pcs
Size: 745*435*75mm |
|
Dryer chamber
|
Material SUS201
|
|
Processing capacity
|
About 80-150kg/batch
|
Application material
①Vegetables such as dried cabbage, cassava, Chinese yam, peppers, mushrooms, day lily, edible fungi, grains, seeds, etc.
② Dried fruit, tobacco, tea, sausage, bacon, peanuts, melon seeds, candy, jujube, dried noodles, rice noodles, yuba, etc.
③ Seafood such as sea cucumber, sea fish, sea shrimp, abalone, etc.
④ Chinese herb such as Panax notoginseng, wolfberry, codonopsis, mangosteen, honeysuckle, sand ginger, etc.
⑤Wood, bamboo, coal slime, Buddhist incense, coiled incense, textiles, leather, ceramics, electroplating industry, etc.;
② Dried fruit, tobacco, tea, sausage, bacon, peanuts, melon seeds, candy, jujube, dried noodles, rice noodles, yuba, etc.
③ Seafood such as sea cucumber, sea fish, sea shrimp, abalone, etc.
④ Chinese herb such as Panax notoginseng, wolfberry, codonopsis, mangosteen, honeysuckle, sand ginger, etc.
⑤Wood, bamboo, coal slime, Buddhist incense, coiled incense, textiles, leather, ceramics, electroplating industry, etc.;
